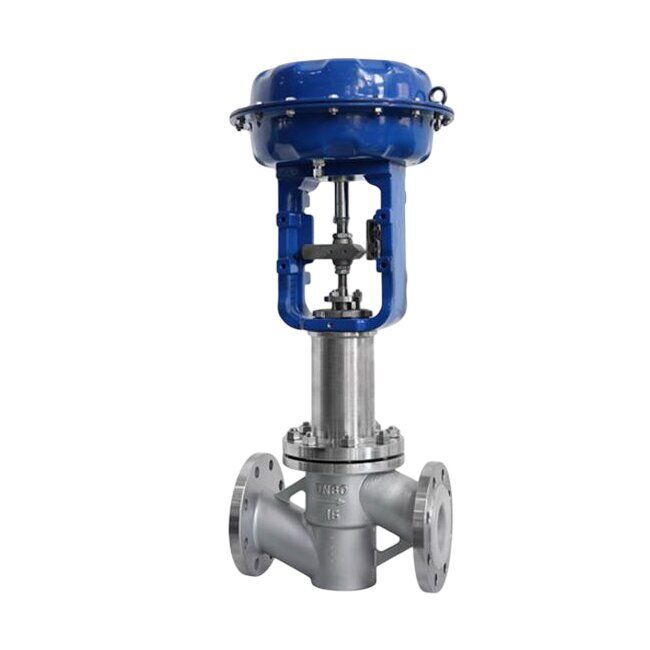

Acid Resistant Control Valve, 1/2-8 Inch, 150 LB, Pneumatic

Compliant with TA-LUFT/ISO 15848-1/API 624
(API 624 Additional High Temperature Version)

Key Specifications / Features

Our Acid Resistant Control Valve is designed to deliver reliable performance in corrosive environments. Available in sizes ranging from 1/2 to 8 inches and with a Class 150 LB rating, it is constructed from materials such as ASTM A216 WCB, A351 CF3, CF3M, CF8, CF8M, F46, ensuring robust resistance to acids and harsh chemicals. The valve is lined with PFA or PTFE for superior corrosion protection, offering low leakage and consistent operation. It features pneumatic actuation, making it ideal for precise flow control.

Model no.: MV-20250410-LECV-01
Hits: 0
Categories: Low Emission Control Valves
Tags: Acid Resistant Control Valve, Pneumatic Control Valve, ASTM A216 WCB Control Valve

Request a quote

Detail Information

Product Name: Acid Resistant Control Valve
Bonnet Type: Standard, Bellows
Size Range: 1/2-8 Inch (DN15-DN200)
Pressure Rating: Class 150 LB (PN10-PN16)
Body Material: ASTM A216 WCB, A351 CF3, CF3M, CF8, CF8M, ect.
Lined Material: F46, PFA, PTFE
Temperature Range: -40°C to 200°C
Seat Leakage: ANSI IV (0.01%) or VI (bubble-tight)
Operation: Pneumatic or Electric Actuator

Features

Compact Design: Made with a pressure-unbalanced trim and bonnet-top-guided trim, offering lean volume and a simple structure.
High Precision: Provides high adjusting precision for improved control and performance.
Reliable Sealing: Features excellent valve seat sealing performance, ensuring reliable operation.
Corrosion Resistance: Components in contact with the medium are treated with high-pressure injection and lined with corrosion-resistant and anti-aging FEP (F46).
Chemical Compatibility: Resists strong corrosive mediums like hydrochloric acid, sulfuric acid, hydrofluoric acid, and alkaline substances.
Sealing Technology: Uses PTFE corrugated pipe sealing for enhanced reliability.
Versatile Application: Suitable for handling strong acids, strong alkalis, highly volatile, and easily permeable mediums. Widely used in industrial automation systems in chemical, petroleum, metallurgy, pharmaceutical, and textile industries.
