(API 624 Additional High Temperature Version)
Key Specifications / Features

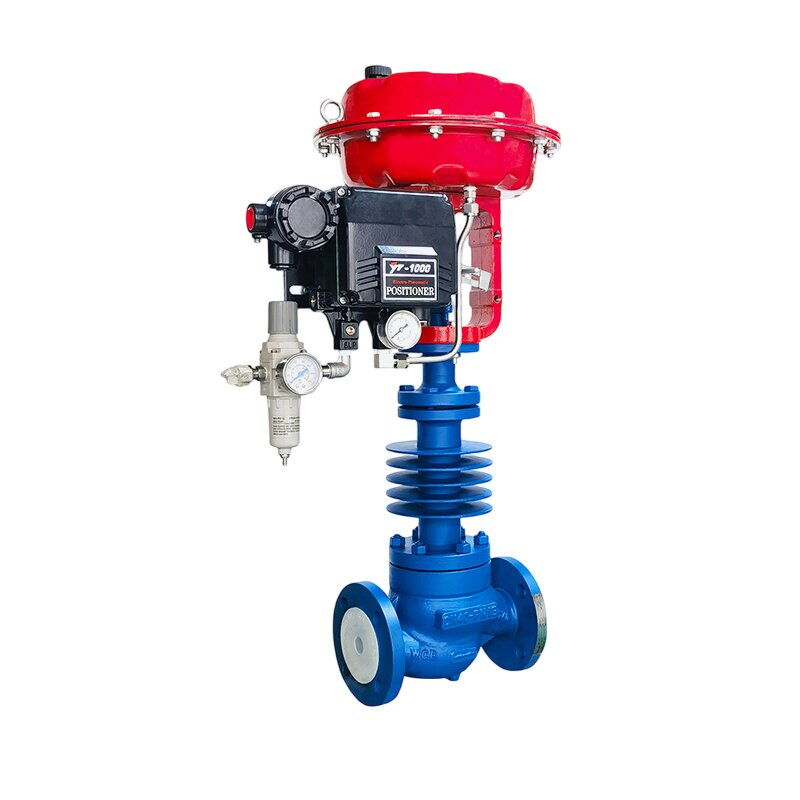

The Bellows Sealed Control Valve features a fluorine-lined body for enhanced corrosion resistance, coupled with an ASTM A216 WCB construction for strength and durability. With a DN40 (1-1/2 inch) size, Class 150 LB pressure rating, and PN16 compatibility, this valve ensures reliable performance in demanding applications. The low emission design minimizes leakage, while the pneumatic diaphragm actuator provides precise and efficient flow control.
- Model no.: MV-20250403-LECV-02
- Hits: 0
- Categories: Low Emission Control Valves
- Tags: Fluorine-lined Control Valve, Bellows Sealed Control Valve, ASTM A216 WCB Control Valve
Detail Information
Product Name: Bellows Sealed Control Valve, Fluorine-lined
Body Material: ASTM A216 WCB
Size: DN40, 1-1/2 Inch
Pressure: PN16, Class 150 LB
End: RF Flanged
Operation: Pneumatic Diaphragm Actuator
Technical Specification
Nominal Diameter (DN): DN15–DN400
Working Pressure (W.P): PN16–PN100
Working Temperature (W.T): -20°C to 425°C
Body Material: ASTM A216 WCB, A351 CF8/CF8M
Seat Leakage Class: ANSI Class IV, ANSI Class VI
Actuator: Pneumatic, Electric Motor
Features: Investment casting, Automation accessories
Applications: Petroleum, Chemical, Natural Gas, Biochemical, Pharmaceutical, Environmental Protection, New Energy
