Key Specifications / Features

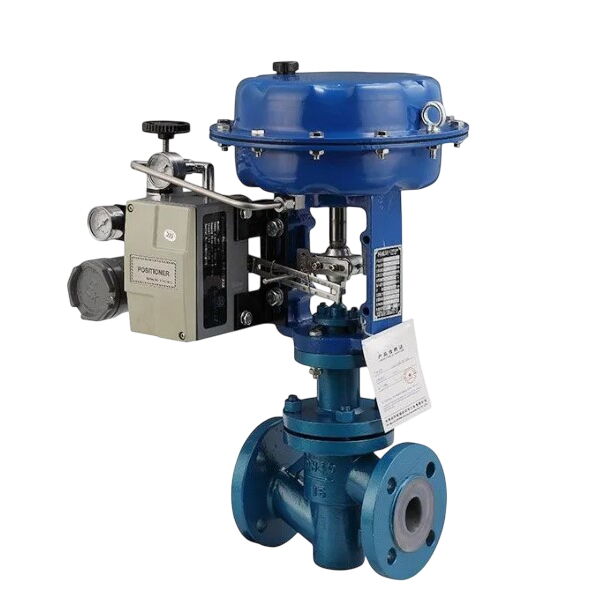

The China Fluorine-lined Control Valve Factory offers a high-performance control valve with an ASTM A216 WCB carbon steel body, providing durability and reliability. The valve has a DN40 (1-1/2 inch) size and a PN16 (Pressure Class 150 LB) rating, making it suitable for moderate-pressure applications. It features RF flanged ends for easy installation and integration into existing systems. The pneumatic actuation ensures precise control and efficient operation. This valve is ideal for industrial processes requiring corrosion resistance and reliable performance.
- Model No.: MV-20250623-LECV-02
- Hits: 3
- Categories: Low Emission Control Valves
- Tags: Pneumatic Control Valve, ASTM A216 WCB Control Valve, Fluorine-lined Control Valve
Detail Information
Product Name: Fluorine-lined Control Valve
Body Material: ASTM A216 WCB
Lining Material: Fluorine (PTFE, PEP)
Size: DN40, 1-1/2 Inch
Pressure: PN16, Class 150 LB
End Connection: RF Flanged
Operation: Pneumatic Actuator
Flow Characteristics: Linear, Equal Percentage
Product Range
Size Range: DN20-DN300 (3/4-12 Inch)
Pressure Rating: Class 150-400 LB (PN16, PN40, PN64)
Body Material: ASTM A216 WCB, WCC, ASTM A351 CF3, CF8
Packing Material: Graphite, PTFE
Seat Leakage: as per ANSI B16.104
End Connections: RF, FF, RTJ
Medium: Air, Water, Oil, Steam, etc.
Temperature Range: -30°C to 70°C
