(API 624 Additional High Temperature Version)
Key Specifications / Features

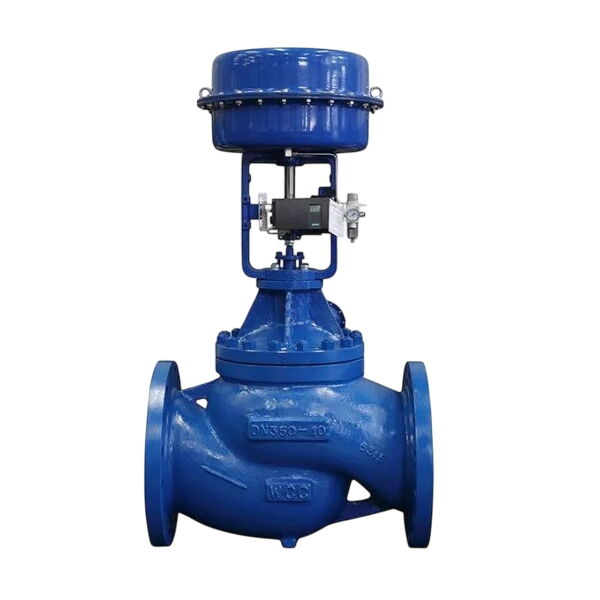

The China ASTM A216 WCC Control Valve is a high-quality industrial control valve designed for demanding applications. It features a robust carbon steel body, ensuring durability and reliability. The valve has a DN350 (14-inch) size and a PN40 (Class 300 LB) pressure rating, making it suitable for high-pressure environments. Its RF flanged ends facilitate easy installation and maintenance. The multi-spring diaphragm pneumatic actuator provides precise control and efficient operation.
- Model No.: MV-20250623-LECV-01
- Hits: 0
- Categories: Low Emission Control Valves
- Tags: ASTM A216 WCC Control Valve, Pneumatic Control Valve, Carbon Steel Control Valve
Detail Information
Product Name: ASTM A216 WCC Control Valve
Body Material: ASTM A216 WCC
Size: DN350, 14 Inch
Pressure: PN40, Class 300 LB
End Connection: RF Flanged
Operation: Pneumatic Actuator (Multi-Spring Diaphragm Type, 4-20mA)
Flow Characteristics: Linear, Equal Percentage
Product Range
Size Range: DN20-DN600 (3/4-24 Inch)
Pressure Rating: Class 150-400 LB (PN16, PN40, PN64)
Body Material: ASTM A216 WCB, WCC, ASTM A351 CF3, CF8
Packing Material: Graphite, PTFE
Seat Leakage: ANSI B16.104 Class
End Connections: RF, FF, RTJ
Medium: Air, Water, Oil, Steam, etc.
Temperature Range: -30°C to 70°C
