(API 624 Additional High Temperature Version)
Key Specifications / Features
The Electric Actuated Ball Valve Plant offers a range of high-quality ball valves designed to meet stringent industry standards such as API 6D, API 608, and ISO 17292. These valves are constructed from durable carbon steel, ensuring robustness and reliability in demanding industrial applications. Available in sizes ranging from DN15 to DN300 and pressure ratings of PN16 and PN25, they are equipped with explosion-proof electric actuators, making them ideal for hazardous environments.
- Model No.: MV-20250703-LECV-01
- Hits: 4
- Categories: Low Emission Control Valves
- Tags: Carbon Steel Ball Valve, API 608 Ball Valve, API 6D Ball Valve
Detail Information

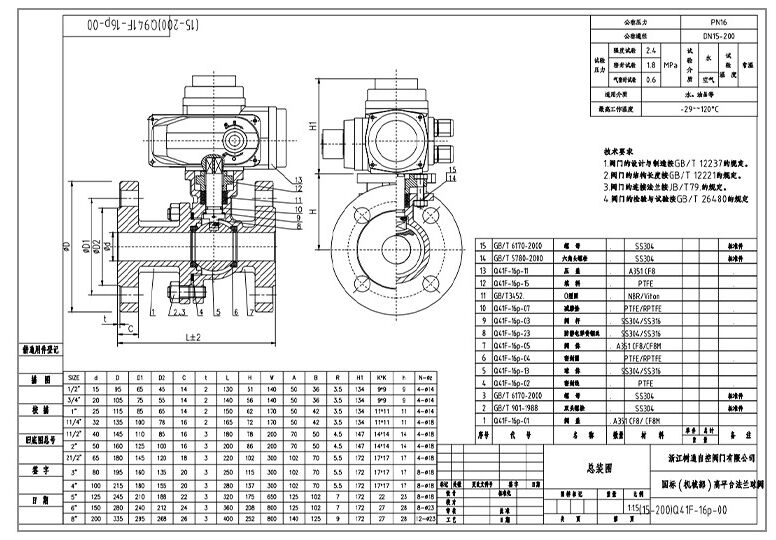

Product Name: Explosion-proof Electric Actuated Ball Valves
Valve Body Material: Carbon Steel, Cast Steel
Rated Diameter: DN15-DN300, 1/2-12 Inch
Rated Pressure: 1.6MPA, 2.5MPA, PN16, PN25, Class 150, 300 LB
Design Standard: API 6D, API 608, ISO 17292, GB/T 12237
Pressure Temperature Rating: ASME B16.34
Structural Length: ASME B16.10
Inspection and Testing: API 598
Actuator: Electric Actuator
Connection Method: Flanged
Flange Standard: Machinery Department, Chemical Industry Department, German Standard, American Standard, Japanese Standard
Electric Actuator Specifications
Medium Temperature: -10°C to 100°C (PTFE ), -20°C to 250°C (POB)
Available Voltage: AC 220V, AC 380V, AC 110V, AC 24V, DC 24V, DC 48V, DC 220V, and others available
Protection Level: IP65, IP66, IP67, IP68
Explosion-proof Level: EX DII BT4, EX DII CT4
Control Method: Sourceless Switch Type, Modulating Type, Intelligent Type
Operating Range: 0-90°, 0-180°
Ambient Temperature: -10°C to 60°C and others available
