(API 624 Additional High Temperature Version)
Key Specifications / Features

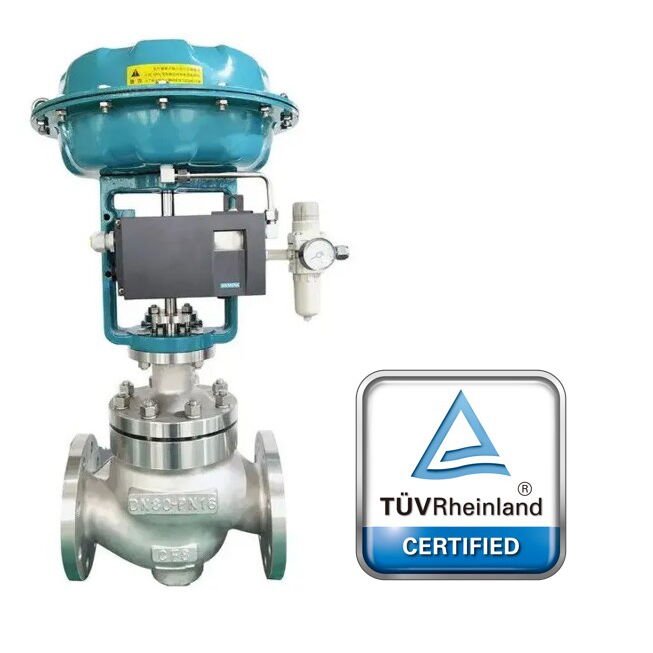

The Single Seated Control Valve features an ASTM A351 CF8 stainless steel body, designed for precise flow regulation in various industrial applications. With a DN80 (3-inch) size, Class 150 LB pressure rating, and PN16 compatibility, this valve ensures robust performance and durability. Equipped with a pneumatic diaphragm actuator, it offers reliable and efficient control. The low leakage design and RF (Raised Face) flanged connections provide secure sealing and easy installation.
- Model no.: MV-20250403-LECV-01
- Hits: 6
- Categories: Low Emission Control Valves
- Tags: Single Seated Control Valve, Pneumatic Control Valve, ASTM A351 CF8 Control Valve
Detail Information
Product Name: Pneumatic Diaphragm Single Seated Control Valve
Body Material: ASTM A351 CF8
Size: DN80, 3 Inch
Pressure: PN16, Class 150 LB
End: RF Flanged
Operation: Pneumatic Diaphragm Actuator
Technical Specification
Nominal Diameter (DN): DN20–DN400
Working Pressure (W.P): PN16-PN100
Working Temperature (W.T): -20°C to 425°C
Body Material: ASTM A216 WCB, A351 CF8/CF8M
Seat Leakage Class: ANSI Class IV, ANSI Class VI
Features: Investment casting, Automation accessories
Applications: Petroleum, Chemical, Natural Gas, Biochemical, Pharmaceutical, Environmental Protection, New Energy
