(API 624 Additional High Temperature Version)
Key Specifications / Features

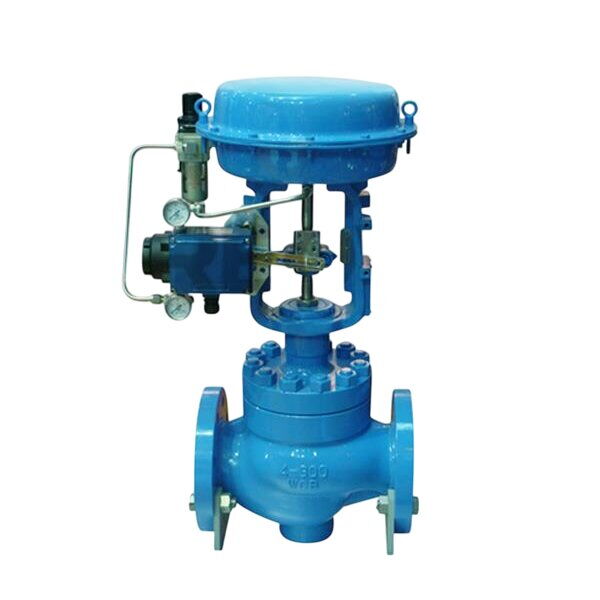

The Multi-stage Cage Guided Control Valve features an ASTM A216 WCB body with a 4-inch (DN100) size and Class 300 LB rating. Designed for reliable performance, it offers low leakage and includes RF flanged ends for secure installation. Rated for PN50 pressure, this valve is equipped with a pneumatic actuator, providing precise flow control in various industrial applications.
- Model no.: MV-20250408-LECV-01
- Hits: 1
- Categories: Low Emission Control Valves
- Tags: ASTM A216 WCB Control Valve, Cage Guided Control Valve, Multi-stage Control Valve
Detail Information
Product Name: Multi-stage Cage Guided Control Valve
Features: Cage-guided, Multi-stage Pressure-reducing Trim
Body Material: ASTM A216 WCB
Size: 4 Inch, DN100
Pressure: Class 300 LB, PN50
End: RF Flanged
Operation: Pneumatic Actuator
Product Range
Size: 1-1/2 - 24 Inch (DN40-DN600)
Pressure Rating: Class 150-2500 LB (PN16-PN420)
Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel
Seat Leakage: ANSI Class IV (0.01%) or Class VI (bubble-tight)
Bonnet Type: Standard, Bellows, Steam Jacket
Temperature Range: -196°C to 540°C
Features
Fluid pressure-balanced trim for stable control performance
Multi-stage pressure-reducing trim design tailored to various flow characteristics
Effectively reduces noise and cavitation from high differential pressure fluids
Enhances dynamic stability in demanding process conditions
Economical solution for applications requiring low noise and low cavitation
