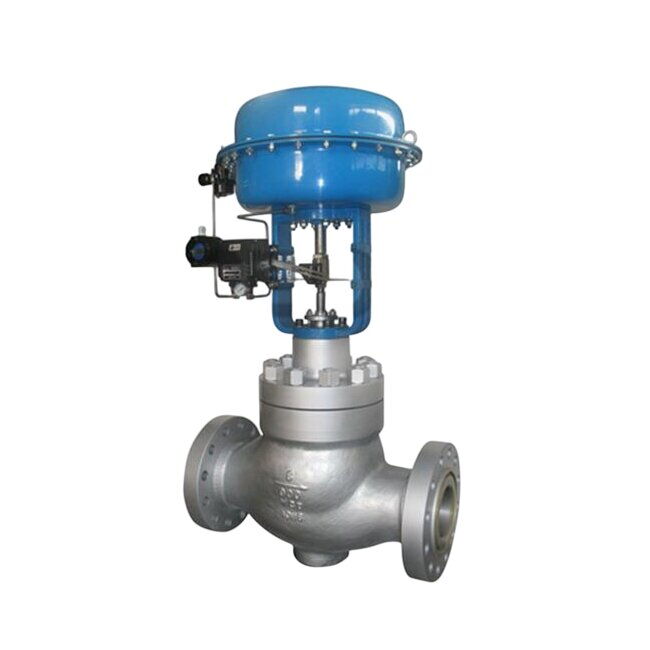

High Pressure Control Valve, CS, SS, 1.5-12 Inch, CL900-2500

Product Name: High Pressure Control Valve
Features: Loise Noise, Cage Guided
Size: 1-1/2 Inch - 12 Inch (DN40-DN300)
Pressure Rating: Class 900-2500 LB (PN160-PN420)
Body Material: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M, etc.
Temperature Range: -196°C to +230°C
Seat Leakage: ANSI Class IV (≤0.01%) or Class VI (Bubble-tight)
Bonnet Type: Standard, Finned Extension
Actuator Type: Pneumatic, Electric

Description

This valve uses a pressure-balanced spool design to improve control performance. Compared to the Model 60T, it offers better regulation and includes features like:
Noise reduction to ensure quieter operation
Anti-erosion design to resist wear from fluid flow
Anti-cavitation to protect the valve from damage caused by pressure changes
The valve has a double-guided trim that includes an integrated cage and a balanced sealing ring. This setup helps keep the valve stable during operation and allows it to handle higher pressure differences more effectively.
Designed as a simple cage-guided control valve, it reduces both pressure and noise. The modular trim design also makes it easy to replace internal parts when needed.
