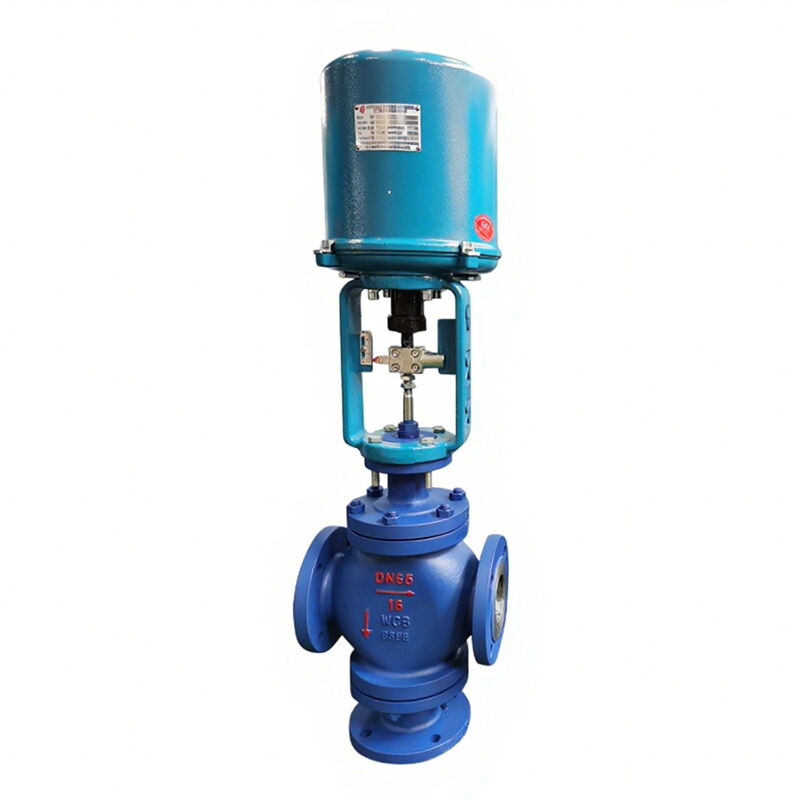

Electric Double Seated Control Valve, 3-way, WCB, DN65, PN16

Compliant with TA-LUFT/ISO 15848-1/API 624
(API 624 Additional High Temperature Version)

Key Specifications / Features

The Electric Double Seated Control Valve features a three-way control valve with an ASTM A216 WCB carbon steel body, ensuring durability and strength. It has a DN65 (2-1/2 inch) nominal diameter and a PN16 (Class 150 LB) pressure rating, suitable for various industrial applications. The valve is equipped with RF flanged connections, providing a reliable and leak-free seal. Its electric actuation offers precise control and ease of operation, making it ideal for complex flow management systems.

Model No.: MV-20250616-LECV-01
Hits: 1
Categories: Low Emission Control Valves
Tags: Electric Control Valve, Double Seated Control Valve, 3-Way Control Valve

Request a quote

Detail Information

Product Name: Electric Double Seated Control Valve, Three-way
Body Material: ASTM A216 WCB
Size: DN65, 2-1/2 Inch
Pressure: PN16, Class 150 LB
End Connection: RF Flanged
Operation: Electric Actuator
Flow Characteristics: Linear, Equal Percentage

Product Range

Size Range: DN20-DN300 (3/4-12 Inch)
Pressure Rating: Class 150 LB, 300 LB, 400 LB (PN16, PN40, PN64)
Body Material: Carbon, Stainless, Alloy Steel, ASTM A216 WCB, A351 CF3/CF3M, CF8/CF8M
Packing Material: Graphite, PTFE
Seat Leakage: according to ANSI B16.104
Temperature Range: -100°C to 500°C
Operation: Electric Actuator (AC 220V, 4-20mA, 0-10mA)
End Connections: Flanged (RF, FF, RTJ), Welded (SW, BW)
Application: Chemical, Petroleum, Power Station, Light Textile, Papermaking, Pharmaceutical, etc.
