Key Specifications / Features

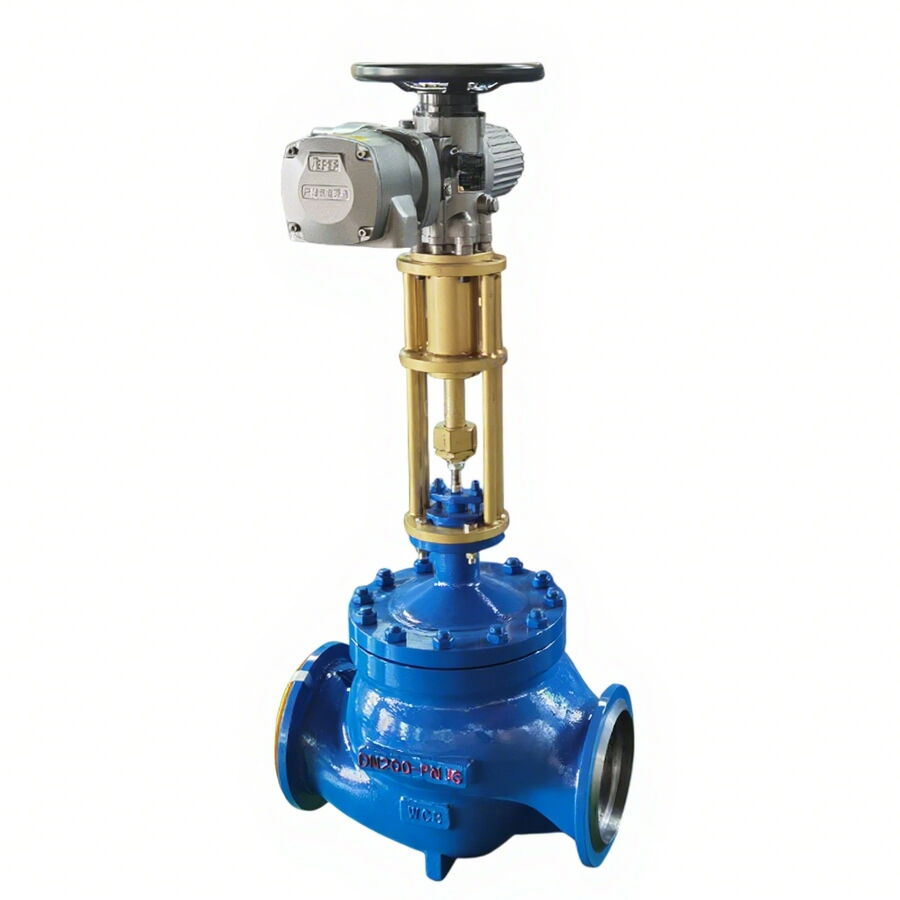

Our balanced trim control valve factory specializes in producing high-quality, cage-guided control valves with carbon steel ASTM A216 WCB bodies. These valves are designed for precise flow control and feature a balanced trim to minimize actuator effort and enhance stability. Available in DN200 (8-inch) size and PN16 (Class 150 LB) pressure rating, they are equipped with electric actuators for reliable and efficient operation. The robust construction and advanced design make these valves ideal for a variety of industrial applications requiring precise control and durability.
- Model No.: MV-20250613-LECV-02
- Hits: 0
- Categories: Low Emission Control Valves
- Tags: Balanced Trim Control Valve, Electric Control Valve, ASTM A216 WCB Control Valve
Detail Information
Product Name: Balanced Trim Control Valve, Cage Guided
Body Material: ASTM A216 WCB
Size: DN200, 8 Inch
Pressure: PN16, Class 150 LB
End Connection: RF Flanged
Operation: Electric Actuator
Flow Characteristics: Linear, Equal Percentage
Inherent Rangeability: 30:1
Product Range
Size Range: DN25-DN200 (1-8 Inch)
Pressure Rating: Class 150 LB, 300 LB, 400 LB (PN16, PN40, PN64)
Body Material: Carbon, Stainless, Alloy Steel, ASTM A216 WCB, A351 CF3/CF3M, CF8/CF8M
Packing Material: Graphite, PTFE
Seat Leakage: according to ANSI B16.104
Temperature Range: -40°C to 450°C
Operation: Electric Actuator (220V, 50-60Hz, 4-20mA DC)
End Connections: RF, FF, RTJ, SW, BW
Medium: Water, Steam, Air, Oil, etc
