(API 624 Additional High Temperature Version)
Key Specifications / Features

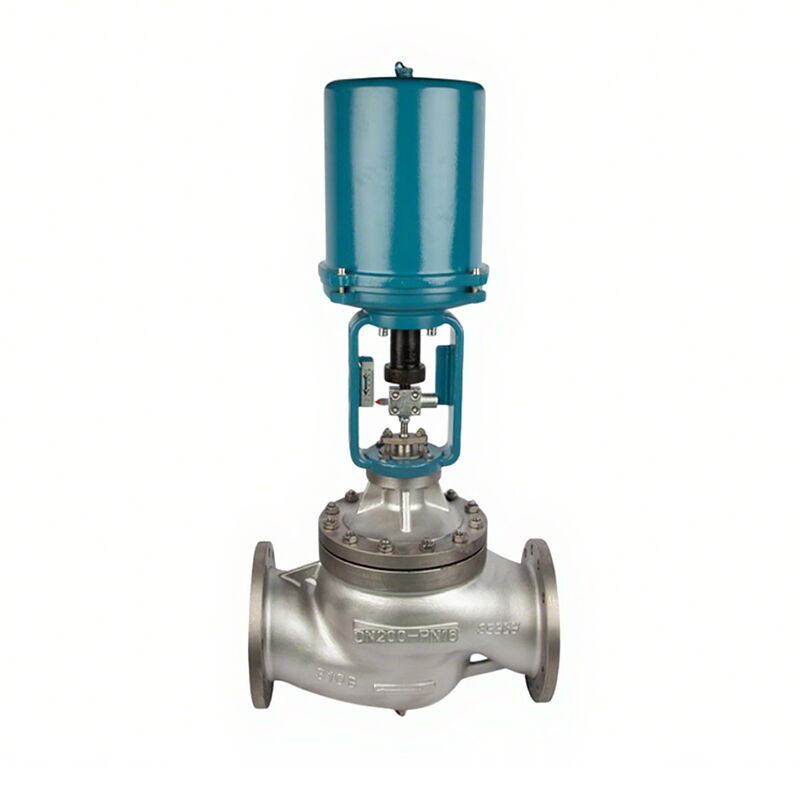

The Stainless Steel Electric Control Valve from our plant is designed for large-scale industrial applications, featuring a large diameter of DN200 (4 inches) and a PN16 (Class 150 LB) pressure rating. Constructed with ASTM A351 CF3 and A351 CF8 bodies, this valve offers excellent corrosion resistance and durability. The raised face (RF) flanged ends ensure secure and reliable connections. This valve is ideal for precise flow control in demanding environments, providing efficient and safe operation.
- Model No.: MV-20250618-LECV-02
- Hits: 3
- Categories: Low Emission Control Valves
- Tags: Stainless Steel Control Valve, Electric Control Valve, DN200 Control Valve
Detail Information
Product Name: Stainless Steel Electric Control Valve
Body Material: Stainless Steel (ASTM A351 CF3, CF8)
Size: DN200, 4 Inch
Pressure: PN16, Class 150 LB
End Connection: RF Flanged
Operation: Electric Actuator
Flow Characteristics: Linear, Equal Percentage
Product Range
Size Range: DN20-DN300 (3/4-12 Inch)
Pressure Rating: Class 150 LB, 300 LB, 400 LB (PN16, PN25, PN40, PN64)
Body Material: ASTM A351 CF3, A351 CF3M, A351 CF8, A351 CF8M
Packing Material: Graphite, PTFE
Seat Leakage: according to ANSI B16.104
Operation: Electric Actuator (AC 220V, 4-20mA DC)
End Connections: RF, FF, RTJ Flanged
Application: Water Treatment, Chemical, Petroleum,etc.
