(API 624 Additional High Temperature Version)
Key Specifications / Features

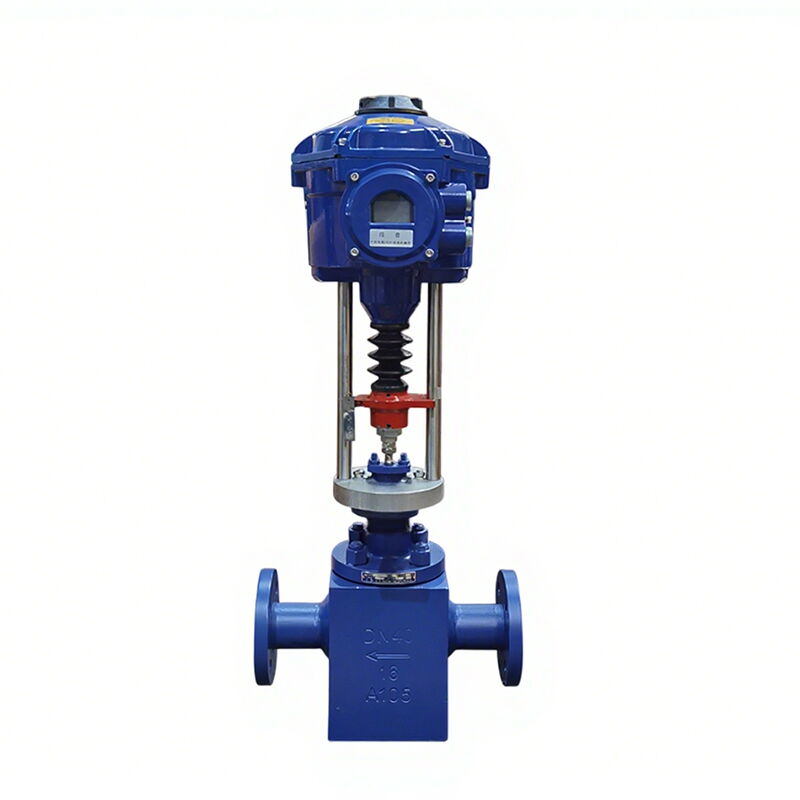

The Explosion-proof Electric Control Valve is a robust solution for critical industrial applications. It features a forged carbon steel ASTM A105 body, ensuring durability and reliability. With a DN40 (1-1/2 inch) diameter and a PN16 (Class 150 LB) pressure rating, this valve is designed for high-pressure environments. Its flanged ends facilitate easy installation and maintenance. The square body design enhances structural integrity, while the explosion-proof electric control mechanism ensures safe operation in hazardous areas.
- Model No.: MV-20250618-LECV-01
- Hits: 2
- Categories: Low Emission Control Valves
- Tags: Electric Control Valve, Explosion-proof Control Valve, ASTM A105 Control Valve
Detail Information
Product Name: Explosion-proof Electric High-pressure Control Valve
Body Material: ASTM A105
Size: DN40, 1-1/2 Inch
Pressure: PN16, Class 150 LB
End Connection: Flanged
Operation: Explosion-proof Electric Actuator
Flow Characteristics: Linear, Equal Percentage
Product Range
Size Range: DN20-DN300 (3/4-12 Inch)
Pressure Rating: Class 150 LB, 300 LB, 400 LB (PN16, PN25, PN40, PN64)
Body Material: ASTM A105, A105N, ASTM A216 WCB, A351 CF3/CF3M, CF8/CF8M
Packing Material: Graphite, PTFE
Seat Leakage: according to ANSI B16.104
Operation: Electric Actuator (AC 220V, 4-20mA DC)
End Connections: Flanged (RF, FF, RTJ), Welded (SW, BW)
Application: Chemical, Petroleum, Power Station, etc.
