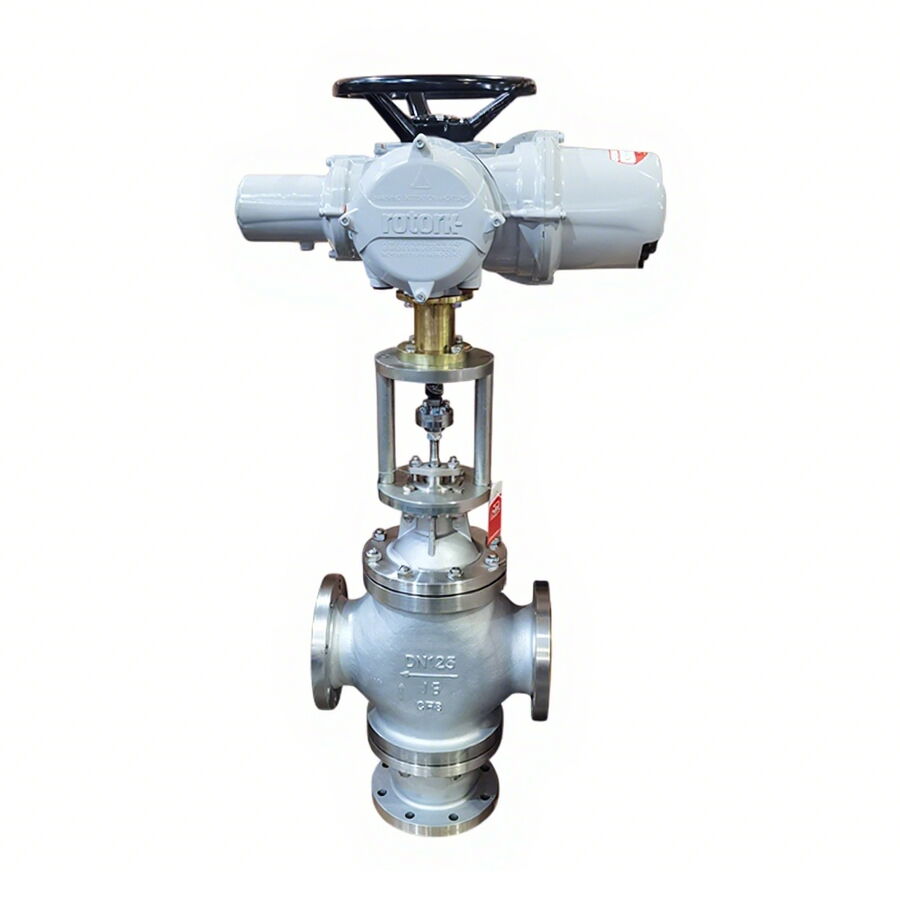

3-way Converging Control Valve, CF8, DN125, PN16, Electric

Compliant with TA-LUFT/ISO 15848-1/API 624
(API 624 Additional High Temperature Version)

Key Specifications / Features

The 3-way Converging Control Valve from this supplier features an ASTM A351 CF8 stainless steel body, offering excellent corrosion resistance and durability. With a DN125 (5 inch) nominal diameter and a PN16 (Class 150 LB) pressure rating, it is designed for reliable performance in various industrial applications. The valve has RF flanged ends for secure and leak-free connections. Equipped with an electric actuator, it provides precise control and easy operation.

Model No.: MV-20250616-LECV-03
Hits: 20
Categories: Low Emission Control Valves
Tags: Converging Control Valve, ASTM A351 CF8 Control Valve, 3-Way Control Valve

Request a quote

Detail Information

Product Name: Converging Type 3-way Control Valve
Body Material: ASTM A351 CF8
Size: DN125, 5 Inch
Pressure: PN16, Class 150 LB
End Connection: RF Flanged
Operation: Electric Actuator
Flow Characteristics: Linear, Equal Percentage
Rangeability: 30:1

Product Range

Size Range: DN25-DN300 (1-12 Inch)
Pressure Rating: Class 150 LB, 300 LB, 400 LB (PN16, PN40, PN64)
Body Material: Carbon, Stainless, Alloy Steel, ASTM A216 WCB, A351 CF3/CF3M, CF8/CF8M
Packing Material: Graphite, PTFE
Seat Leakage: according to ANSI B16.104
Temperature Range: -40°C to 600°C
Operation: Electric Actuator (0-10mA DC, 4-20mA DC)
End Connections: Flanged (RF, FF, RTJ), Welded (SW, BW)
Application: Chemical, Petroleum, Power Station, etc.
