(API 624 Additional High Temperature Version)
Key Specifications / Features

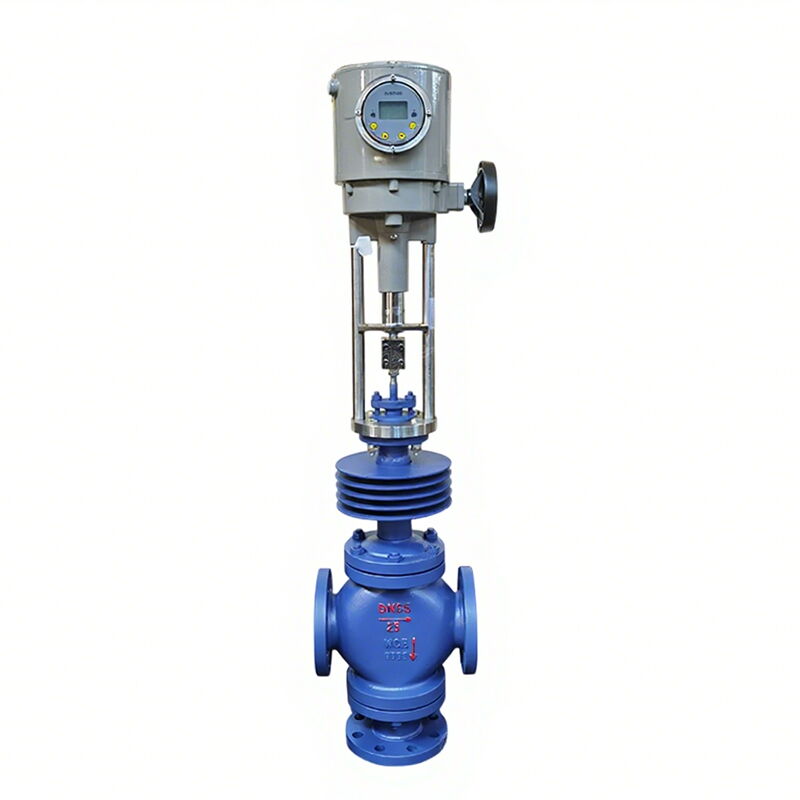

The High-temperature Steam Control Valve Factory offers a robust 3-way control valve designed for demanding applications. The valve features an ASTM A216 WCB carbon steel body and SS 304 trim, ensuring durability and corrosion resistance. With a DN65 (2-1/2 inch) nominal diameter and a PN25 (Class 300 LB) pressure rating, it is well-suited for high-pressure steam systems. The electric actuation provides precise control and ease of operation, making it ideal for managing steam flow in industrial processes.
- Model No.: MV-20250616-LECV-02
- Hits: 1
- Categories: Low Emission Control Valves , Ultra High Temperature Valves
- Tags: High-temperature Control Valve, Electric Control Valve, Steam Control Valve
Detail Information
Product Name: High-temperature Steam Control Valve
Body Material: ASTM A216 WCB
Trim Material: SS 304
Seat Material: SS 304
Size: DN65, 2-1/2 Inch
Pressure: PN25, Class 300 LB
End Connection: RF Flanged
Operation: Electric Actuator
Flow Characteristics: Linear, Equal Percentage
Rangeability: 30:1
Product Range
Size Range: DN25-DN300 (1-12 Inch)
Pressure Rating: Class 150 LB, 300 LB, 400 LB (PN16, PN40, PN64)
Body Material: Carbon, Stainless, Alloy Steel, ASTM A216 WCB, A351 CF3/CF3M, CF8/CF8M
Packing Material: Graphite, PTFE
Seat Leakage: according to ANSI B16.104
Gland Type: High-temperature ( 230°C to 450°C); Super High Temperature ( 230°C to 560°C)
Operation: Electric Actuator (220V/50Hz, 4-20mA, IP 55)
End Connections: Flanged (RF, FF, RTJ), Welded (SW, BW)
Application: Chemical, Petroleum, Power Station, etc.
