(API 624 Additional High Temperature Version)
Key Specifications / Features

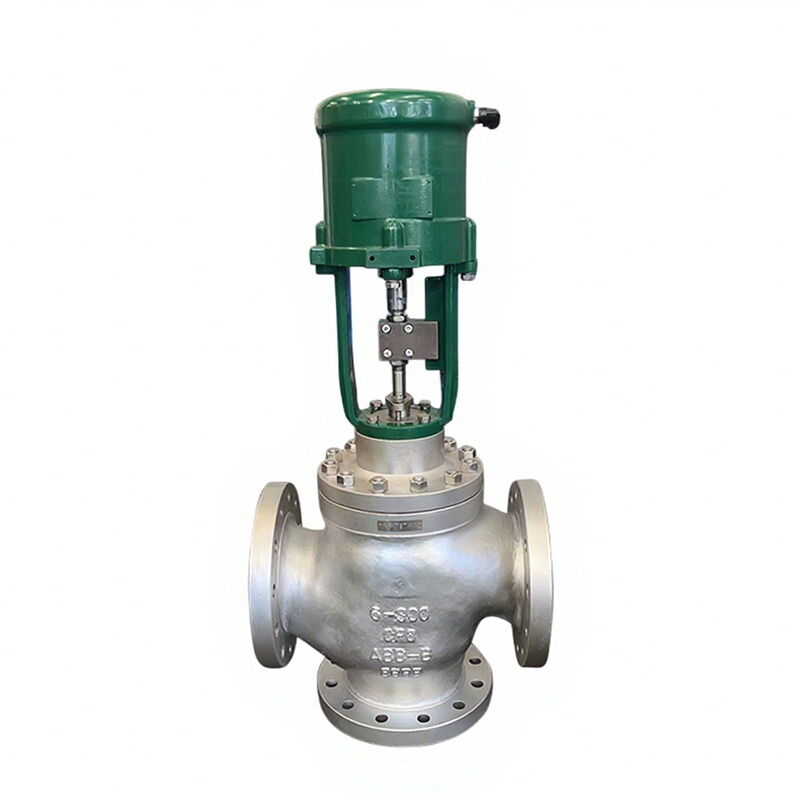

The ASTM A351 CF8 3-way Control Valve is a high-performance industrial valve designed for demanding applications. It features a robust cast stainless steel body, ensuring durability and resistance to corrosion. With a 6-inch (DN150) size and a pressure class of 800 LB (PN130), this valve is built to handle significant flow rates and pressures. The RF flanged design facilitates easy installation and maintenance, while the pneumatic actuation provides precise control and reliable operation.
- Model No.: MV-20250619-LECV-01
- Hits: 0
- Categories: Low Emission Control Valves
- Tags: Pneumatic Control Valve, 3-Way Control Valve, ASTM A351 CF8 Control Valve
Detail Information
Product Name: ASTM A351 CF8 3-way Control Valve
Body Material: ASTM A351 CF8
Size: 6 Inch, DN150
Pressure: Class 800 LB, PN130
End Connection: RF Flanged
Operation: Pneumatic Actuator
Flow Characteristics: Linear, Equal Percentage
Product Range
Size Range: DN25-DN300 (1-12 Inch)
Pressure Rating: Class 150-1500 LB (PN16-PN250)
Body Material: ASTM A216 WCB, A351 CF3, CF3M, CF8, CF8M
Packing Material: Graphite, PTFE
Seat Leakage: according to ANSI B16.104
End Connections: Flanged (RF, FF, RTJ)
Medium: Water, Oil, Gas, etc.
