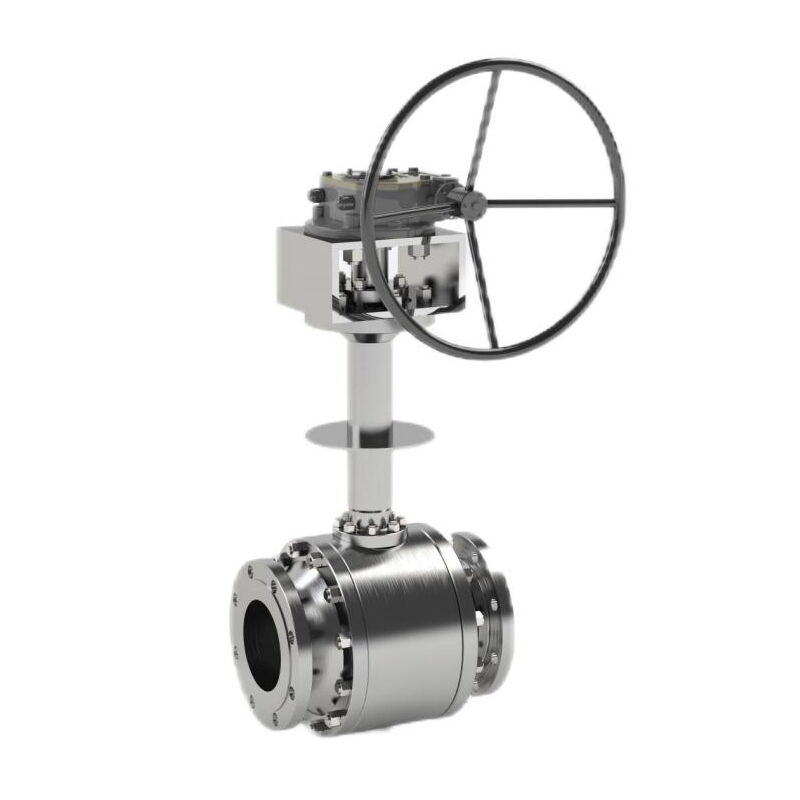

Cryogenic Floating Ball Valves, Stainless Steel, 1/2-24 Inch
Compliant with TA-LUFT/ISO 15848-1/API 624
(API 624 Additional High Temperature Version)

Key Specifications / Features

We are a leading Cryogenic Floating Ball Valves Supplier, specializing in hard seal stainless steel valves. Our products are available in two or three pieces, with sizes ranging from 1/2 to 24 inches and pressure ratings from Class 150 to 2500 LB. These valves are designed for unidirectional sealing, ensuring reliability and performance in cryogenic applications.

Detail Information

Product Name: Cryogenic Floating Ball Valve, Hard Seal
Seal Type: Metal Sealing
Main Structure Type: 2-Piece, 3-Piece
Material: Stainless Steel, Special Materials
Nominal Size Range: 1/2-24 Inch, DN15-DN600
Pressure Rating: Class 150-2500 LB, PN16-PN420
Temperature Range: -196°C to 300°C
Key Technical Features: Unidirectional sealing, ultra-low temperature
Applicable Occasions: Suitable for cryogenic applications containing a small amount of impurities or alternating hot and cold conditions, as well as ethylene and propylene service.
