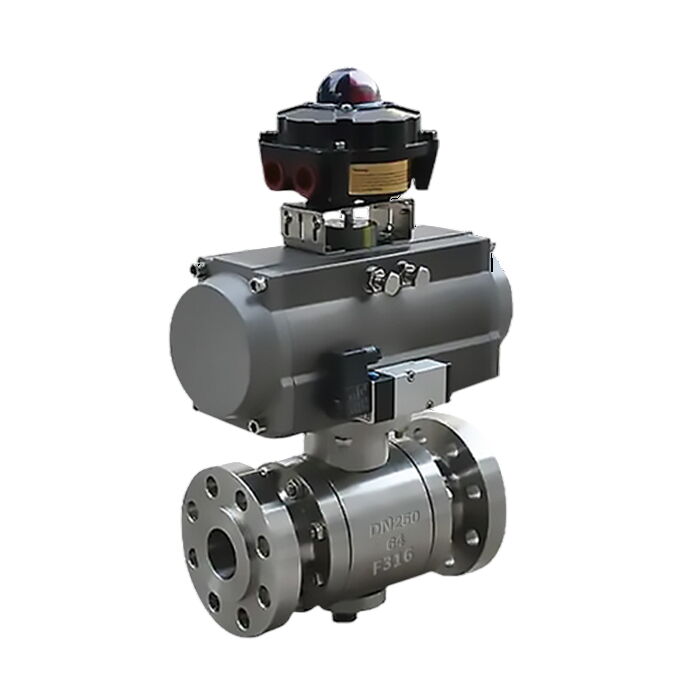

ASTM A182 F316 Ball Valves, API 608, Pneumatic, DN250, PN64

Compliant with TA-LUFT/ISO 15848-1/API 624
(API 624 Additional High Temperature Version)

Key Specifications / Features

The ASTM A182 F316 Ball Valves from our supplier are high-quality, pneumatic actuated valves designed for robust performance. These valves are forged from stainless steel, ensuring durability and resistance to corrosion. They comply with API 608 standards and feature flanged ends for easy installation. With a nominal diameter of DN250 (10 inches) and a pressure rating of PN64 (400 LB), they are suitable for demanding applications requiring reliable shut-off and flow control.

Model No.: MV-20250616-LECV-06
Hits: 1
Categories: Low Emission Control Valves
Tags: Pneumatic Actuated Ball Valve, API 608 Ball Valve, ASTM A182 F316 Ball Valve

Request a quote

Detail Information

Product Name: ASTM A182 F316 Ball Valves
Design Standard: API 608
Body Material: ASTM A182 F316
Size: DN250, 10 Inch
Pressure: PN64, Class 400 LB
Operation: Pneumatic Actuator
End Connection: Flanged
Flange Standard: ANSI B16.5
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect

Product Range

Body Materials: Forged Carbon Steel, Stainless Steel, Alloy Steel, A182 F304, F316, A105, etc.
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-64 Inch, DN15-DN1600
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: Flanged, Welded
Medium: Water, Gas, Oil, etc.
