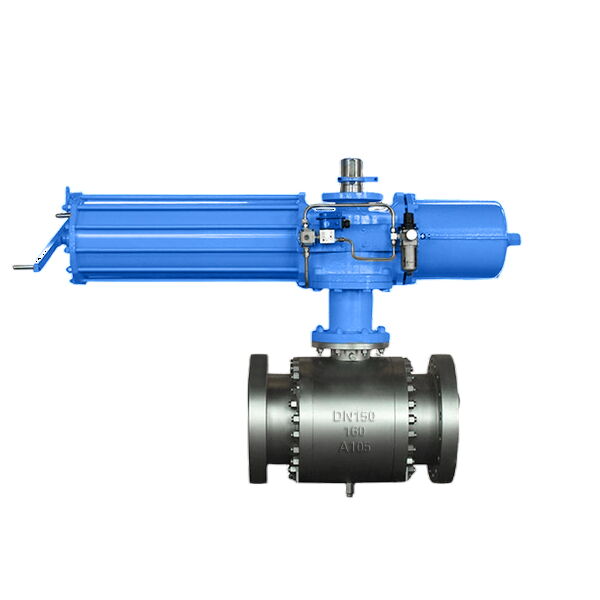

ASTM A105 Ball Valves, API 6D, DN150, PN160, RTJ, Pneumatic
(API 624 Additional High Temperature Version)
Key Specifications / Features
The ASTM A105 Ball Valves Factory in China produces high-quality ball valves that adhere to ASME B16.34 and API 6D standards. These valves feature a forged carbon steel body, ensuring robustness and durability. With a DN150 (6 inch) nominal diameter and a Class 900 LB (PN160) pressure rating, they are designed for high-pressure applications. The valves are equipped with pneumatic actuators for reliable and precise control and have RTJ flanged ends for secure connections.
- Model No.: MV-20250616-LECV-05
- Hits: 28
- Categories: Low Emission Control Valves
- Tags: Pneumatic Actuated Ball Valve, API 6D Ball Valve, ASTM A105 Ball Valve
Detail Information
Product Name: ASTM A105 Ball Valves
Design Standard: ASME B16.34, API 6D
Body Material: ASTM A105
Size: DN150, 6 Inch
Pressure: PN160, Class 900 LB
Operation: Pneumatic Actuator
End Connection: RTJ Flanged
Flange Standard: ANSI B16.5
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: Forged Carbon Steel, Stainless Steel, Alloy Steel
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-64 Inch, DN15-DN1600
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: Flanged (RF, RTJ), Welded, Threaded
Temperature Range: up to 650°C
Medium: Water, Gas, Oil, etc.
