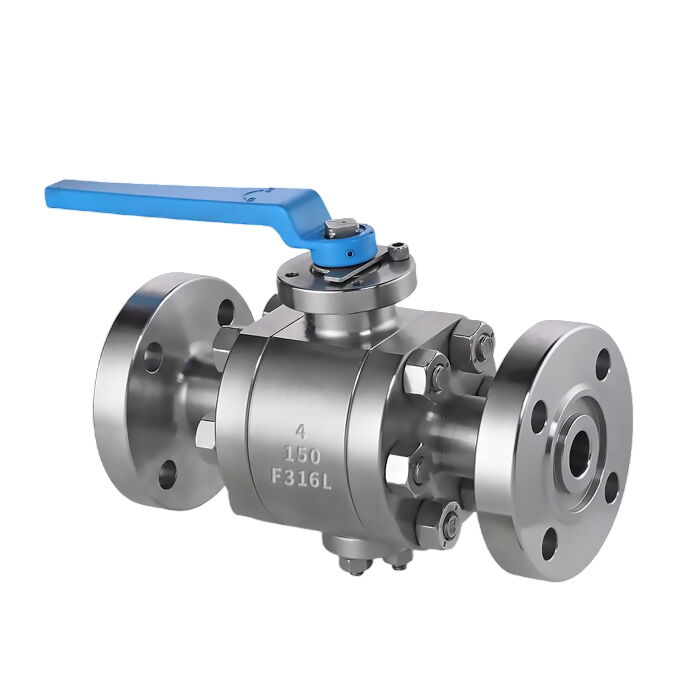

ASTM A182 F316L Ball Valves, BS 5351, 3-piece, 4 Inch, CL150
(API 624 Additional High Temperature Version)
Key Specifications / Features
The ASTM A182 F316L ball valve is a high-quality valve designed for demanding industrial applications. It features a 3-piece forged stainless steel body, ensuring robustness and corrosion resistance. The valve complies with BS 5351 standards and has a 4-inch (DN100) size with a rating of 150 LB and PN20. It comes with RF flanged ends for secure connections and is equipped with a lever for easy operation. This valve is ideal for systems requiring reliable shutoff and flow control.
- Model No.: MV-20250617-LTMSBV-02
- Hits: 32
- Categories: Low Torque Metal Seated Ball Valve
- Tags: 3 Piece Ball Valve, BS 5351 Ball Valve, ASTM A182 F316L Ball Valve
Detail Information
Product Name: ASTM A182 F316L Ball Valves, 3-piece
Design Standard: BS 5351
Body Material: ASTM A182 F316L
Size: 4 Inch, DN100
Pressure: Class 150 LB, PN20
Operation: Lever
End Connection: RF Flanged to ANSI B16.5
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: Forged Carbon Steel, Stainless Steel, Alloy Steel, A182 F304, F316, A105, etc.
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-24 Inch, DN15-DN600
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: Flanged, Welded
Application: LNG, Water Treatment, Mining, etc.
Working Temperature: -196°C to 120°C
