(API 624 Additional High Temperature Version)
Key Specifications / Features

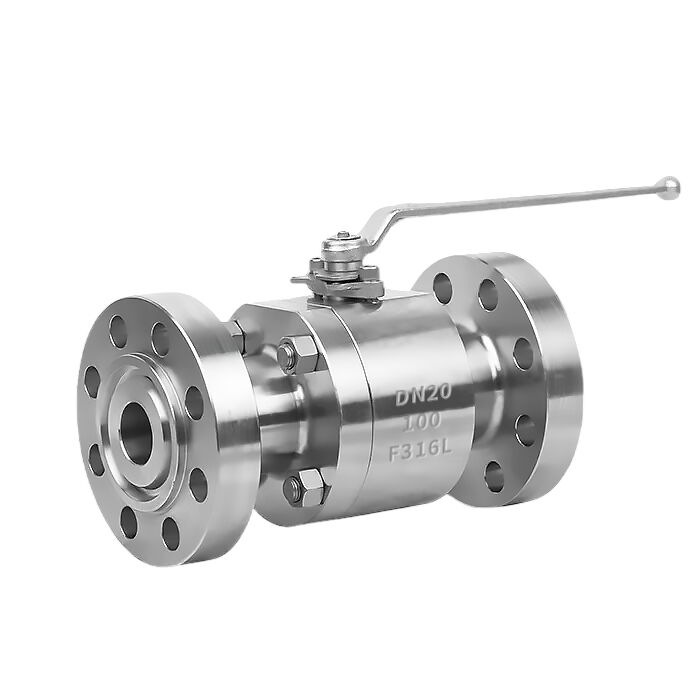

The ASTM A182 F316L Ball Valve from our manufacturer features a 2-piece body design, adhering to BS 5351 and API 608 standards. It is constructed with a forged stainless steel body, ensuring durability and corrosion resistance. Available in DN20 (3/4 inch) size with a PN100 (Class 600 LB) rating, it includes a lever operator and flanged connections, making it suitable for high-pressure applications in various industries.
- Model No.: MV-20250616-LTMSBV-01
- Hits: 3
- Categories: Low Torque Metal Seated Ball Valve
- Tags: 3/4 Inch Ball Valve, BS 5351 Ball Valve, ASTM A182 F316L Ball Valve
Detail Information
Product Name: ASTM A182 F316L Ball Valve, 2-piece
Design Standard: BS 5351, API 608
Body Material: ASTM A182 F316L
Size: DN20, 3/4 Inch
Pressure: PN100, Class 600 LB
Operation: Lever
End Connection: Flanged
Flange Standard: ANSI B16.5
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: Forged Carbon Steel, Stainless Steel, Alloy Steel, A182 F304, F316, A105, etc.
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-64 Inch, DN15-DN1600
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: Flanged, Welded
Medium: Water, Gas, Oil, etc.
