ASTM A182 F304L Ball Valve, BS 5351, API 608, 2 Inch, 300 LB

Compliant with TA-LUFT/ISO 15848-1/API 624
(API 624 Additional High Temperature Version)

Key Specifications / Features

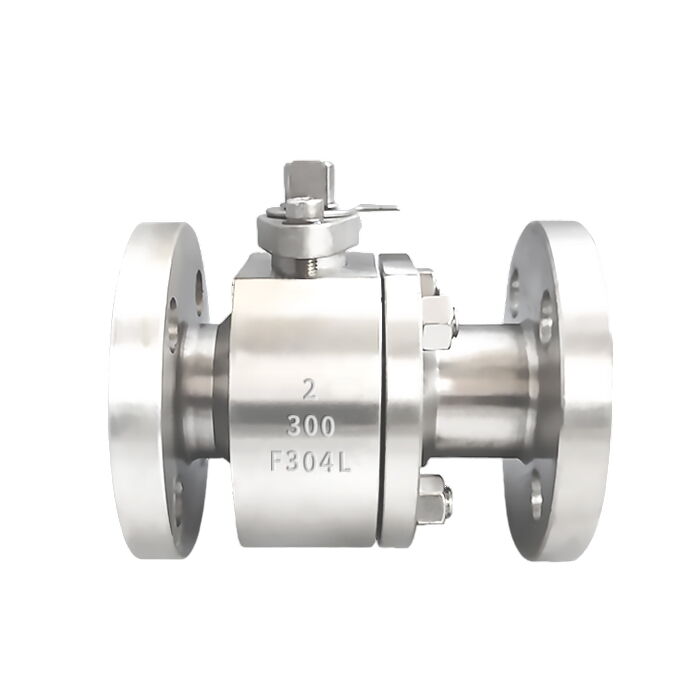

The ASTM A182 F304L Ball Valve is a high-quality forged stainless steel valve, designed to meet the BS 5351 and API 608 standards. It features a 2-inch (DN50) size, Class 300 LB (PN50) pressure rating, and RF flanged ends. The valve is constructed from ASTM A182 F304L material, offering excellent corrosion resistance and durability. It also features a low-emission design, making it environmentally friendly and suitable for applications where minimizing emissions is crucial.

Model No.: MV-20250617-LTMSBV-01
Hits: 0
Categories: Low Torque Metal Seated Ball Valve
Tags: ASTM A182 F304L Ball Valve, API 608 Ball Valve, BS 5351 Ball Valve

Request a quote

Detail Information

Product Name: ASTM A182 F304L Ball Valve
Design Standard: BS 5351, API 608
Body Material: ASTM A182 F304L
Size: 2 Inch, DN50
Pressure: Class 300 LB, PN50
Operation: Manual
End Connection: RF Flanged
Flange Standard: ANSI B16.5
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect

Product Range

Body Materials: Forged Carbon Steel, Stainless Steel, Alloy Steel
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-64 Inch, DN15-DN1600
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: RF, RTJ, BW, SW, NPT
Medium: Water, Gas, Oil, etc.
