(API 624 Additional High Temperature Version)
Key Specifications / Features

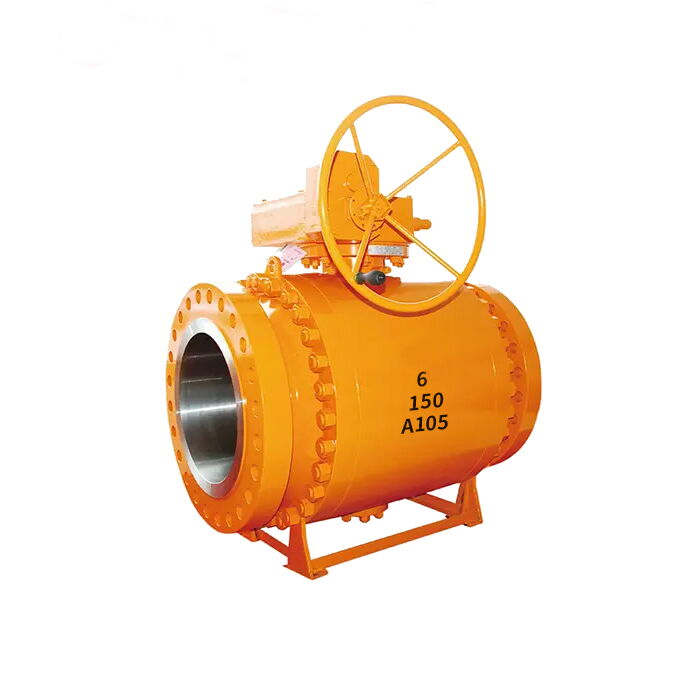

The BS 5351 Ball Valve Plant in China offers high-quality ball valves designed to meet stringent industry standards. These valves feature a forged carbon steel body, ensuring durability and strength. With a 6-inch diameter (DN150) and a pressure rating of Class 150 LB (PN20), they are suitable for a wide range of industrial applications. The worm gear operation provides smooth and reliable control, while the low-emission design minimizes environmental impact. The raised face (RF) flanged connections ensure secure and leak-free installations.
- Model No.: MV-20250612-LTMSBV-01
- Hits: 2
- Categories: Low Torque Metal Seated Ball Valve
- Tags: 6 Inch Ball Valve, ASTM A105 Ball Valve, BS 5351 Ball Valve
Detail Information
Product Name: BS 5351 Ball Valve
Design Standard: BS 5351
Body Material: ASTM A105
Size: 6 Inch, DN150
Pressure: Class 150 LB, PN20
Operation: Worm Gear
End Connection: RF Flanged to ANSI B16.5
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598, GB/T 13927
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A105, A105N, ASTM A182 F304/F304L, F316/F316L, F347, F321, F51, A350 LF2, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2 Inch, 1 Inch, 2 Inch, 4 Inch, 6 Inch, 8 Inch, 10 Inch,,,,32 Inch, DN15-DN800
Pressure Range: Class 150 LB, 300 LB, 400 LB, 600 LB, 900 LB, 1500 LB, 2500 LB, PN16, PN20, PN50, PN64, PN100, PN150, PN250, PN420
End Connection: Flanged (RF, RTJ)
Temperature Range: -196°C to 120°C
Application: LNG, Industrial Gas, Water, Oil, etc.
