(API 624 Additional High Temperature Version)
Key Specifications / Features

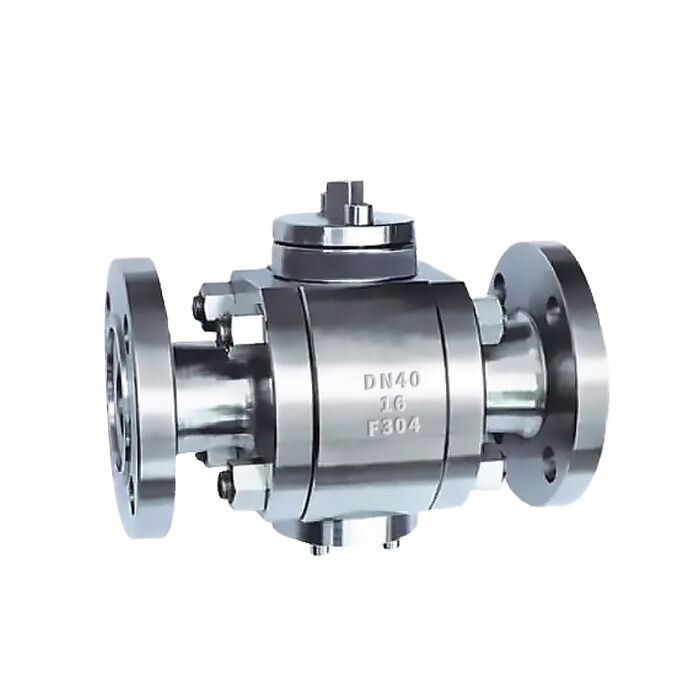

The ASTM A182 F304 Ball Valve from our supplier features a metal-seated design, adhering to BS 5351 standards. It is constructed with a forged stainless steel body, ensuring durability and corrosion resistance. The valve has a DN40 (1-1/2 inch) size, rated for PN16 (Class 150 LB) pressure, and comes with RF flanged ends for secure and reliable connections. This valve is ideal for applications requiring high performance and reliability in various industrial settings.
- Model No.: MV-20250613-LTMSBV-03
- Hits: 14
- Categories: Low Torque Metal Seated Ball Valve
- Tags: Metal Seated Ball Valve, ASTM A182 F304 Ball Valve, BS 5351 Ball Valve
Detail Information
Product Name: ASTM A182 F304 Ball Valve, Metal Seated
Design Standard: BS 5351
Body Material: ASTM A182 F304
Size: DN40, 1-1/2 Inch
Pressure: PN16, Class 150 LB
Operation: Bare Shaft
End Connection: RF Flanged to ANSI B16.5
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598, GB/T 13927
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A105, A105N, A182 F304, F316, F347, F321, F51, A350 LF2, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-32 Inch, DN15-DN800
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: Flanged (RF, RTJ), Welded, Threaded
Temperature Range: up to 650°C
Medium: Gas, Water, Oil, etc.
