(API 624 Additional High Temperature Version)
Key Specifications / Features

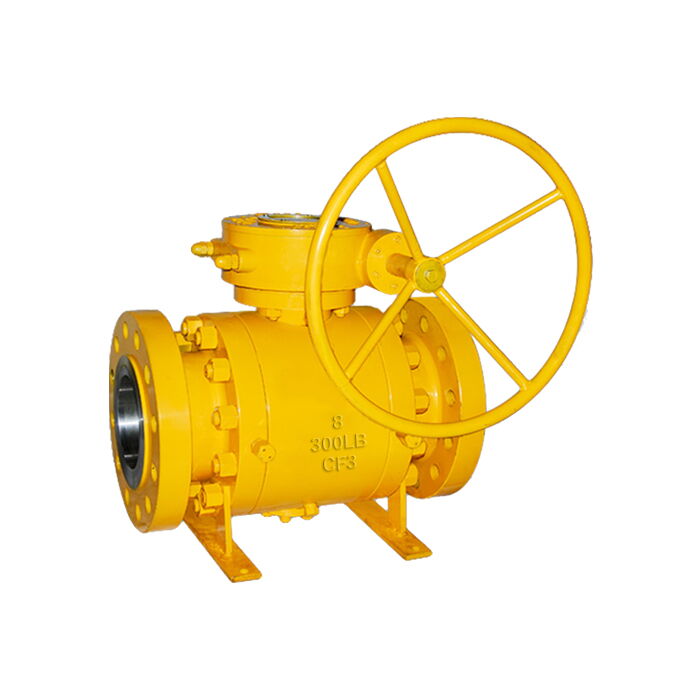

The ASTM A351 CF3 Ball Valve manufactured by our company meets ASME B16.34 standards and a features cast stainless steel body. It has an 8-inch (DN200) size, rated for Class 300 LB (PN50) pressure. The valve is equipped with a metal seat and operates via a worm gear mechanism. It also features RF (Raised Face) flanged ends for secure connections. This ball valve is designed for high-performance applications in various industrial environments, offering durability, reliability, and ease of operation.
- Model No.: MV-20250613-LTMSBV-04
- Hits: 11
- Categories: Low Torque Metal Seated Ball Valve
- Tags: ASTM A351 CF3 Ball Valve, Metal Seated Ball Valve, 8 Inch Ball Valve
Detail Information
Product Name: ASTM A351 CF3 Ball Valve, Metal Seated
Design Standard: ASME B16.34
Body Material: ASTM A351 CF3
Size: 8 Inch, DN200
Pressure: Class 300 LB, PN50
Operation: Worm Gear
End Connection: RF Flanged (ANSI B16.5)
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598, GB/T 13927
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A351 CF3, CF8, A216 WCB, A217 WC6, WC9, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-32 Inch, DN15-DN800
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: Flanged (RF, RTJ), Welded, Threaded
Temperature Range: up to 650°C
Medium: Gas, Water, Oil, etc.
