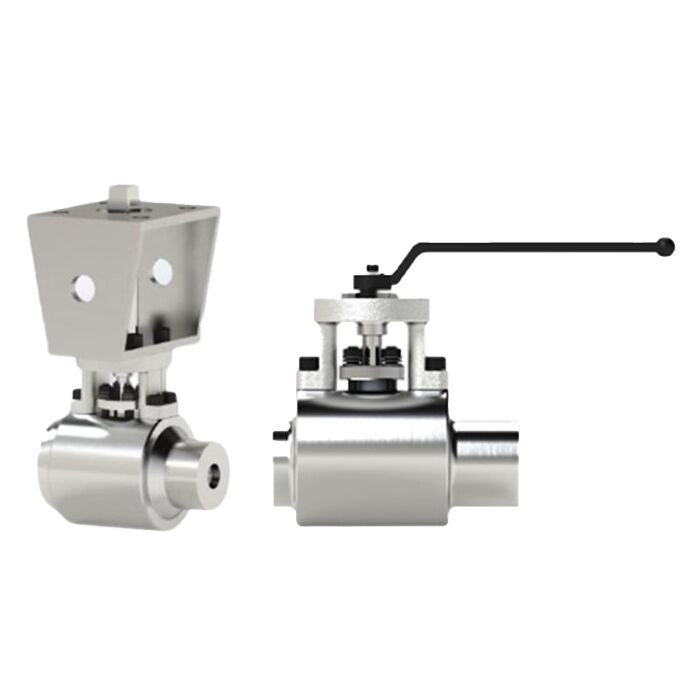

Power Plant Drainage Ball Valve, Hard Seal, 1/2–4 Inch, 1 PC
(API 624 Additional High Temperature Version)
Key Specifications / Features
The Power Plant Drainage Ball Valve Factory specializes in producing high-quality metallic sealing ball valves with a one-piece body design. These valves are constructed from durable materials such as carbon steel, chrome-molybdenum steel, and stainless steel, ensuring robustness and reliability. Available in sizes ranging from 1/2 to 4 inches and pressure classes from 150 to 4500 LB, they are designed meet to the stringent requirements of power plant drainage systems, providing excellent performance and longevity.
- Model No.: MV-20250213-LTMSBV-01
- Hits: 22
- Categories: Low Torque Metal Seated Ball Valve
- Tags: Power Plant Ball Valve, Drainage Ball Valve, One Piece Ball Valve
Detail Information
Product Name: Power Plant Drainage Ball Valve
Seal Type: Metallic Sealing
Main Valve Structure: One Piece
Material: Carbon Steel, Chrome-Molybdenum Steel, Chrome-Molybdenum-Vanadium Steel, Stainless Steel, Special Materials
Nominal Size Range: 1/2–4 Inch, DN15–DN100
Pressure Rating: Class 150–4500 LB, PN16–PN760
Temperature Range: -46°C to 650°C
Key Technical Features: Unidirectional sealing, high-temperature and high-pressure resistance, erosion-resistant
Applicable Scenarios: Mainly for power plant drainage, also suitable for other customized high-temperature and high-pressure applications
