(API 624 Additional High Temperature Version)
Key Specifications / Features

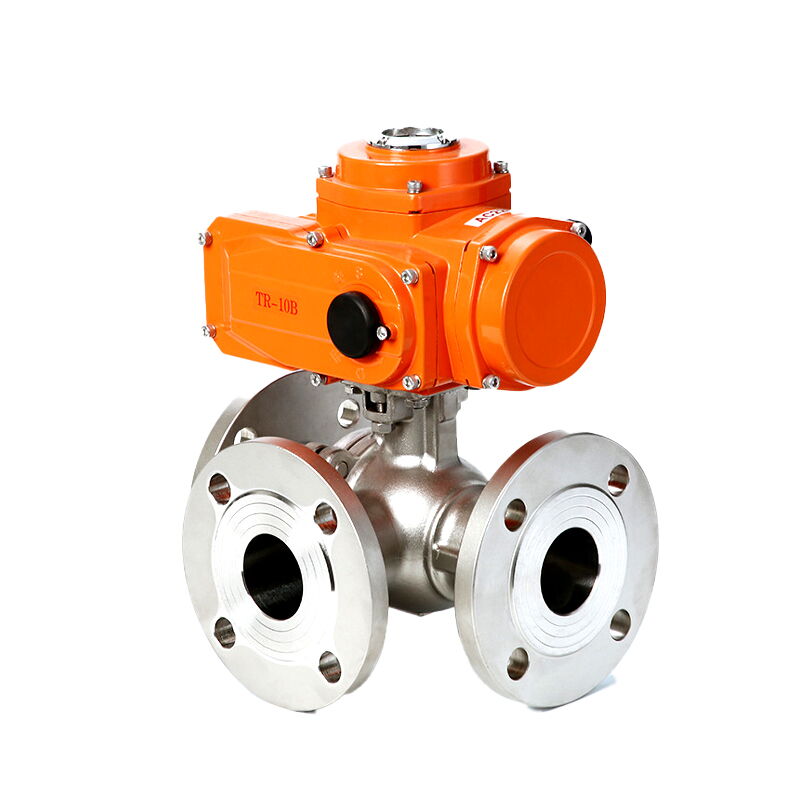

China Electric 3-Way Ball Valve features L/T port configurations for versatile flow control, crafted from durable stainless steel SS 304 or SS 316L. Available in sizes DN15–DN300 (1/2–12 inch), it supports pressure ratings PN16, PN25, and Class 150–300 LB, with flanged ends for secure installation—ideal for industrial applications requiring reliable, automated fluid direction.
- Model No.: MV-20250709-LECV-01
- Hits: 1
- Categories: Low Emission Control Valves
- Tags: 3-Way Ball Valve, Electric Actuated Ball Valve, Stainless Steel Ball Valve
Detail Information
Product Name: Electric 3-Way Ball Valve
Type: L/T Port
Body Material: Stainless Steel SS 304, SS 316L
Size Range: DN15-DN300, 1/2-12 Inch
Rated Pressure: 1.6 MPa, 2.5 MPa, PN16, PN25, Class 150-300 LB
Medium Temperature:
PTFE: -10°C to 100°C
POB: -20°C to 250°C
Connection End: Flanged
Electric Actuator Specifications
Available Voltage: AC 220V, AC 380V, AC 110V, AC 24V, DC 24V, DC 48V, DC 220V, etc
Protection Level: IP65, IP66, IP67, IP68
Explosion-proof Level: EX DII BT4
Switching Time: 4S, 15S, 30S, 45S, 60S, other options available
Action Range: Sourceless switch type, Modulating type, Intelligent type
Operating Range: 0-90°, 0-180°
Ambient Temperature: -10°C to 60°C
Similar Products

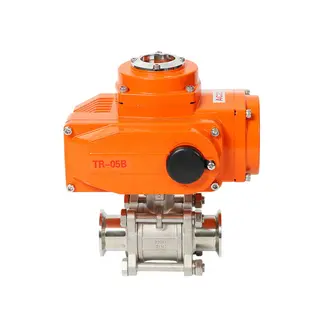

Electric Tri-Clamp Ball Valve, SS 304/SS 316L, 3PC, 1/4-4 IN
