(API 624 Additional High Temperature Version)
Key Specifications / Features
Our Electric Tri-Clamp Ball Valve Factory specializes in producing high-quality sanitary ball valves designed for clean and hygienic applications. These valves are made from premium materials such as stainless steel SS 304 and SS 316L, ensuring durability and corrosion resistance. Available in a 3-piece design, they come in sizes ranging from 1/4 inch to 4 inches (DN8 to DN100) and pressure ratings of PN16 and PN25, as well as Class 150 to 300 LB. The electric actuation provides precise control, making these valves ideal for industries such as food processing, pharmaceuticals, and biotechnology.
- Model No.: MV-20250627-LTMSBV-01
- Hits: 6
- Categories: Low Torque Metal Seated Ball Valve
- Tags: 3 Piece Ball Valve, Electric Actuated Ball Valve, Tri-Clamp Ball Valve
Detail Information

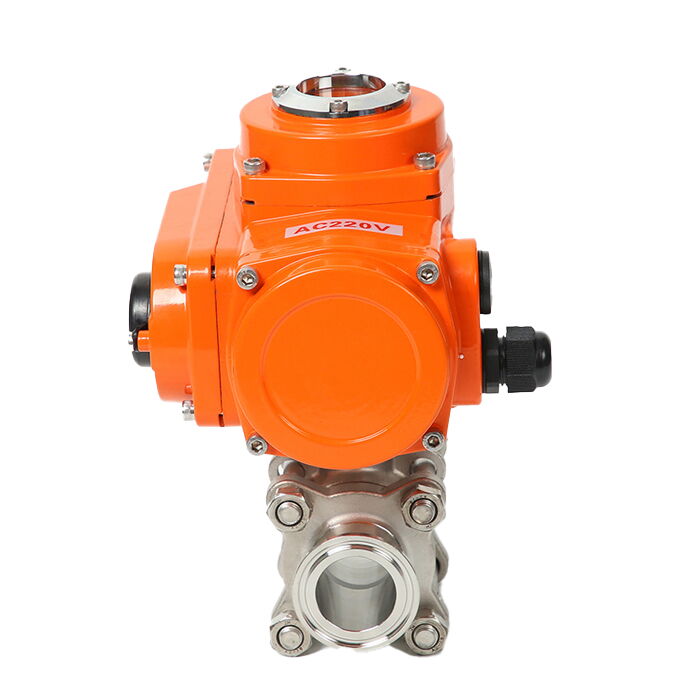

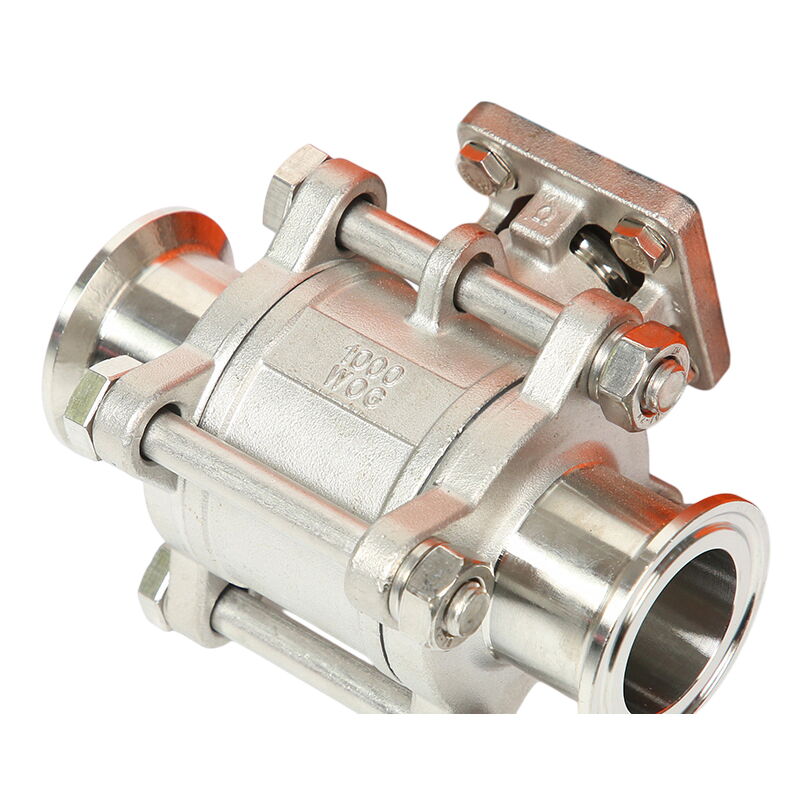

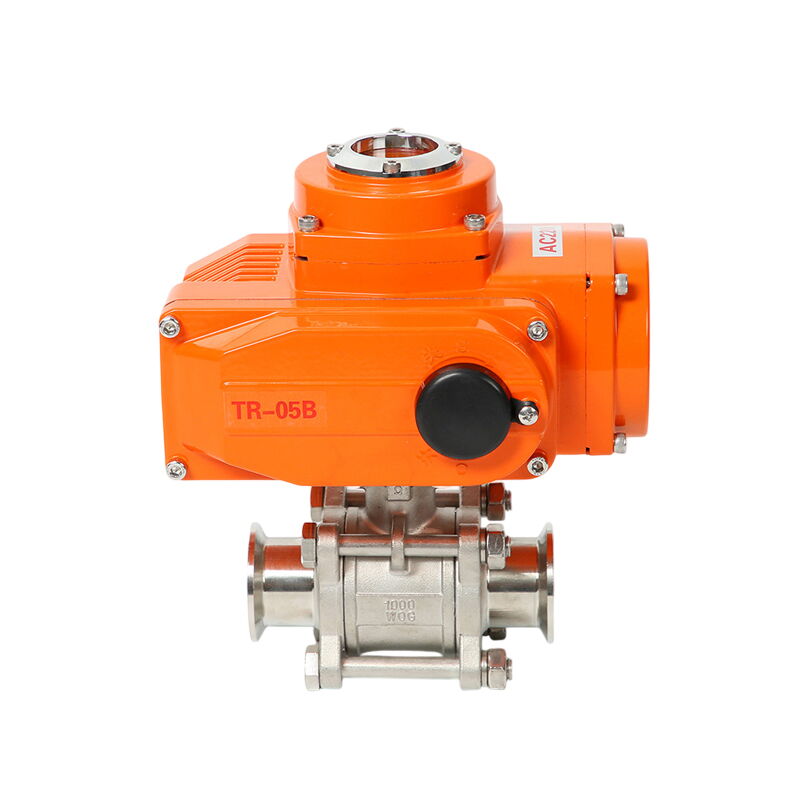

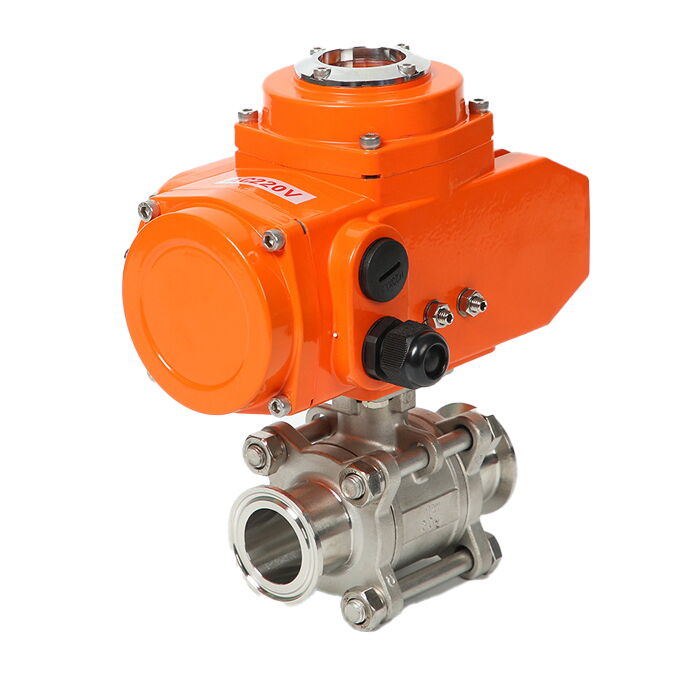

Product Name: Three-Piece Sanitary Electric Tri-Clamp Ball Valve
Body Material: SS 304, SS 316L, and others available
Nominal Diameter: DN8-DN100, 1/4-4 Inch
Nominal Pressure: 1.6MPA, 2.5MPA, PN16, PN25, Class 150-300 LB
Connection Method: Clamp
Medium Temperature: -10°C to 100°C (PTFE); -20°C to 250°C (POB)
Electric Actuator Parameters
Available Voltage: AC220V, AC380V, AC110V, AC24V, DC24V, DC48V, DC220V, and others available
Protection Level: IP65, IP66, IP67, IP68
Explosion-proof Level: Ex dII BT4, Ex dII CT4
Switching Time: 4 S, 15 S, 30 S, 45 S, 60 S, and others available
Control Method: Passive Switch Type, Regulating Type, Intelligent Type
Angle Range: 0-90°, 0-180°
Ambient Temperature: -10°C to 60°C, and others available
