Key Specifications / Features
The 3-piece Tri-Clamp Ball Valve Manufacturer produces high-quality valves designed in accordance with ANSI B16.34 and ASTM A351 CF8 standards. These valves feature a cast stainless steel body, ensuring durability and corrosion resistance. With a size of 1-1/4 inch (DN32) and a pressure rating of 1000 WOG (PN63), they are suitable for a wide range of applications. The tri-clamp design allows for quick and easy installation and maintenance, making these ball valves ideal for industries requiring efficient and reliable flow control.
- Model No.: MV-20250630-LTMSBV-01
- Hits: 7
- Categories: Low Torque Metal Seated Ball Valve
- Tags: Tri-Clamp Ball Valve, 3 Piece Ball Valve, ASTM A351 CF8 Ball Valve
Detail Information

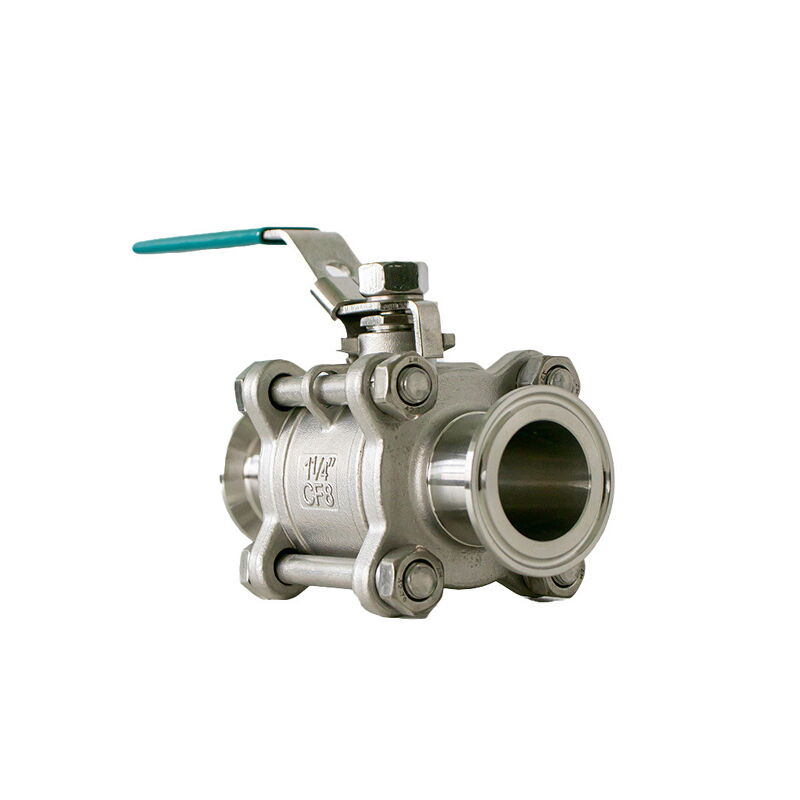

Product Name: Three-piece Tri-Clamp Ball Valve
Design Standard: ANSI B16.34
Body Material: ASTM A351 CF8
Size: 1-1/4 Inch, DN32
Working Pressure: 1000 WOG (PN63)
Temperature Range: -20 to 120°C
Suitable Medium: Water, Oil, Gas, and some corrosive liquids
Thread Type: G-NPT, BSPT, BSP, DIN 259/2999

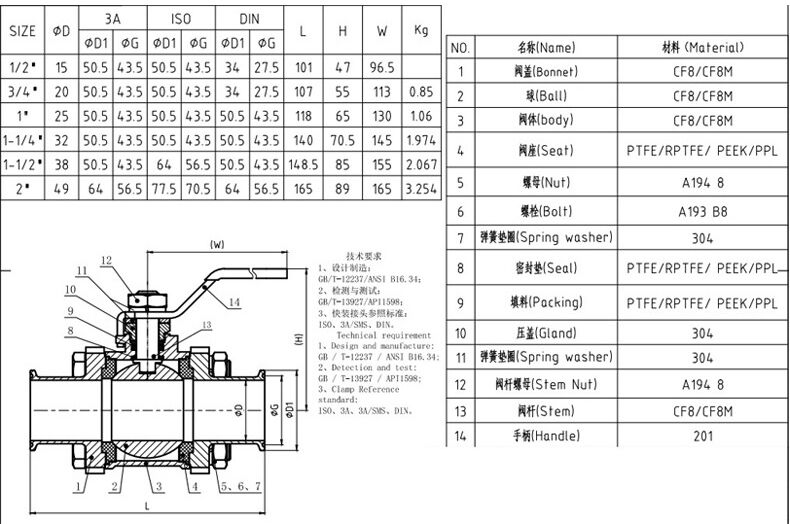

Product Range
Body & Ball Material: ASTM A351 CF8, CF8M
Seat Material: PTFE, RPTFE, PEEK, PPL
Size Range: 1/2-2 Inch, DN15-DN50
Pressure Range: PN16-PN100, Class 150-600 LB
Standards:
Design and manufacture: GB/T-12237/ANSI B16.34
Inspection and test: GB/T-12241/ASTM A216/ASTM A217
Clamp Reference (standard): ISO, 3A/SMS, DIN
