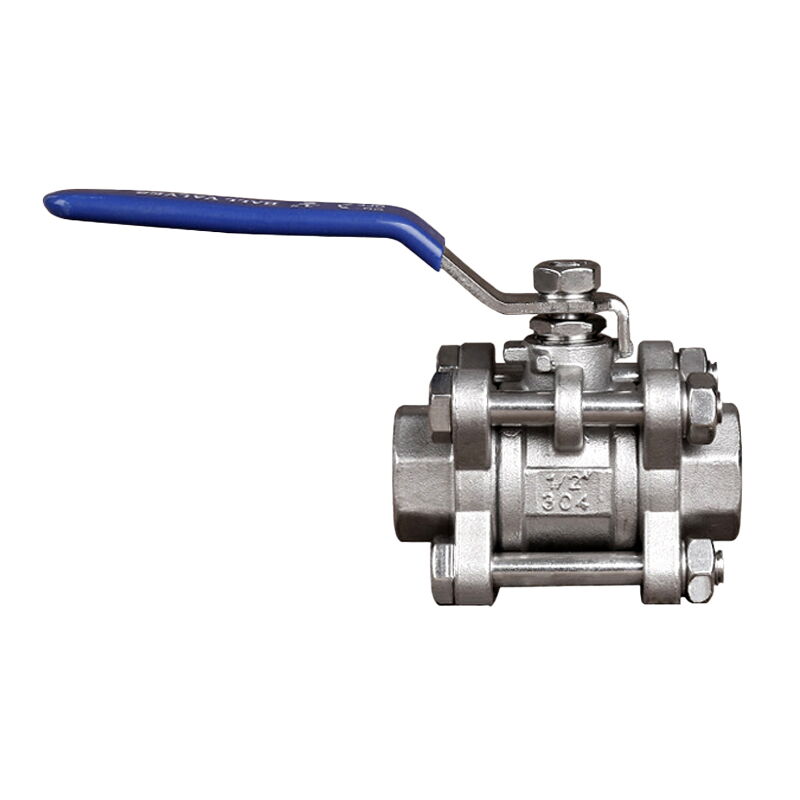

3-piece Threaded Ball Valve, ASME B16.34, SS 304, 1/2 Inch
(API 624 Additional High Temperature Version)
Key Specifications / Features
The 3-piece Threaded Ball Valve Manufacturer offers high-quality ball valves designed in accordance with ASME B16.34 standards. These valves feature a stainless steel SS 304 body, ensuring durability and corrosion resistance. With a nominal diameter of DN15 (1/2 inch) and a pressure rating of 1000 WOG, they are operated using a lever for easy control. The 3-piece design allows for convenient maintenance and replacement of internal components.
- Model No.: MV-20250630-LTMSBV-04
- Hits: 16
- Categories: Low Torque Metal Seated Ball Valve
- Tags: SS 304 Ball Valve, Threaded Ball Valve, 3 Piece Ball Valve
Detail Information
Product Name: 3-piece Threaded Ball Valve
Design Standard: ASME B16.34
Body Material: Stainless Steel SS 304
Size: 1/2 Inch, DN15
Pressure: 1000 WOG
Operation: Lever
End Connection: Threaded
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Product Range
Material: Stainless Steel SS 304, SS 316
Nominal Diameter: DN8-DN100, 1/4-4 Inch
Nominal Pressure: PN16, 1.6 MPa, 1000 WOG
Connection Method: Threaded
Medium Temperature: -29°C to 200°C
Application Scope: Water, Oil, Gas
Customization: Supported
