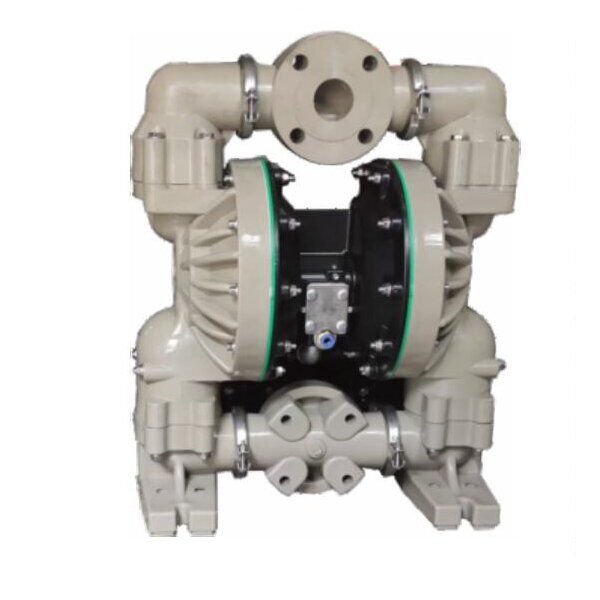

Air-Operated Diaphragm Pump, PP, PVDF, 2 Inch, 0-548 L/min

Key Specifications / Features

We are a leading manufacturer of Air-Operated Diaphragm Pumps, featuring durable PP or PVDF bodies designed to handle a wide range of fluids. With a flow rate ranging from 0 to 548 L/min and a lift capability of up to 65 meters, these pumps offer reliable performance in various applications. The pumps are equipped with a 2-inch port size and operate within a pressure range of 0.15 to 0.7 MPa. They are designed with flanged ends for secure and easy installation.

Model no.: MV-20250410-PDP-01
Hits: 1
Categories: Pneumatic Diaphragm Pumps
Tags: Air-Operated Diaphragm Pump, 2 Inch Diaphragm Pump, PP Diaphragm Pump

Request a quote

Detail Information

Product Name: Air-Operated Diaphragm Pump
Type: Pneumatic Diaphragm Pump
Body Material: PP, PVDF
Maximum Flow Rate (flooded inlet): 0-548 L/min (liters per minute)
Suction Lift: Dry suction 2 meters, Wet suction 5 meters
Maximum Lift: 0-65 Meters
Outlet pressure: 0.15-0.7 MPa
Maximum Particle Size: 6.5 mm
Inlet threads type: ANSI Flange PN20
Inlet threads size: 2 Inch ANSI Flange
Air inlet pipe size: 12 mm
Air inlet pressure range: 0.15-0.7 MPa
Net Weight: 28 KG (PP), 40 KG (PVDF)
