Non-Metallic Diaphragm Pump, PP, PVDF, 1/2-1 Inch, Pneumatic

Key Specifications / Features

The Non-Metallic Diaphragm Pump features a pneumatic design with a PP/PVDF body, offering exceptional corrosion resistance and durability. It delivers flow rates ranging from 0 to 45 liters per minute and can achieve lifts of up to 55 meters, with pressure ranges between 0.22 and 0.55 MPa. Available in 1/2, 3/4, and 1-inch sizes (DN15-DN25), this pump is ideal for transferring aggressive fluids in various industrial applications, providing reliable, efficient performance with minimal maintenance.

Model no.: MV-20250408-PDP-01
Hits: 1
Categories: Pneumatic Diaphragm Pumps
Tags: Pneumatic Diaphragm Pump, PP Diaphragm Pump, PVDF Diaphragm Pump

Request a quote

Detail Information

Product Name: Non-Metallic Diaphragm Pump
Type: Pneumatic Diaphragm Pump

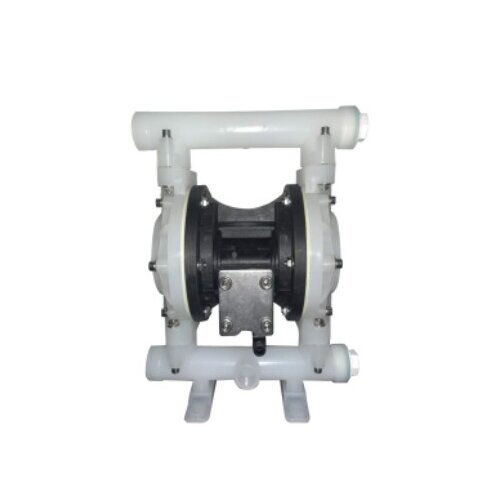

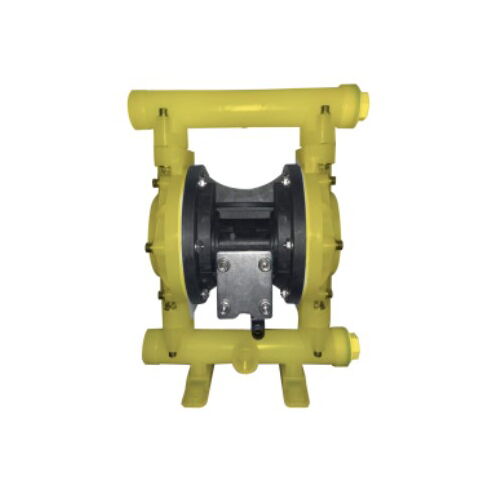

Body Material: PP, PVDF
Maximum Flow Rate (flooded inlet): 0-45 L/min (liters per minute)
Suction Lift: Dry suction 2 meters, Wet suction 4.5 meters
Maximum Lift: 0-55 meters
Outlet pressure: 0.22-0.55 MPa
Maximum Particle Size: 2.5 mm
Air inlet threads type: G
Air inlet threads size: 1/2 Inch (DN15), 3/4 Inch (DN20), 1 Inch (DN25)
Air inlet pipe size: 8 mm
Air inlet pressure range: 0.22-0.55 MPa
Net Weight: 3.8 KG (PP), 6.5 KG (PVDF)
