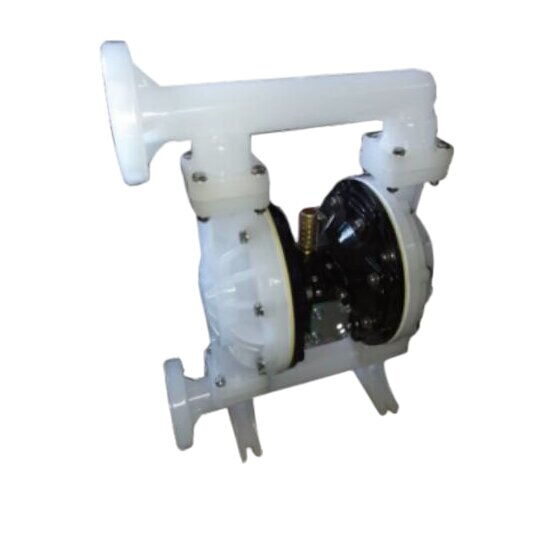

PP Pneumatic Diaphragm Pump, 0-220 L/min, 1-1/2 IN, Flanged

Key Specifications / Features

The China PP Pneumatic Diaphragm Pump is a reliable and efficient solution for handling various fluids. With a flow rate of 0-220 L/min and a lift capacity of 0-65 meters, it is designed to operate within a pressure range of 0.15-0.7 MPa. Featuring a 1-1/2 inch size (DN40) and low leakage performance, this pump is equipped with flanged ends for secure and durable installation. Ideal for industrial applications, it offers excellent reliability and performance in fluid transfer systems.

Model no.: MV-20250409-PMP-01
Hits: 0
Categories: Pneumatic Diaphragm Pumps
Tags: Pneumatic Diaphragm Pump, PP Diaphragm Pump, 1-1/2 Inch Diaphragm Pump

Request a quote

Detail Information

Product Name: PP Pneumatic Diaphragm Pump
Type: Pneumatic Diaphragm Pump
Body Material: PP
Maximum Flow Rate (flooded inlet): 0-220 L/min (liters per minute)
Suction Lift: Dry suction 2 meters, Wet suction 5 meters
Maximum Lift: 0-65 meters
Outlet pressure: 0.15-0.7 MPa
Maximum Particle Size: 4.8 mm
Inlet threads type: Gb Flange PN6
Inlet threads size: 1-1/2 Inch Flange
Air inlet pipe size: 8 mm
Air inlet pressure range: 0.15-0.7 MPa
Net Weight: 11 KG

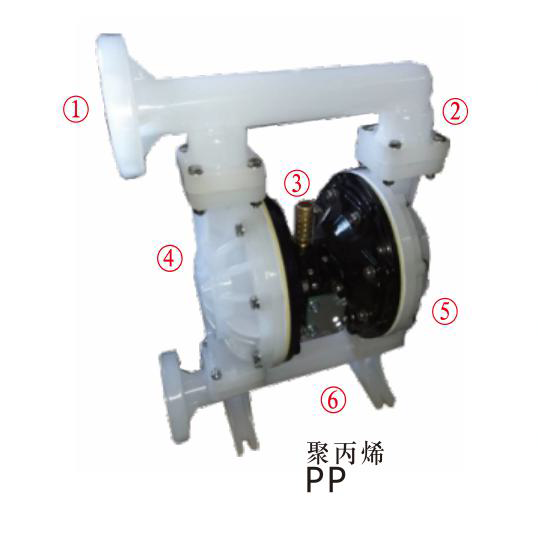

1. Flange installation is convenient and fast import and export DN40 inch national standard PN6
2. Bolt connection is easy to maintain, F4 ball seat with fluorine rubber seal ring.
3. High grade metal muffler with minimum decibels exhaust
4. The fluid covers the stiffener support, and is not cracked under the harsh conditions such as pressure filtration.
5. Santoprene excellent flexural F46 suitable for all kinds of acid and alkali solution.
6. The spray coating of aluminum alloy air distribution motor body can avoid corruption in the atmosphere.
