Stainless Steel Diaphragm Pump, 1/2-1 IN, 0-35 LPM, Pneumatic

Key Specifications / Features

Our Stainless Steel Diaphragm Pump Supplier offers high-quality pneumatic diaphragm pumps with aluminum alloy body options. These pumps deliver a flow rate of 0-35 L/min and can achieve a lift height of 0-55 meters. They operate within a pressure range of 0.22-0.55 MPa and are available in sizes from 1/2 to 1 inch (DN15-DN25). Designed for reliability and efficiency, these pumps are ideal for various industrial applications requiring precise fluid transfer.

Model no.: MV-20250402-PDP-01
Hits: 1
Categories: Pneumatic Diaphragm Pumps
Tags: Stainless Steel Diaphragm Pump, Aluminum Alloy Diaphragm Pump, Pneumatic Diaphragm Pump

Request a quote

Detail Information

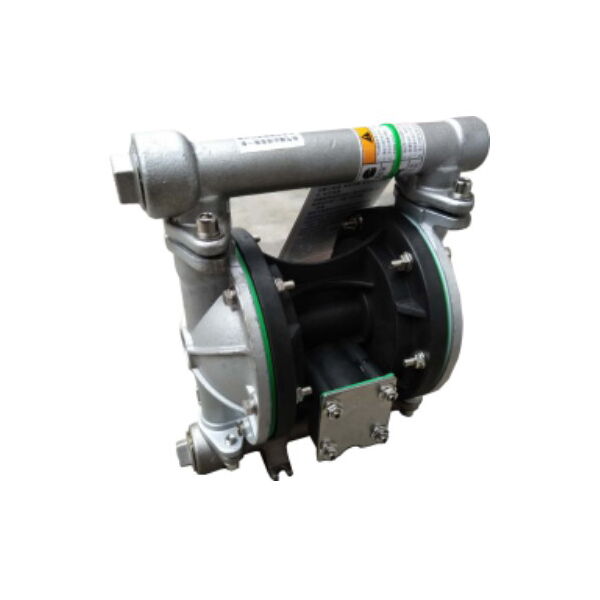

Product Name: Stainless Steel Pneumatic Diaphragm Pump
Body Material: Stainless Steel, Aluminum Alloy
Maximum Flow Rate: 0-35 L/min (LPM)
Suction Lift:
Dry Suction: 2.5 Meters
Wet Suction: 3.5 Meters
Maximum Lift: 0-55 Meters
Outlet Pressure: 0.22-0.55 MPa
Maximum Particle Size: 2.5 mm
Air Inlet Threads Type: G
Air Inlet Threads Size: 1/2 Inch (DN15), 3/4 Inch (DN20), 1 Inch (DN25)
Air Inlet Pipe Size: 8 mm
Air Inlet Pressure Range: 0.22-0.55 MPa
Weight:

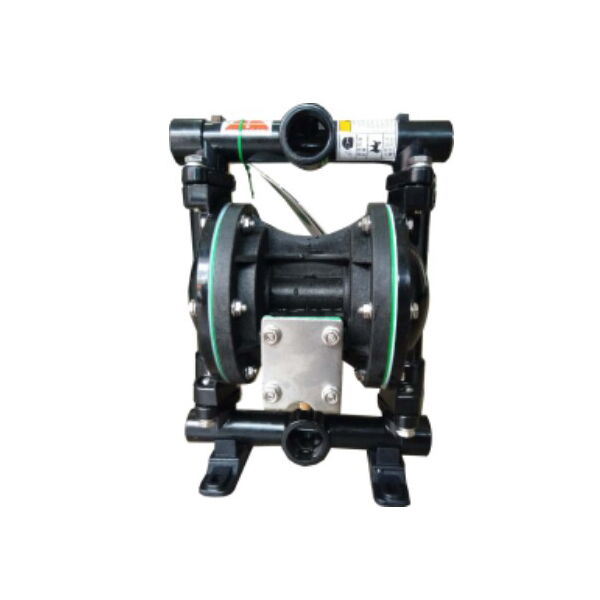

Aluminum Alloy: 3.8 kg
Stainless Steel: 6.5 kg

Note: Choosing a different ball and seat will result in different suction.
