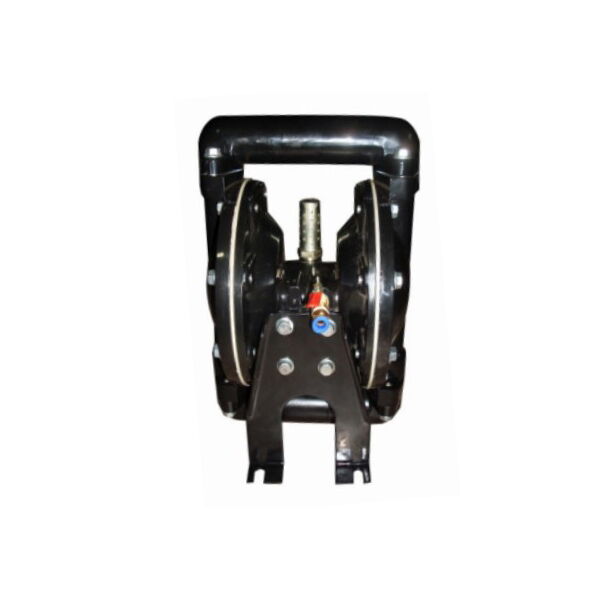

Aluminum Alloy Diaphragm Pump, 1 IN, 0-110 L/min, Pneumatic

Key Specifications / Features

Our Aluminum Alloy Diaphragm Pump Manufacturer specializes in producing pneumatic diaphragm pumps with a flow rate of 0-110 L/min (LPM) and a lift capacity of 0-65 meters. These pumps feature a 1-inch inlet and outlet size and operate within a pressure range of 0.15-0.7 MPa. They are available with a stainless steel body option, ensuring durability and corrosion resistance. Designed for efficiency and reliability, these pumps are suitable for a wide range of industrial applications requiring robust fluid transfer solutions.

Model No.: MV-20250402-PMP-02
Hits: 94
Categories: Pneumatic Diaphragm Pumps
Tags: Aluminum Alloy Diaphragm Pump, 1 Inch Diaphragm Pump, Pneumatic Diaphragm Pump

Request a quote

Detail Information

Product Name: Aluminum Alloy Pneumatic Diaphragm Pump

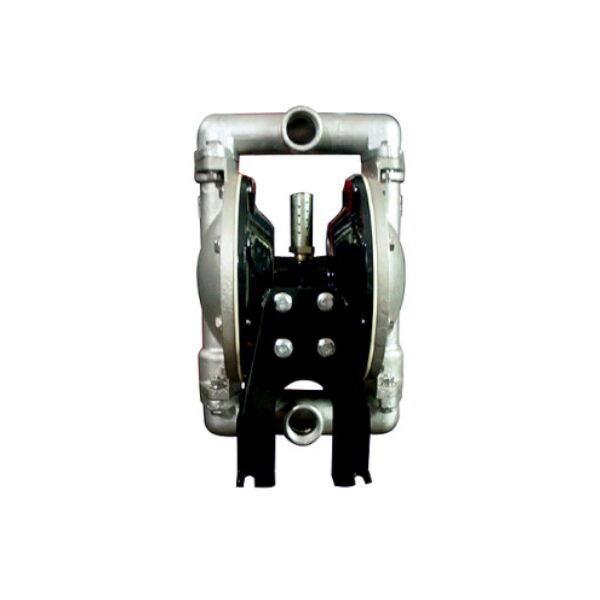

Body Material: Stainless Steel, Aluminum Alloy
Maximum Flow Rate (flooded inlet): 0-110 L/min (LPM)
Suction Lift: 2.5 Meters (Dry suction), 5 Meters (Wet suction)
Maximum Lift: 0-65 Meters
Outlet Pressure: 0.15-0.7 MPa
Maximum Particle Size: 2.4mm
Air inlet threads type: G
Air inlet threads size: 1 Inch (DN25)
Air inlet pipe size: 8mm
Air inlet pressure range: 0.15-0.7 MPa
Net Weight: 8.8 KG (Aluminum Alloy), 12.8 KG (Stainless Steel)

Note: Choosing a different ball and seat will result in different suction.
