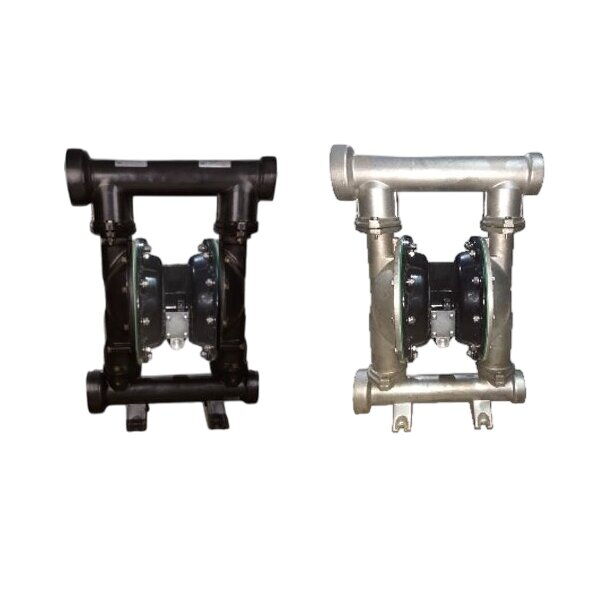

Metallic Diaphragm Pump, DN80/DN100, 0-640 L/min, Pneumatic

Key Specifications / Features

This metallic diaphragm pump is designed for reliable pneumatic operation with an aluminum alloy and SUS stainless steel construction for durability and corrosion resistance. It offers a flow rate range of 0-640 liters per minute and operates at pressures from 0.1 to 0.7 MPa. Available in 3-inch (DN80) and 4-inch (DN100) sizes, this pump is ideal for a variety of industrial applications that require efficient fluid transfer and long-lasting performance in demanding environments.

Model No.: MV-20250407-PMP-01
Hits: 13
Categories: Pneumatic Diaphragm Pumps
Tags: Metallic Diaphragm Pump, Pneumatic Diaphragm Pump, DN100 Diaphragm Pump

Request a quote

Detail Information

Product Name: Metallic Diaphragm Pump
Type: Pneumatic Diaphragm Pump
Body Material: Aluminum Alloy, SUS Stainless Steel
Maximum Flow Rate (flooded inlet): 0-640 L/min (liters per minute)
Suction Lift: Dry suction 2 meters, Wet suction 5 meters
Maximum Lift: 0-70 meters
Outlet pressure: 0.1-0.7 MPa
Maximum Particle Size: 6.4 mm
Air inlet threads type: G
Air inlet threads size: 3 Inch (DN80), 4 Inch (DN100)
Air inlet pipe size: 12 mm or 3/4 Inch
Air inlet pressure range: 0.15-0.7 MPa
Net Weight: 32 KG (Aluminum Alloy), 60 KG (Stainless Steel)
Features:
Many inlet/outlet design, easy to install
Quick to startup, strong self-suction power
Simple structure, strong and durable
