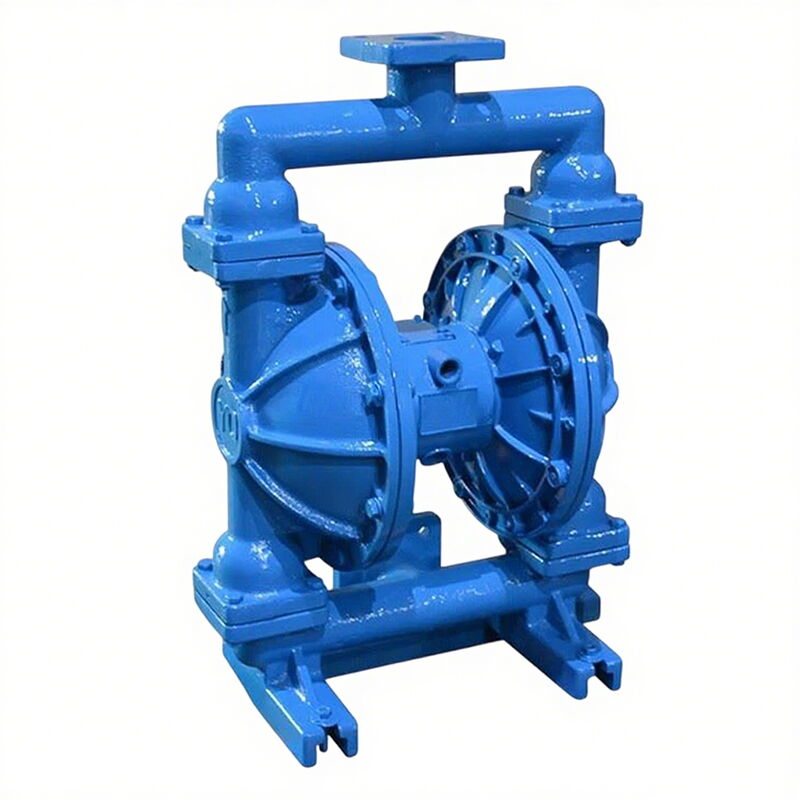

Air Operated Diaphragm Pumps, DN25, 1 Inch, 9 m3/h, 122 PSI

Key Specifications / Features

The China Air Operated Diaphragm Pump Factory offers a robust DN25, 1-inch pump with a maximum capacity of 9 m³/h and max a head of 84 meters. It operates at a pressure of 8.4 bar (122 PSI) and features durable aluminum and cast iron pump casings, making it ideal for various industrial applications requiring high performance and reliability.

Model No.: MV-20250616-PDP-01
Hits: 20
Categories: Pneumatic Diaphragm Pumps
Tags: Pneumatic Diaphragm Pump, DN25 Diaphragm Pump, Air-Operated Diaphragm Pump

Request a quote

Detail Information

Product Name: Air Operated Diaphragm Pumps
Size: DN25 (1 Inch)
Max Capacity: 9 m3/h
Max Head (Lift): 84 m
Max Air Pressure: (8.4 bar) 122 PSI
Max Air Consumption: 1.4 m3/min
Max Particle Diameter: 5 mm
Materials:
Pump Casing Material: Aluminum, Cast Iron, Stainless Steel, PP, PTFE
Diaphragm Material: PTFE, NBR, Viton
Ball Valve Material: NBR, Stainless Steel, PTFE
Valve Seat Material: NBR, PTFE
