Key Specifications / Features

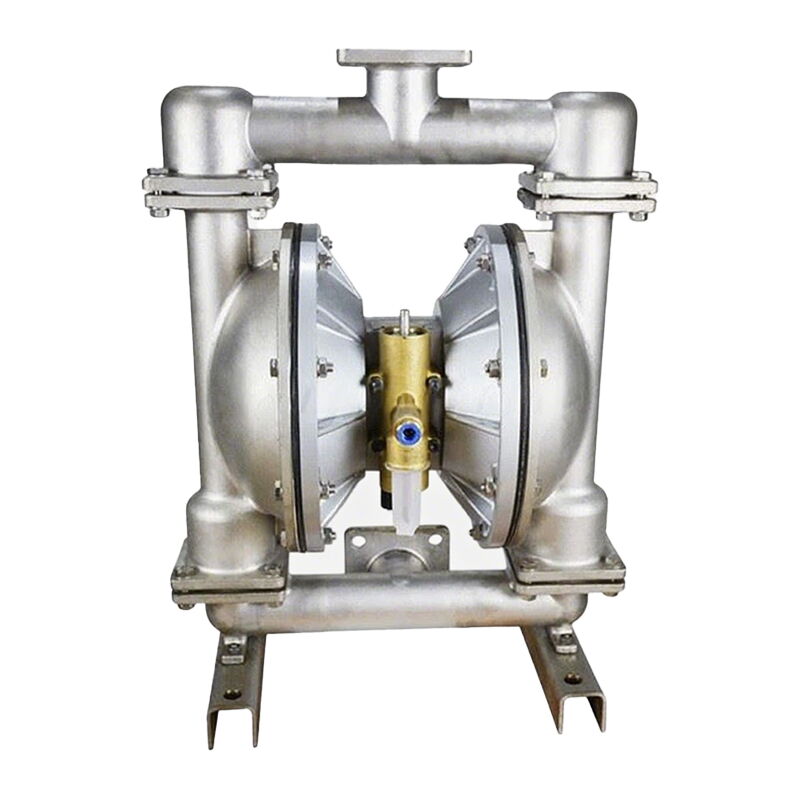

The Stainless Steel Diaphragm Pumps from this manufacturer are high-performance air-operated pumps designed for various industrial applications. These pumps feature a DN40 (1-1/2 inch) inlet and outlet, providing a maximum flow capacity of 12.5 cubic meters per hour. They can achieve a maximum head of 80 meters and operate at a maximum pressure of 8 bar (116 PSI). Made from stainless steel, these pumps offer excellent durability and corrosion resistance, making them suitable for handling a wide range of fluids, including those with abrasive or corrosive properties.
- Model No.: MV-20250617-PDP-01
- Hits: 0
- Categories: Pneumatic Diaphragm Pumps
- Tags: Air-Operated Diaphragm Pump, Stainless Steel Diaphragm Pump, DN40 Diaphragm Pump
Detail Information
Product Name: Stainless Steel Diaphragm Pumps, Air Operated
Size: DN40 (1-1/2 Inch)
Max Capacity: 12.5 m3/h
Max Head (Lift): 80 m
Max Air Pressure: (8 bar) 116 PSI
Max Air Consumption: 1.35 m3/min
Max Particle Diameter: 5 mm
Materials:
Pump Casing Material: Aluminum, Cast Iron, Stainless Steel, PP, PTFE
Diaphragm Material: PTFE, NBR, Viton
Ball Valve Material: NBR, Stainless Steel, PTFE
Valve Seat Material: NBR, PTFE
