(API 624 Additional High Temperature Version)
Key Specifications / Features

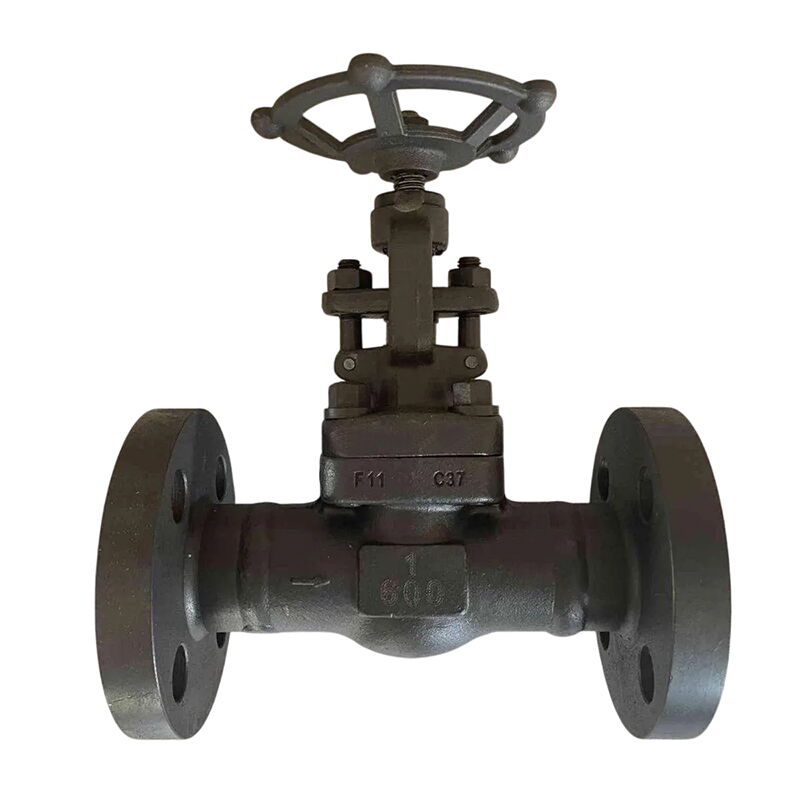

The ASTM A182 F11 Globe Valve Plant produces high-quality globe valves designed in accordance with API 602 standards. These valves feature forged alloy steel bodies made from ASTM A182 F11 material, ensuring durability and reliability in demanding applications. With a 1-inch (DN25) size and a Class 600 LB (PN100) pressure rating, they are engineered for high-pressure environments. The valves are designed to achieve low emissions, making them environmentally friendly and suitable for applications with strict emission requirements. They feature RF (Raised Face) flanged ends.
- Model no.: MV-20250607-FSGLV-01
- Hits: 0
- Categories: Forged Steel Globe Valve
- Tags: Class 600 LB Globe Valve, 1 Inch Globe Valve, ASTM A182 F11 Globe Valve
Detail Information
Product Name: ASTM A182 F11 Globe Valve
Design Standard: API 602
Body Material: ASTM A182 F11
Size: 1 Inch, DN25
Pressure: Class 600 LB, PN100
Operation: Handwheel
End Connection: RF Flanged
Standards:
Flanged Ends: ASME B16.5
Face to Face: ASME B16.10
Test & Inspection: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: Forged Carbon, Stainless, Alloy Steel
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-32 Inch
End Connection: Flanged, BW
Pressure Range: Class 150-2500 LB
Temperature Range: -29°C to 429°C
Application: Water, Steam, Gas, ect.
The packing used in forged valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.
Type Test Report for 2-Inch Gate Valve
According to ISO 15848-1 at 400°C
Type Test Report for 1-Inch Globe Valve
According to ISO 15848-1 at 400°C
Type Test Report for 3/4-Inch Gate Valve
According to ISO 15848-1 at 400°C
The 0.5-inch forged steel gate valve in accordance with API 602 is tested for an ISO 15848-2 Class A leakage rate below 50 PPMV, using the M600 model low emission packing.
The 1-inch forged steel gate valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M600 model low-emission packing.
The 1.5-inch forged steel globe valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M800 model low-emission packing.
The API 624 test for a 2-inch forged steel gate valve in accordance with API 602 uses the M600 model low-emission packing.
Similar Products

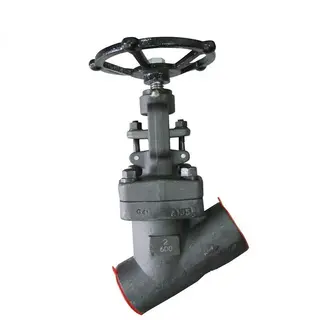

Y Pattern Globe Valve, API 602, ASTM A105N, 2 IN, CL600, SW
Carbon Steel ASTM A105N Globe Valve, API 602, 1 Inch, CL1500

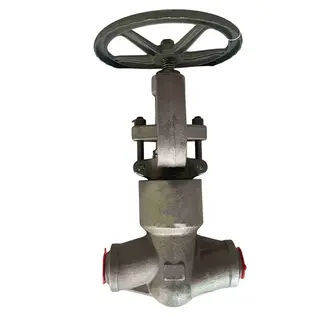

Pressure Seal Bonnet Globe Valve, API 602, F11, 2 IN, CL2500
