(API 624 Additional High Temperature Version)
Key Specifications / Features

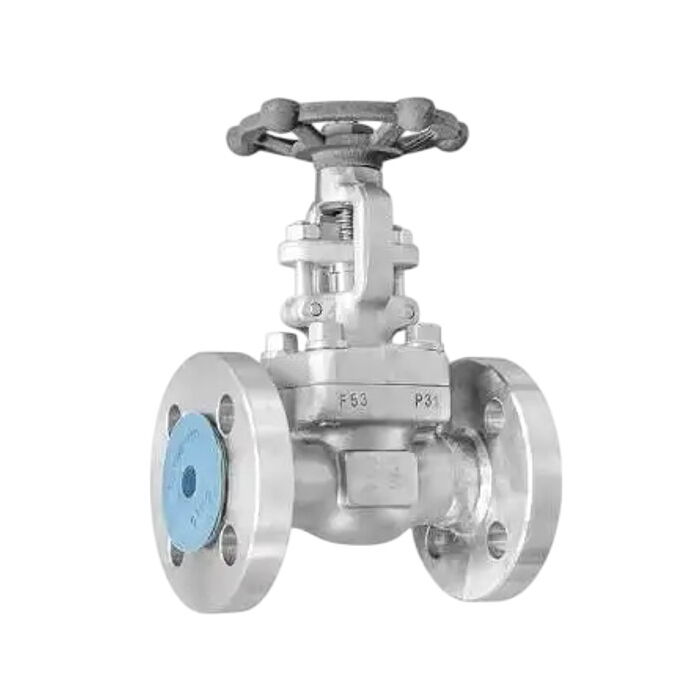

The ASTM A182 F53 gate valve from China is a high-quality valve designed to meet stringent industry standards. It features a super duplex stainless steel body, ensuring excellent corrosion resistance and durability. The valve is designed in accordance with ISO 15761 and GB/T 12234 standards, with a nominal size of DN25 (1 inch) and a pressure rating of PN25 (Class 300 LB). It features a rising stem handwheel operation, flanged ends, and a low-emission design to ensure environmental compliance and safety.
- Model no.: MV-20250606-FSGTV-05
- Hits: 8
- Categories: Forged Steel Gate Valve
- Tags: 1 Inch Gate Valve, ISO 15761 Gate Valve, ASTM A182 F53 Gate Valve
Detail Information
Product Name: ASTM A182 F53 Gate Valve, Rising Stem
Design Standard: ISO 15761
Body Material: ASTM A182 F53
Size: DN25, 1 Inch
Pressure: PN25, Class 300 LB
Operation: Handwheel
End Connection: Flanged Ends
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Standards:
Design & Manufacturing: GB/T 12234, ISO 15761, API 602
Face to Face: EN 558, ASME B16.10, GB/T 12221
Test & Inspection: API 598
Product Range
Body Materials: Forged Carbon, Stainless, Alloy Steel
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-32 Inch (DN15-DN800)
End Connection: Flanged, BW
Pressure Range: Class 150-2500 LB (PN16-PN420)
Working Temperature: -196°C to 650°C
Application: Water, Oil & Gas
The packing used in forged valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.
Type Test Report for 2-Inch Gate Valve
According to ISO 15848-1 at 400°C
Type Test Report for 1-Inch Globe Valve
According to ISO 15848-1 at 400°C
Type Test Report for 3/4-Inch Gate Valve
According to ISO 15848-1 at 400°C
The 0.5-inch forged steel gate valve in accordance with API 602 is tested for an ISO 15848-2 Class A leakage rate below 50 PPMV, using the M600 model low emission packing.
The 1-inch forged steel gate valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M600 model low-emission packing.
The 1.5-inch forged steel globe valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M800 model low-emission packing.
The API 624 test for a 2-inch forged steel gate valve in accordance with API 602 uses the M600 model low-emission packing.
