Key Specifications / Features

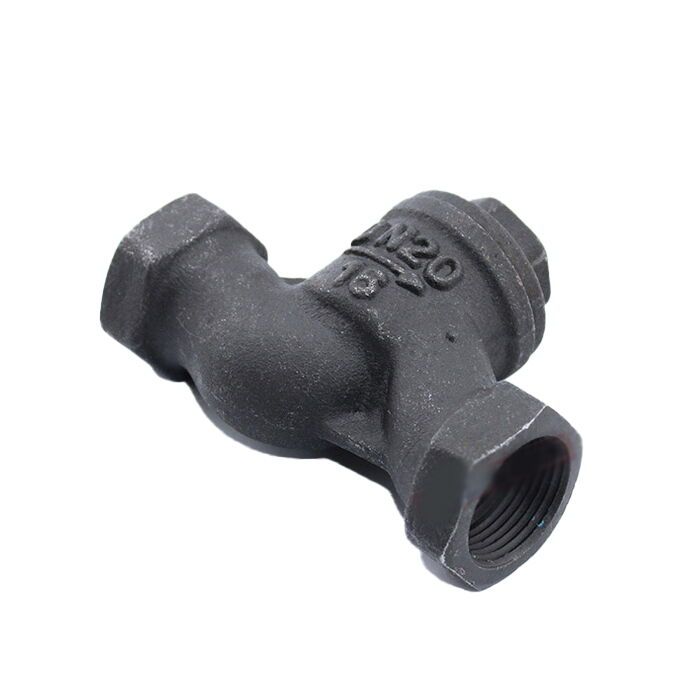

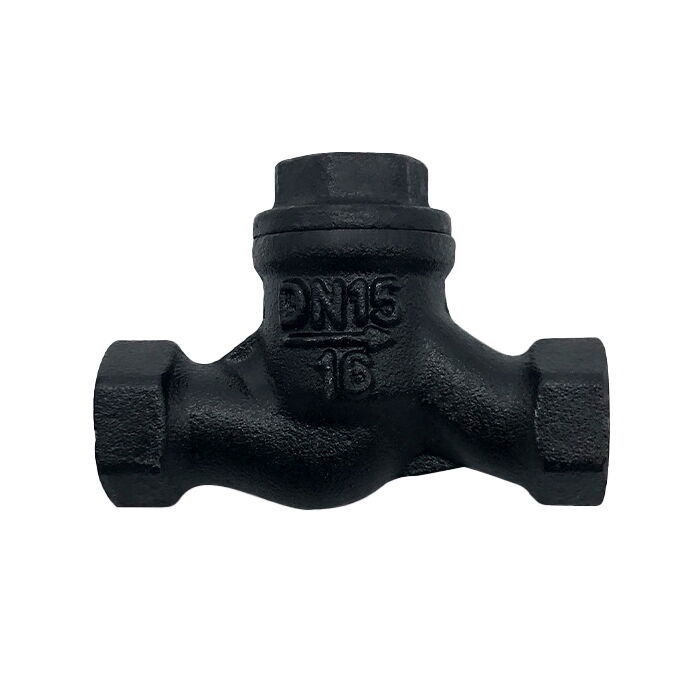

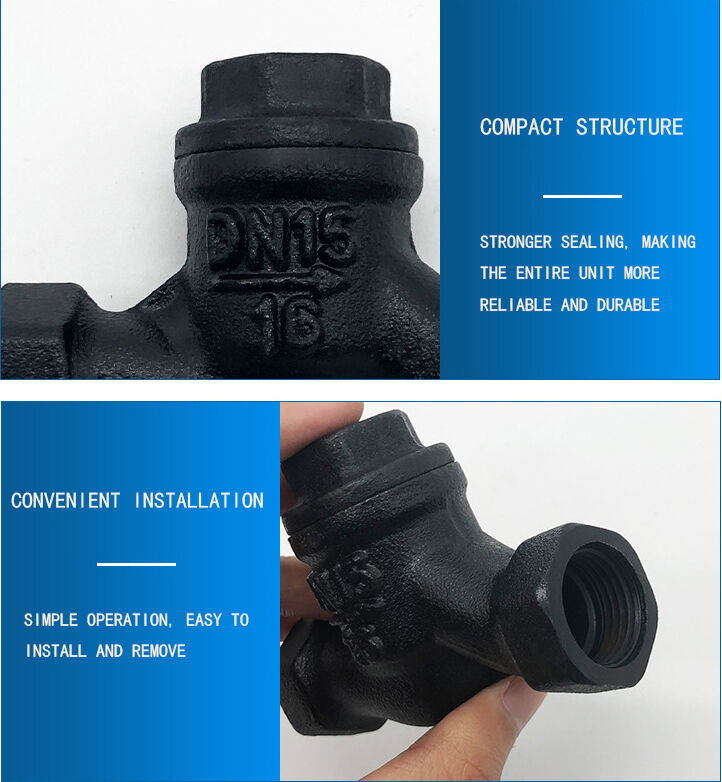

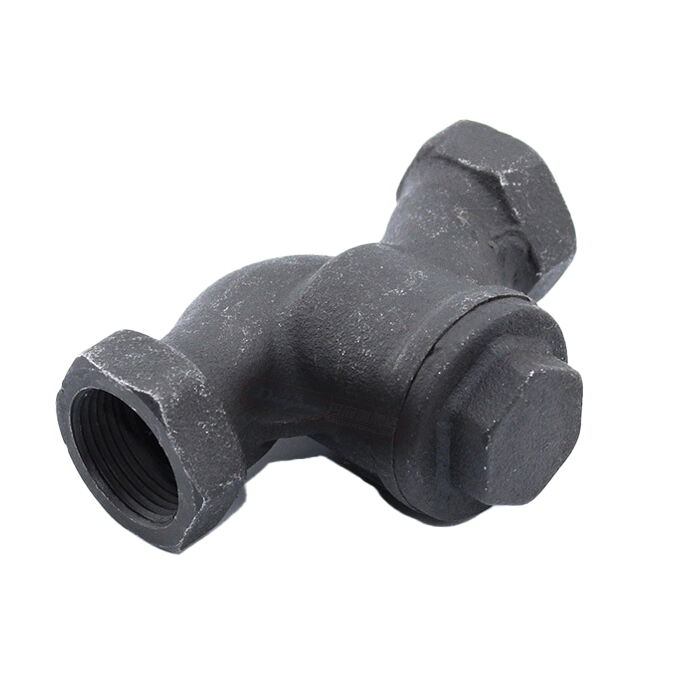

The ASTM A216 WCB Lift Check Valves Plant specializes in producing high-quality lift check valves with cast carbon steel bodies and PTFE packing. These valves are designed for reliable fluid control and are available in sizes ranging from DN15 to DN50 (1/2 to 2 inches). They are rated for pressures from PN16 to PN64 and Class 150 to 400 LB, making them suitable for a wide range of industrial applications. The valves feature threaded end connections for easy installation and maintenance.
- Model no.: MV-20250702-CSCV-01
- Hits: 0
- Categories: Cast Steel Check Valve
- Tags: Carbon Steel Check Valve, Lift Check Valve, ASTM A216 WCB Check Valve
Detail Information
Product Name: Carbon Steel Lift Check Valve
Type: Lift Check Valve
Body Material: Carbon Steel ASTM A216 WCB
Packing Material: PTFE
Size Range: DN15-DN50, 1/2-2 Inch
Pressure Range: PN16, PN25, PN40, PN64, Class 150-400 LB
End Connection: Threaded
Temperature Range: -29°C to 180°C
Medium: Water, Oil, Gas, etc
Carbon Steel Lift Check Valve Main Part Materials
|
Description of Parts |
Material |
|
Body |
ASTM A216 WCB |
|
Bonnet |
1Cr18Ni9Ti |
|
Sealing |
D507 |
|
Packing |
PTFE |
Carbon Steel Lift Check Valve Performance Specifications
|
Nominal Pressure |
PN1.6, 2.5, 4.0, 6.4MPa |
|
Strength Test Pressure |
PT2.4, 3.8, 6.0, 9.6MPa |
|
High Pressure Seal Test Pressure |
1.8, 2.8, 4.4, 7.1MPa |
|
Medium |
Water, Oil, Gas |
|
Suitable Temperature |
-29°C to 180°C |
Carbon Steel Lift Check Valve Parameters
|
Nominal Diameter |
Weight (kg) |
Length (mm) |
|
DN15 |
0.37 |
87 |
|
DN20 |
0.46 |
97 |
|
DN25 |
0.65 |
109 |
|
DN32 |
1.17 |
139 |
|
DN40 |
1.76 |
170 |
|
DN50 |
2.63 |
197 |
