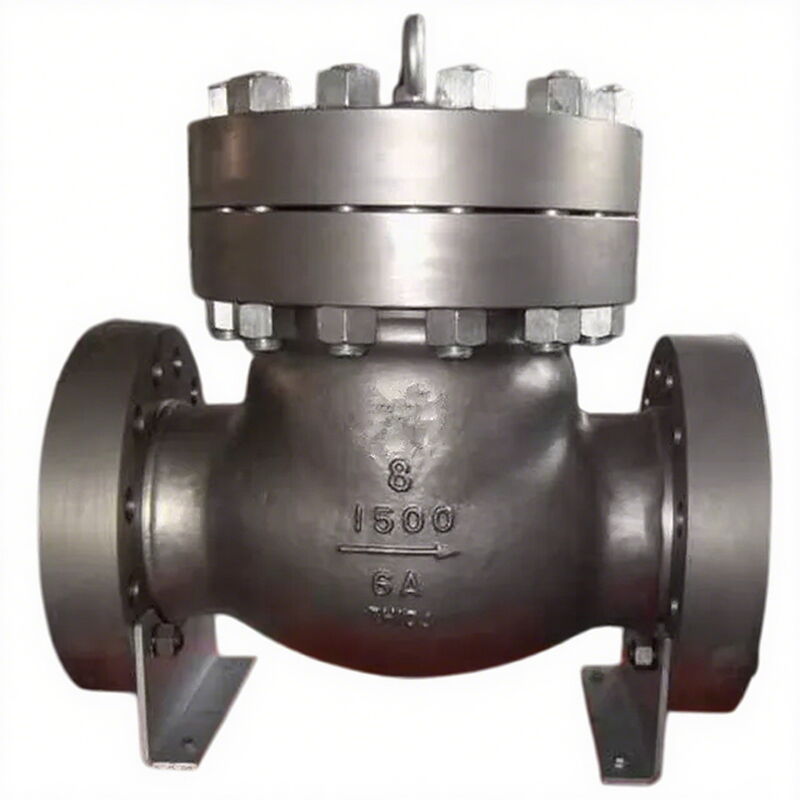

ASTM A995 6A Swing Check Valve, BS 1868, 8 Inch, CL1500, RTJ
Compliant with TA-LUFT/ISO 15848-1/API 624
(API 624 Additional High Temperature Version)

Key Specifications / Features

The ASTM A995 6A Swing Check Valve Plant produces high-quality swing check valves that adhere to API 6D and BS 1868 standards. These valves are made from duplex stainless steel, offering excellent corrosion resistance and mechanical strength. With an 8-inch (DN200) diameter and a Class 1500 LB pressure rating (PN250), they are designed for high-pressure applications. The valves feature a bolted bonnet for secure assembly and RTJ (ring-type joint) ends for reliable sealing.

Detail Information

Product Name: ASTM A995 6A Swing Check Valve
Type: Swing Check Valve
Design Standard: API 6D, BS 1868
Body Material: ASTM A995 6A, Duplex Stainless Steel
Trim Material: ASTM A995 6A
Size: 8 Inch, DN200
Pressure: Class 1500 LB, PN250
End Connection: RTJ Flanged
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect

Product RangeM800 Graphite Packing used in Cast Steel Valves

Body Materials: ASTM A216 WCB, WCC, A351 CF3, CF8, ASTM A995 A4, 5A, 6A, etc
Gasket & Packing Material: Graphite, PTFE
Size Range: 2-24 Inch, DN50-DN600
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: RF, RTJ, BW
Temperature Range: -29°C to 429°C
Medium: Water, Oil, Gas, etc


The packing used in cast steel valves is the M800 series graphite packing,

with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.

The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.

The static leakage rate is below 6 PPM.

All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT



ISO 15848-1 Valve Tested Case Example: NPS4 Class 300 Valve

ISO 15848-1 Valve Tested Case Example

4-inch 300 LB Globe Valve: ISO 15848-1 Test at Ambient Temperature for 205 Cycles, High Leakage Rate of 1.8×10−7, Maximum Body Leakage at 11.6 PPMV

API 624 Valve Test Case 1: 12-inch 150 LB Gate Valve

API 624 Valve Test Case 1

API 624 Valve Test Data















12-inch 150 LB Gate Valve

API 624 Test

Maximum Packing Leakage: 46.7 PPMv

















API 624 Valve Test Case 2: 12-inch 600 LB Gate Valve

API 624 Valve Test, 12-inch 150 LB Gate Valve

API 624 Valve Test Data (12-inch 150 LB Gate Valve)















12-inch 600 LB Gate Valve
API 624 Testing
Maximum packing leakage: 32 ppmv



















Fire Test Certification of Valve Packing

Fire Test Certification of Valve Packing

Fire Test Report and Certification for 4-inch Gate Valve with M800 Packing



ISO 15848-1 Valve Tested Case Example: NPS12 Class 300 Valve

ISO 15848-1 Valve Tested Case Example: NPS12 Class 300 Valve

12-inch 300 LB Gate Valve

ISO 15848-1 Test at Ambient Temperature for 205 Cycles

High Leakage Rate: 1.6×10−6

Maximum Body Leakage: 7.7 PPMV



The API 624 test for the API 600 WCB 12-inch 150 LB gate valve utilized an M600 low-emission graphite packing set.

The ISO 15848-2 Type A test for the API 600 WCB 2-inch 150 LB gate valve, which requires emissions below 50 PPMV, was conducted using an M600 low-emission graphite packing set.
