(API 624 Additional High Temperature Version)
Key Specifications / Features

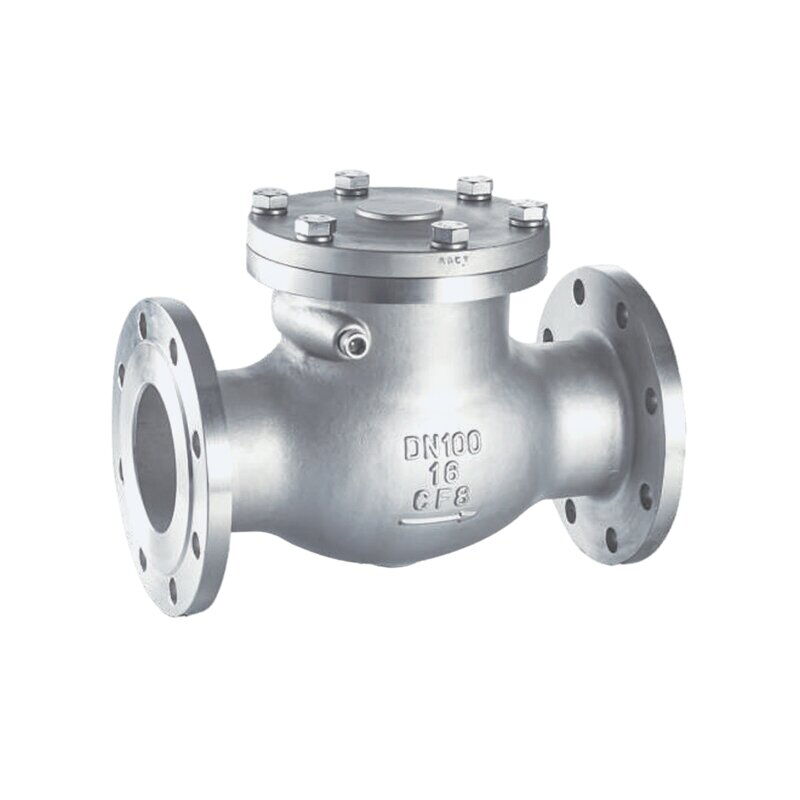

Our BS 1868 Swing Check Valve is a high-quality swing check valve through investment casting. These valves are made from stainless steel ASTM A351 CF8, ensuring durability and corrosion resistance. Available in a DN100 (4-inch) size with a PN16 (Class 150 LB) pressure rating, they are designed for low emission and excellent sealing performance. The investment casting process guarantees precision and reliability.
- Model no.: MV-20250402-CSCV-01
- Hits: 0
- Categories: Cast Steel Check Valve
- Tags: Swing Check Valve, BS 1868 Check Valve, ASTM A351 CF8 Check Valve
Detail Information
Product Name: BS 1868 Swing Check Valve
Features: Investment Casting
Design Standard: BS 1868
Body Material: ASTM A351 CF8
Size: DN100, 4 Inch
Pressure: PN16, Class 150 LB
End: Flanged
Product Range
Design Standard: BS 1868, API 594, GB/T 12236
Material: ASTM A216 WCB + 13Cr, A351 CF8, CF8M
Flange Standard: DIN 2535-2547, ISO 7005-1, JB/T 79.1
Face to Face: ISO 5752, EN 558-1, GB/T 12221
Testing Standard: API 598, GB/T 13927, JB/T 9092
Working Temperature: -20°C to 180°C
Size: DN15–DN300
Working Pressure: PN40 for DN15–DN50, PN16 for DN65–DN300
Industries: Petroleum, Chemical, Natural Gas, Biochemical, Pharmaceutical, Environmental Protection, New Energy
The packing used in cast steel valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT
ISO 15848-1 Valve Tested Case Example: NPS4 Class 300 Valve
4-inch 300 LB Globe Valve: ISO 15848-1 Test at Ambient Temperature for 205 Cycles, High Leakage Rate of 1.8×10−7, Maximum Body Leakage at 11.6 PPMV
API 624 Valve Test Case 1: 12-inch 150 LB Gate Valve
12-inch 150 LB Gate Valve
API 624 Test
Maximum Packing Leakage: 46.7 PPMv
API 624 Valve Test Case 2： 12-inch 600 LB Gate Valve
12-inch 600 LB Gate Valve
API 624 Testing
Maximum packing leakage: 32 ppmv
Fire Test Certification of Valve Packing
Fire Test Report and Certification for 4-inch Gate Valve with M800 Packing
ISO 15848-1 Valve Tested Case Example: NPS12 Class 300 Valve
12-inch 300 LB Gate Valve
ISO 15848-1 Test at Ambient Temperature for 205 Cycles
High Leakage Rate: 1.6×10−6
Maximum Body Leakage: 7.7 PPMV
The API 624 test for the API 600 WCB 12-inch 150 LB gate valve utilized an M600 low-emission graphite packing set.
The ISO 15848-2 Type A test for the API 600 WCB 2-inch 150 LB gate valve, which requires emissions below 50 PPMV, was conducted using an M600 low-emission graphite packing set.
