(API 624 Additional High Temperature Version)
Key Specifications / Features

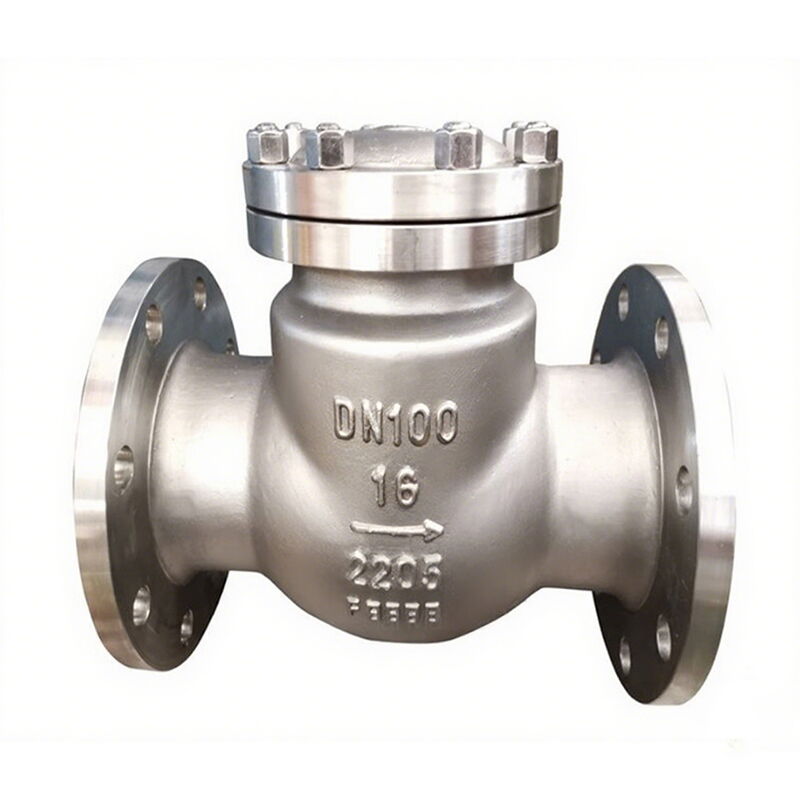

The Duplex 2205 Swing Check Valve is manufactured to stringent standards including BS 1868 and ASME B16.34. This valve features a durable duplex stainless steel body, offering excellent resistance to corrosion and high mechanical strength. With a DN100 (4-inch) size and a pressure rating of PN16 (Class 150 LB), it is designed for reliable performance in demanding applications. The bolted bonnet design ensures secure construction and easy maintenance, while the RF flanged ends facilitate seamless integration into existing systems
- Model No.: MV-20250619-CSCV-01
- Hits: 4
- Categories: Cast Steel Check Valve
- Tags: Duplex 2205 Check Valve, ASME B16.34 Check Valve, Swing Check Valve
Detail Information
Product Name: Duplex 2205 Swing Check Valve
Type: Swing Check Valve
Design Standard: BS 1868, ASME B16.34
Body Material: Duplex 2205
Size: DN100, 4 Inch
Pressure: PN16, Class 150 LB
End Connection: RF Flanged
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-32 Inch, DN15-DN800
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: RF, RTJ, SW, BW
Temperature Range: -29°C to 429°C
Medium: Water, Oil, Gas, etc
The packing used in cast steel valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT
ISO 15848-1 Valve Tested Case Example: NPS4 Class 300 Valve
4-inch 300 LB Globe Valve: ISO 15848-1 Test at Ambient Temperature for 205 Cycles, High Leakage Rate of 1.8×10−7, Maximum Body Leakage at 11.6 PPMV
API 624 Valve Test Case 1: 12-inch 150 LB Gate Valve
12-inch 150 LB Gate Valve
API 624 Test
Maximum Packing Leakage: 46.7 PPMv
API 624 Valve Test Case 2： 12-inch 600 LB Gate Valve
12-inch 600 LB Gate Valve
API 624 Testing
Maximum packing leakage: 32 ppmv
Fire Test Certification of Valve Packing
Fire Test Report and Certification for 4-inch Gate Valve with M800 Packing
ISO 15848-1 Valve Tested Case Example: NPS12 Class 300 Valve
12-inch 300 LB Gate Valve
ISO 15848-1 Test at Ambient Temperature for 205 Cycles
High Leakage Rate: 1.6×10−6
Maximum Body Leakage: 7.7 PPMV
The API 624 test for the API 600 WCB 12-inch 150 LB gate valve utilized an M600 low-emission graphite packing set.
The ISO 15848-2 Type A test for the API 600 WCB 2-inch 150 LB gate valve, which requires emissions below 50 PPMV, was conducted using an M600 low-emission graphite packing set.
