(API 624 Additional High Temperature Version)
Key Specifications / Features
The Bellows Sealed Gate Valve from our supplier is a high-quality valve designed for reliable and leak-free operation in industrial applications. It complies with the DIN 3352 standard and features a robust ASTM A351 CF3 cast stainless steel body, ensuring excellent corrosion resistance and durability. The wedge is made from ASTM A182 F316Ti, enhancing the valve's strength and reliability. With a DN80 (3-inch) size and a rating of PN40 (Class 300 LB), it is capable of handling significant pressure and flow. The valve is equipped with RF (Raised Face) flanged ends for secure and leak-free connections.
- Model no.: MV-20250621-CSGTV-01
- Hits: 0
- Categories: Cast Steel Gate Valve
- Tags: DIN 3352 Gate Valve, Bellows Sealed Gate Valve, ASTM A351 CF3 Gate Valve
Detail Information

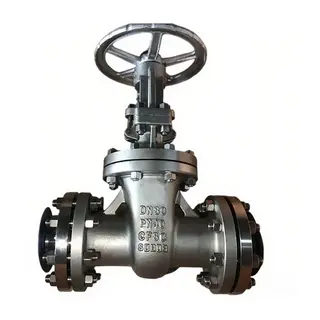

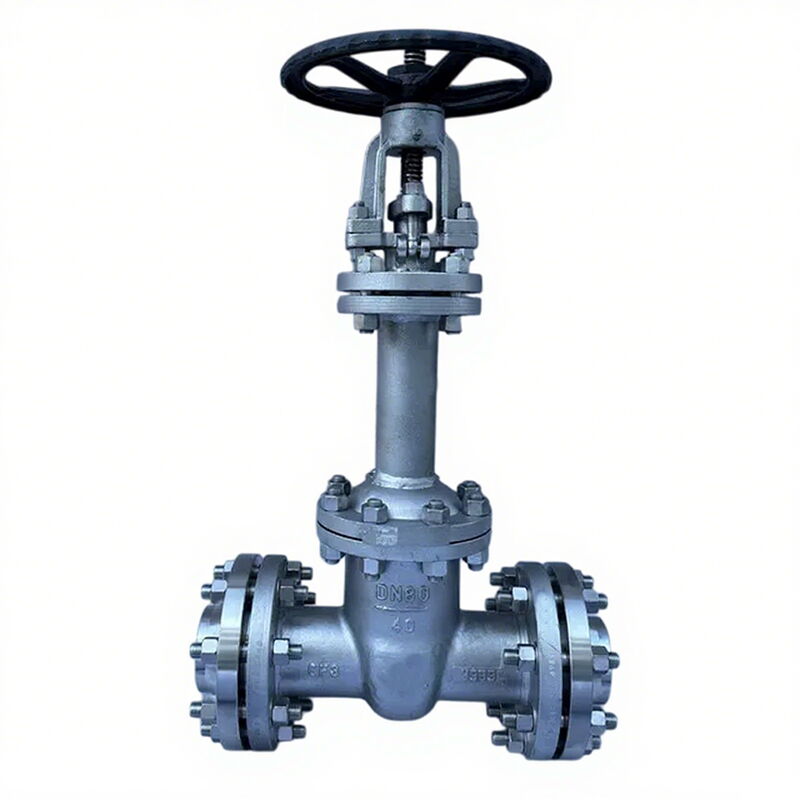

Product Name: Bellows Sealed Gate Valves
Design Standard: DIN 3352
Body Material: ASTM A351 CF3
Wedge Material: ASTM A182 F316Ti
Size: DN80, 3 Inch
Pressure: PN40, Class 300 LB
End Connection: RF Flanged
Operation: Handwheel
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Materials: ASTM A216 WCB, A351 CF3, CF8, CF8M, CF3M
Size: 1/2-24 Inch, DN15-DN600
Working Pressure: Class 150-600 LB (PN16, PN25, PN40, PN64, PN100)
End Connection: RF, RTJ, FF
Flange Standard: DIN 2543-2545
Face to Face Standard: DIN 3202
Testing Standard: DIN 3230
Working Temperature: -29°C to 550°C
Medium: Water, Oil, Gas, Steam, etc.
The packing used in cast steel valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT
ISO 15848-1 Valve Tested Case Example: NPS4 Class 300 Valve
4-inch 300 LB Globe Valve: ISO 15848-1 Test at Ambient Temperature for 205 Cycles, High Leakage Rate of 1.8×10−7, Maximum Body Leakage at 11.6 PPMV
API 624 Valve Test Case 1: 12-inch 150 LB Gate Valve
12-inch 150 LB Gate Valve
API 624 Test
Maximum Packing Leakage: 46.7 PPMv
API 624 Valve Test Case 2： 12-inch 600 LB Gate Valve
12-inch 600 LB Gate Valve
API 624 Testing
Maximum packing leakage: 32 ppmv
Fire Test Certification of Valve Packing
Fire Test Report and Certification for 4-inch Gate Valve with M800 Packing
ISO 15848-1 Valve Tested Case Example: NPS12 Class 300 Valve
12-inch 300 LB Gate Valve
ISO 15848-1 Test at Ambient Temperature for 205 Cycles
High Leakage Rate: 1.6×10−6
Maximum Body Leakage: 7.7 PPMV
The API 624 test for the API 600 WCB 12-inch 150 LB gate valve utilized an M600 low-emission graphite packing set.
The ISO 15848-2 Type A test for the API 600 WCB 2-inch 150 LB gate valve, which requires emissions below 50 PPMV, was conducted using an M600 low-emission graphite packing set.
