(API 624 Additional High Temperature Version)
Key Specifications / Features

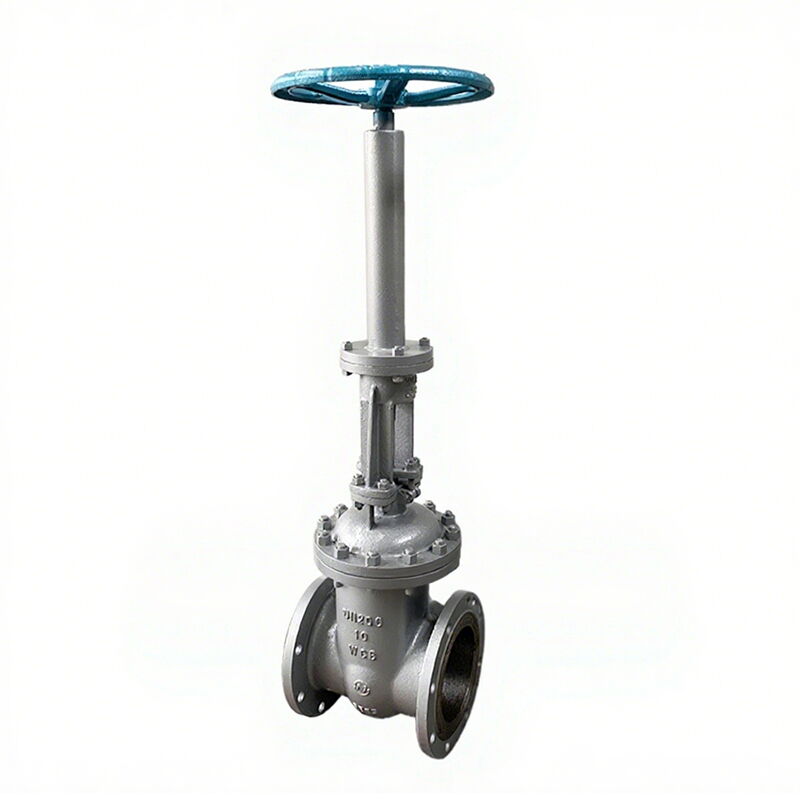

Our Extended Stem Gate Valve factory in China produces high-quality gate valves that meet API 600 standards. These valves feature a robust ASTM A216 WCB carbon steel body, ensuring durability and reliability in various industrial applications. With a DN200 (8-inch) size and a pressure rating of PN10 (Class 150 LB), they are designed for optimal performance under specified conditions. The valves come with RF (raised face) flanged ends for secure connections and are operated by a handwheel, providing easy control.
- Model No.: MV-20250620-CSGTV-02
- Hits: 3
- Categories: Cast Steel Gate Valve
- Tags: ASTM A216 WCB Gate Valve, API 600 Gate Valve, Extended Stem Gate Valve
Detail Information
Product Name: Extended Stem Gate Valve
Design Standard: API 600
Body & Wedge Material: ASTM A216 WCB Carbon Steel
Size: DN200, 8 Inch
Pressure: PN10, Class 150 LB
End Connection: RF Flanged
Operation: Handwheel
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Materials: Carbon, Stainless, Alloy Steel, ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M
Size: 1/2-24 Inch, DN15-DN600
Working Pressure: Class 150 LB, 300 LB, 600 LB, PN16, PN25, PN40, PN64, PN100
End Connection: RF, RTJ, SW, BW
Design Standard: API 600, ASME B16.34
Flange Standard: ASME B16.5
Face to Face Standard: ASME B16.10
Testing Standard: API 598
Working Temperature: -29°C to 550°C
Medium: Water, Oil, Gas, Acids, etc.
The packing used in cast steel valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT
ISO 15848-1 Valve Tested Case Example: NPS4 Class 300 Valve
4-inch 300 LB Globe Valve: ISO 15848-1 Test at Ambient Temperature for 205 Cycles, High Leakage Rate of 1.8×10−7, Maximum Body Leakage at 11.6 PPMV
API 624 Valve Test Case 1: 12-inch 150 LB Gate Valve
12-inch 150 LB Gate Valve
API 624 Test
Maximum Packing Leakage: 46.7 PPMv
API 624 Valve Test Case 2： 12-inch 600 LB Gate Valve
12-inch 600 LB Gate Valve
API 624 Testing
Maximum packing leakage: 32 ppmv
Fire Test Certification of Valve Packing
Fire Test Report and Certification for 4-inch Gate Valve with M800 Packing
ISO 15848-1 Valve Tested Case Example: NPS12 Class 300 Valve
12-inch 300 LB Gate Valve
ISO 15848-1 Test at Ambient Temperature for 205 Cycles
High Leakage Rate: 1.6×10−6
Maximum Body Leakage: 7.7 PPMV
The API 624 test for the API 600 WCB 12-inch 150 LB gate valve utilized an M600 low-emission graphite packing set.
The ISO 15848-2 Type A test for the API 600 WCB 2-inch 150 LB gate valve, which requires emissions below 50 PPMV, was conducted using an M600 low-emission graphite packing set.
