(API 624 Additional High Temperature Version)
Key Specifications / Features

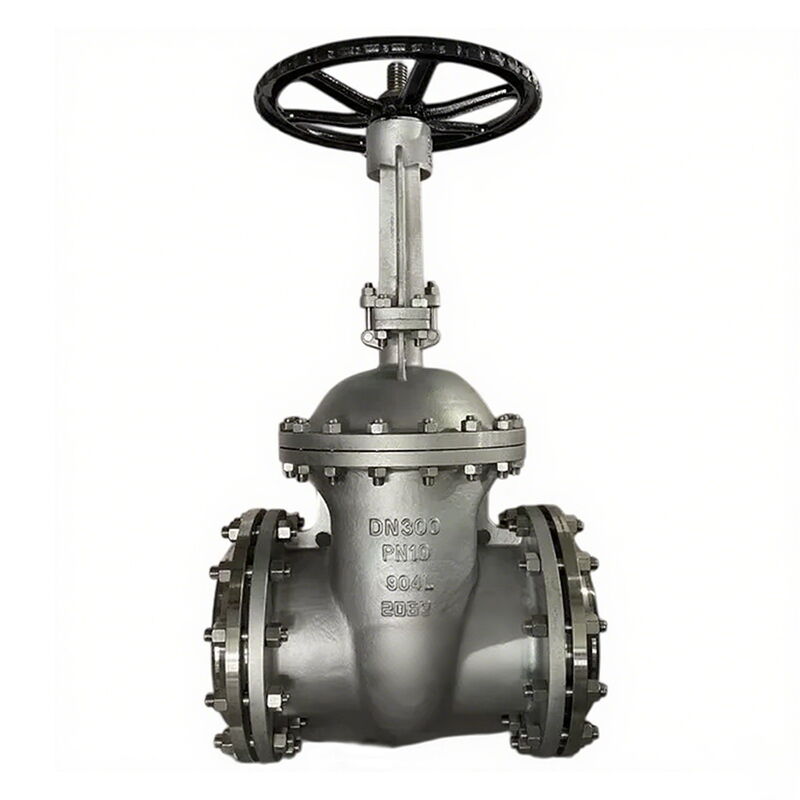

The SS 904L Wedge Gate Valve from our manufacturer is a high-performance valve designed in accordance with API 600 standards. It features a cast stainless steel body made from SS 904L, offering exceptional corrosion resistance and durability. With a DN300 (12-inch) size and a rating of PN10 (Class 150 LB), this valve is well-suited for handling significant flow rates and pressures. The valve is equipped with RF (Raised Face) flanged ends for secure and leak-free connections. It also includes a handwheel for manual operation.
- Model No.: MV-20250621-CSGTV-02
- Hits: 9
- Categories: Cast Steel Gate Valve
- Tags: SS 904L Gate Valve, API 600 Gate Valve, 12 Inch Gate Valve
Detail Information
Product Name: SS 904L Wedge Gate Valve
Design Standard: API 600
Body Material: SS 904L
Trim Material: SS 904L
Size: DN300, 12 Inch
Pressure: PN10, Class 150 LB
End Connection: RF Flanged
Operation: Handwheel
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Materials: Carbon Steel, Stainless Steel, Alloy Steel
Size: DN15-DN600, 1/2-24 Inch
Working Pressure: PN16-PN100, Class 150-600 LB
End Connection: Flanged, Welded
Design Standard: API 600, ASME B16.34
Flange Standard: ASME B16.5
Face to Face Standard: ASME B16.10
Testing Standard: API 598
Working Temperature: -29°C to 550°C
Medium: Water, Oil, Gas, Acids, etc.
The packing used in cast steel valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT
ISO 15848-1 Valve Tested Case Example: NPS4 Class 300 Valve
4-inch 300 LB Globe Valve: ISO 15848-1 Test at Ambient Temperature for 205 Cycles, High Leakage Rate of 1.8×10−7, Maximum Body Leakage at 11.6 PPMV
API 624 Valve Test Case 1: 12-inch 150 LB Gate Valve
12-inch 150 LB Gate Valve
API 624 Test
Maximum Packing Leakage: 46.7 PPMv
API 624 Valve Test Case 2： 12-inch 600 LB Gate Valve
12-inch 600 LB Gate Valve
API 624 Testing
Maximum packing leakage: 32 ppmv
Fire Test Certification of Valve Packing
Fire Test Report and Certification for 4-inch Gate Valve with M800 Packing
ISO 15848-1 Valve Tested Case Example: NPS12 Class 300 Valve
12-inch 300 LB Gate Valve
ISO 15848-1 Test at Ambient Temperature for 205 Cycles
High Leakage Rate: 1.6×10−6
Maximum Body Leakage: 7.7 PPMV
The API 624 test for the API 600 WCB 12-inch 150 LB gate valve utilized an M600 low-emission graphite packing set.
The ISO 15848-2 Type A test for the API 600 WCB 2-inch 150 LB gate valve, which requires emissions below 50 PPMV, was conducted using an M600 low-emission graphite packing set.
