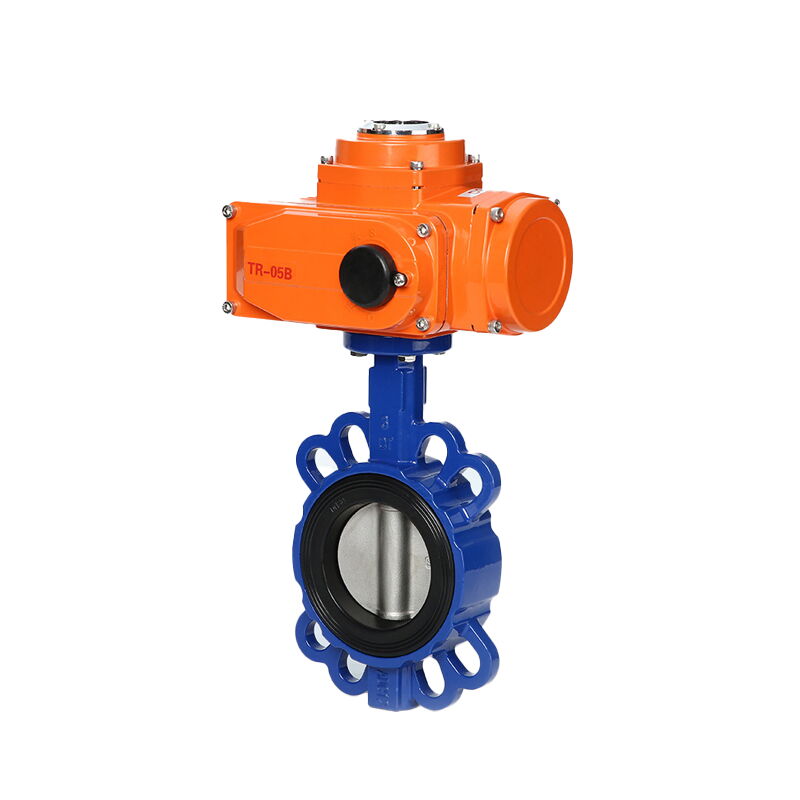

Electric Actuated Butterfly Valve, CS, SS, 1-24 Inch, CL150

Compliant with TA-LUFT/ISO 15848-1/API 624
(API 624 Additional High Temperature Version)

Key Specifications / Features

The Electric Actuated Butterfly Valve Manufacturer specializes in producing soft seal butterfly valves with body materials including cast iron, carbon steel, and stainless steel. These valves are available in sizes ranging from DN25 to DN600 (1-24 inches) and are rated for Class 150 LB pressure. They are designed for reliable performance and ease of operation, making them suitable for a variety of industrial applications.

Model No.: MV-20250715-BFV-04
Hits: 15
Categories: Cryogenic Butterfly Valve
Tags: Electric Actuated Butterfly Valve, Cast Iron Butterfly Valve, Carbon Steel Butterfly Valve

Request a quote

Detail Information

Product Name: Electric Soft Seal Butterfly Valve
Body Material: Cast Iron, Carbon Steel, Stainless Steel, etc
Nominal Diameter: DN25-DN600, 1-24 Inches
Rated Pressure: 1.0MPA 1.6MPA, PN10, PN16, Class 150 LB
Connection Method: Clamped, Flanged
Ambient Temperature: -10°C to 60°C
Medium Temperature: PTFE -10°C to 100°C, POB -20°C to 250°C

Electric Actuator Parameters

Available Voltage: AC220V, AC380V, AC110V, AC24V, DC24V, DC48V, DC220V
Protection Level: IP65, IP66, IP67, IP68
Explosion-proof Grade: Ex dII BT4, Ex dII CT4
Control Method: Sourceless Switch Type, Modulating Type, Intelligent Type
Stroke Range: 0-90°, 0-180°
