(API 624 Additional High Temperature Version)

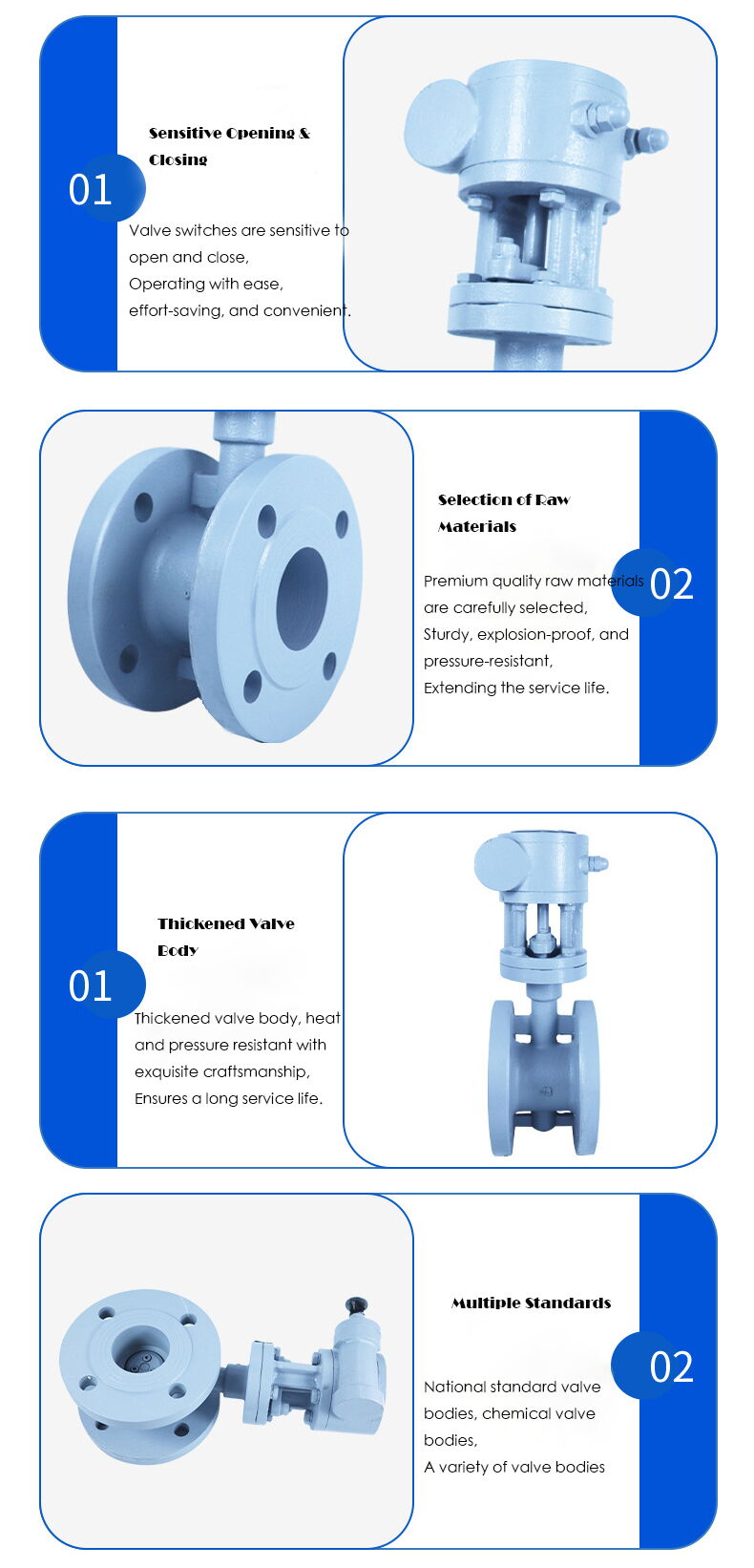

Key Specifications / Features
The Double Offset Butterfly Valve Plant specializes in manufacturing high-performance butterfly valves with a double eccentric design, adhering to API 609 Category B standards. These valves are available in a wide range of sizes from 2 to 60 inches and pressure ratings from 150 to 600 LB. The body materials include ASTM A351 CF8, CF8M, CF3, CF3M, and ASTM A216 WCB, WCC, offering versatility for various applications. These valves are suitable for industries such as oil, gas, and petrochemical, where high performance and reliability are crucial.
- Model No.: MV-20250717-BFV-01
- Hits: 3
- Categories: Cryogenic Butterfly Valve
- Tags: Double Offset Butterfly Valve, API 609 Category B Butterfly Valve, Carbon Steel Butterfly Valve
Detail Information

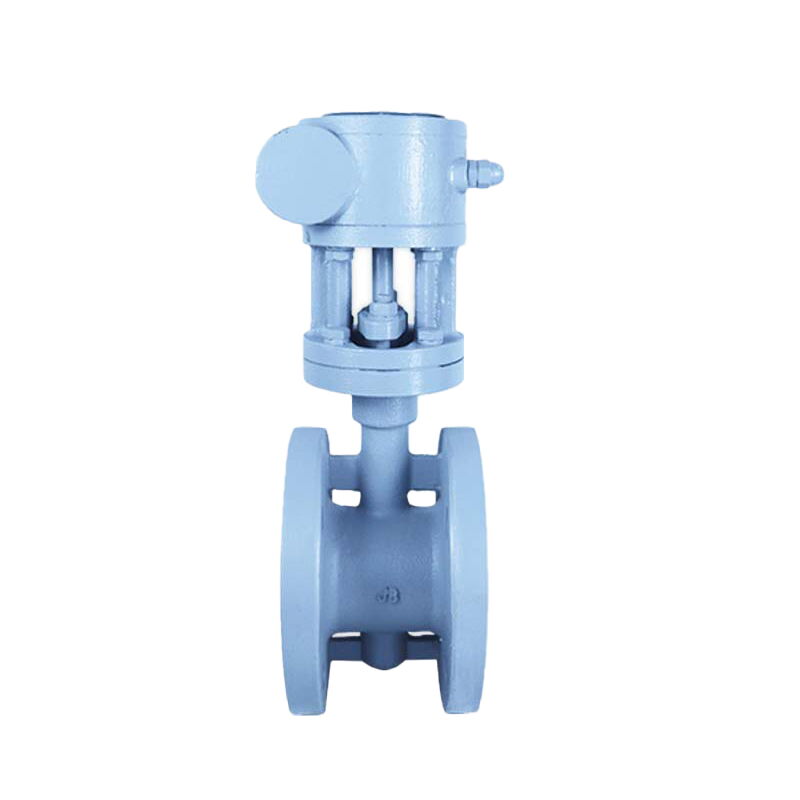

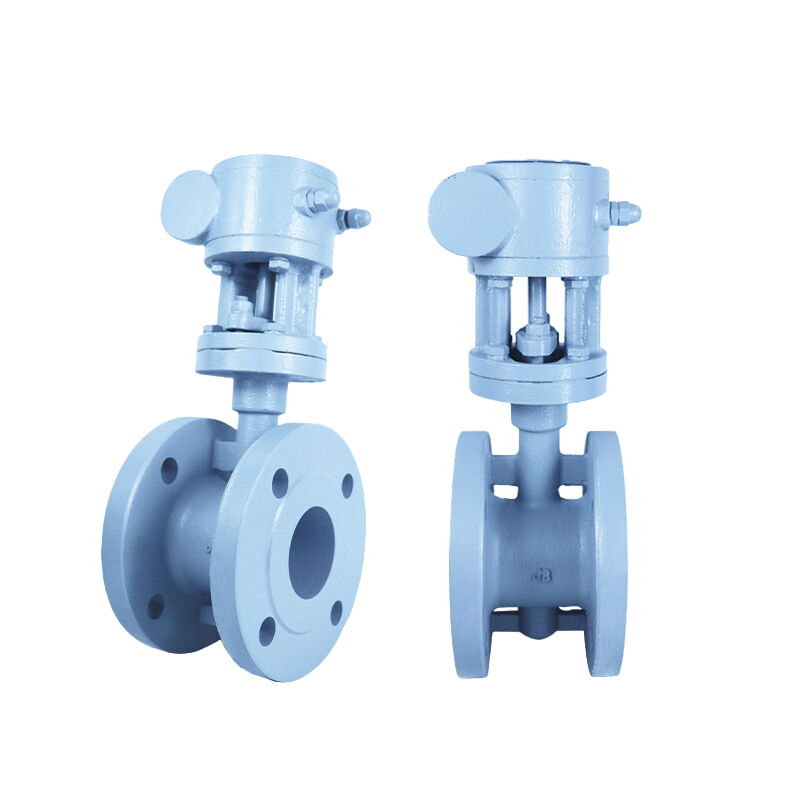

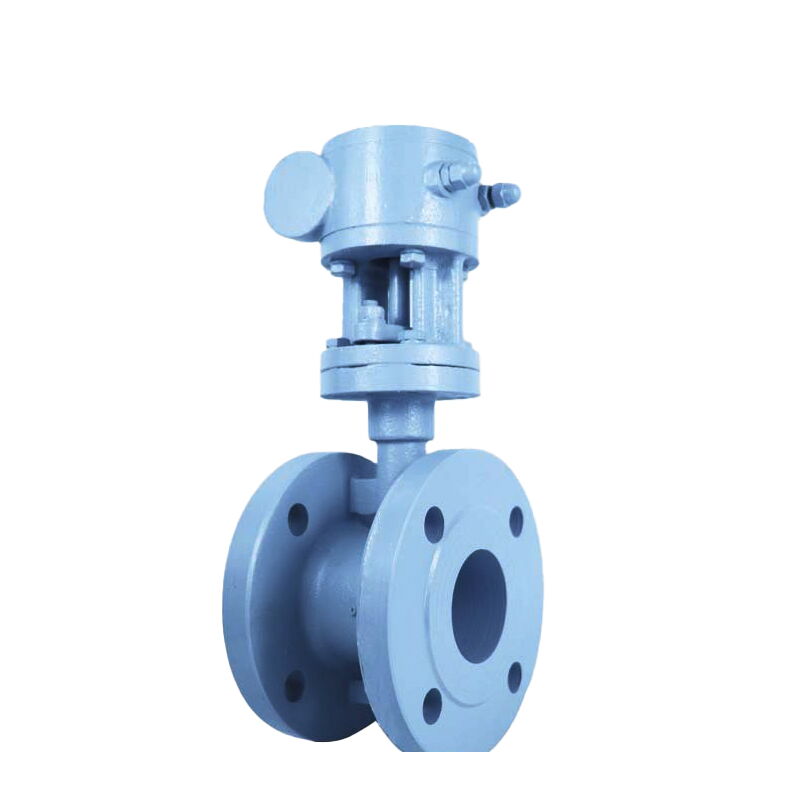

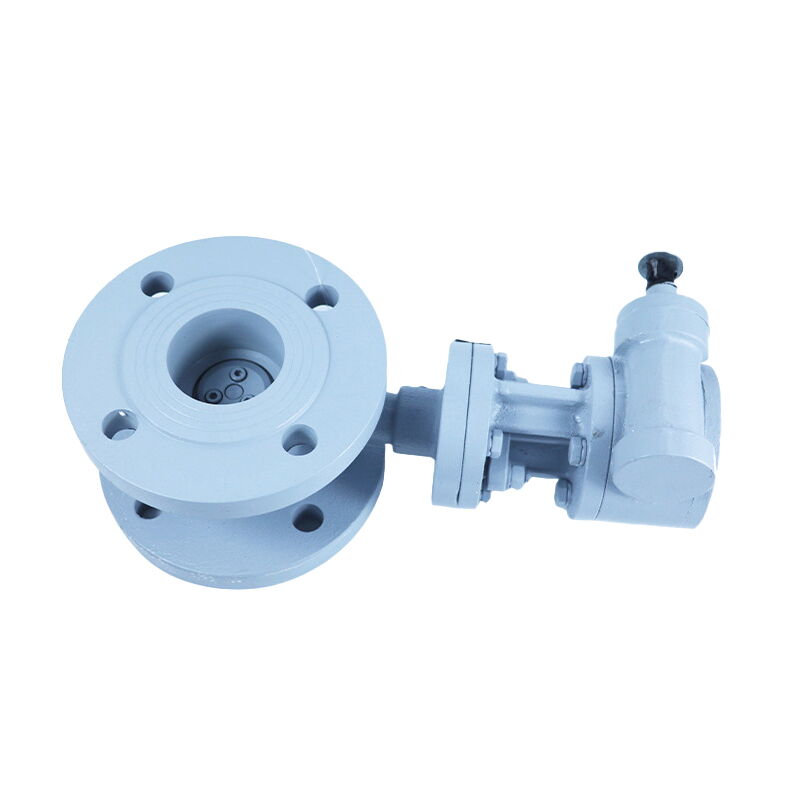

Product Name: Double Offset/Eccentric Butterfly Valve
Design Standard: API 609 Category B
Size Range: 2-60 Inch, DN50-DN1500
Pressure Rating: Class 150-600 LB, PN10–PN100
Body & Disc Material: Stainless Steel ASTM A351 CF8, CF8M, CF3, CF3M, Carbon Steel ASTM A216 WCB, WCC
Seat: SS 316L + RPTFE
Shaft: 17-4PH
Shutoff Rating: Class VI, Bubble Tight
Operation: Handle, Worm Gear, Pneumatic, Electric
End Connection: Flanged, Wafer
Temperature Range: -29°C to 150°C
Medium: Water, Gas, Oil, etc.
Similar Products

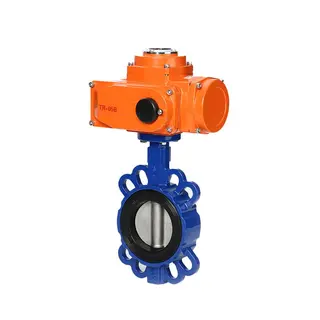

Electric Actuated Butterfly Valve, CS, SS, 1-24 Inch, CL150
