(API 624 Additional High Temperature Version)
Key Specifications / Features

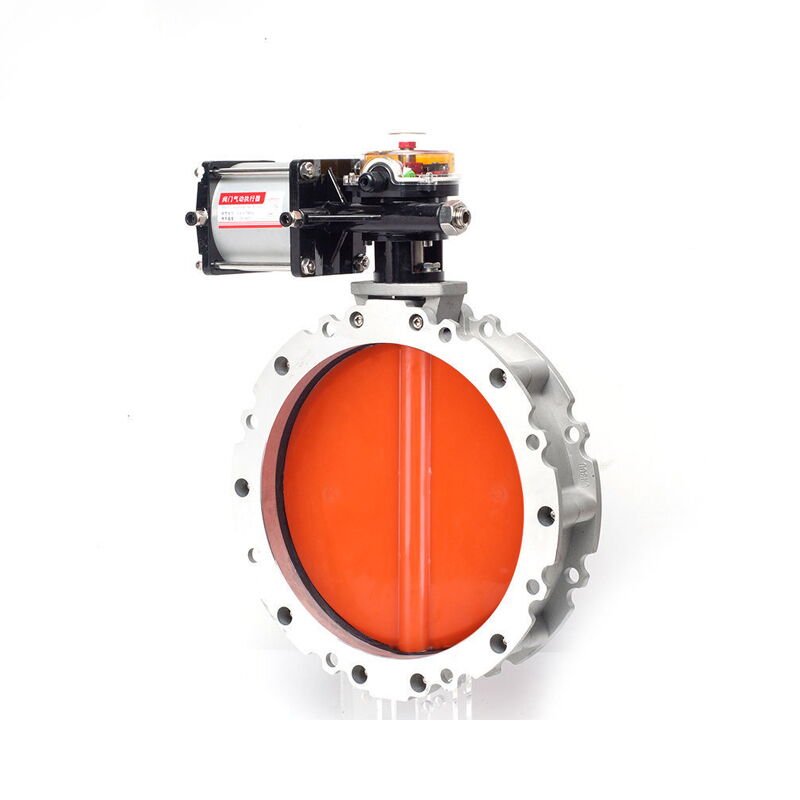

The Powder Butterfly Valve Factory in China specializes in producing high-quality butterfly valves designed for powder handling applications. These valves feature an aluminum alloy body and soft sealing technology, ensuring excellent sealing performance and durability. Available in sizes ranging from DN100 to DN400 (4 to 16 inches) and pressure ratings from PN2 to PN7, they are versatile and suitable for various industrial processes. The valves can be operated manually, pneumatically, or electrically, offering flexibility to meet different operational requirements.
- Model No.: MV-20250717-BFV-02
- Hits: 0
- Categories: Cryogenic Butterfly Valve
- Tags: Powder Butterfly Valve, Aluminum Alloy Butterfly Valve, Pneumatic Actuated Butterfly Valve
Detail Information
Product Name: Powder Butterfly Valve
Body Material: Aluminum Alloy
Disc Material: Stainless Steel
Size Range: DN100-DN400, 4-16 Inches
Working Pressure: 2-7 Bar, PN2-PN7

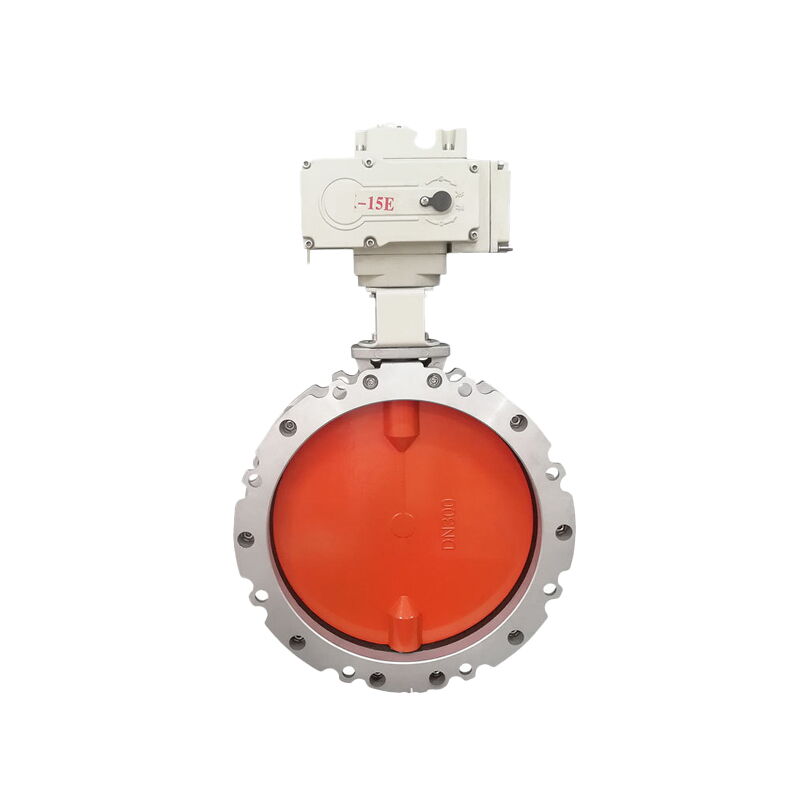

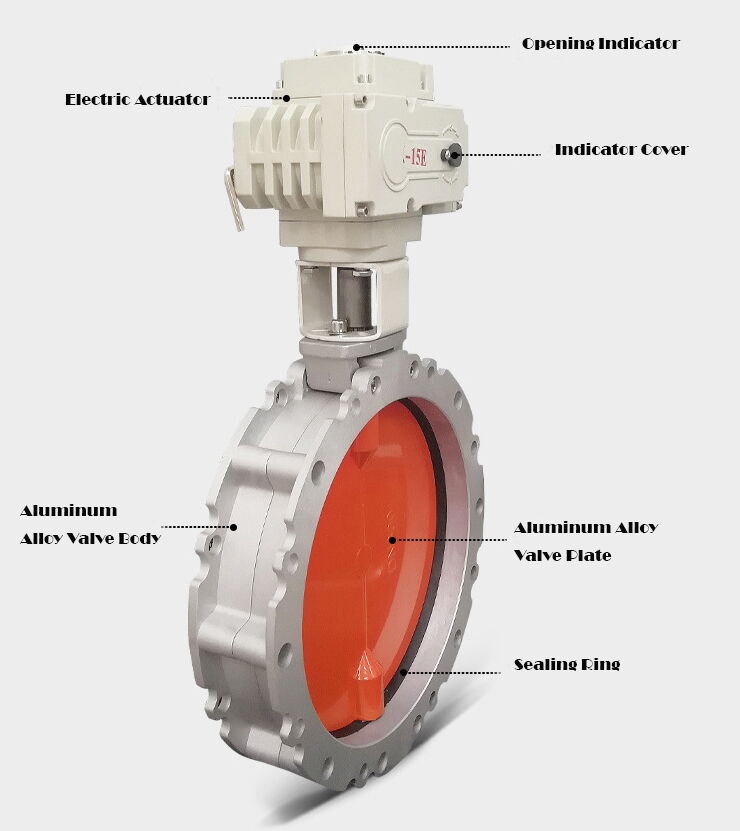

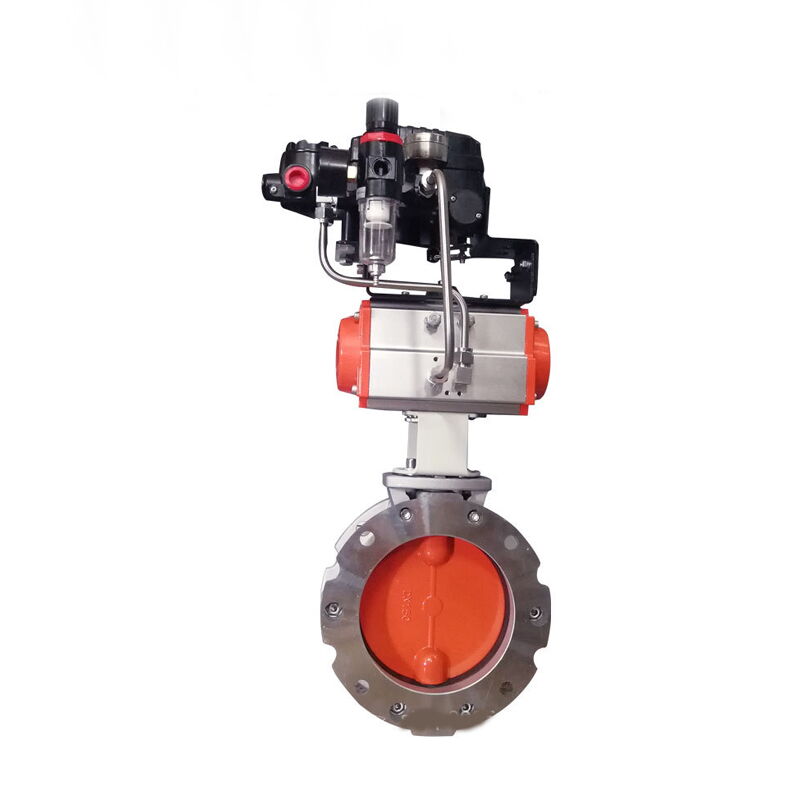

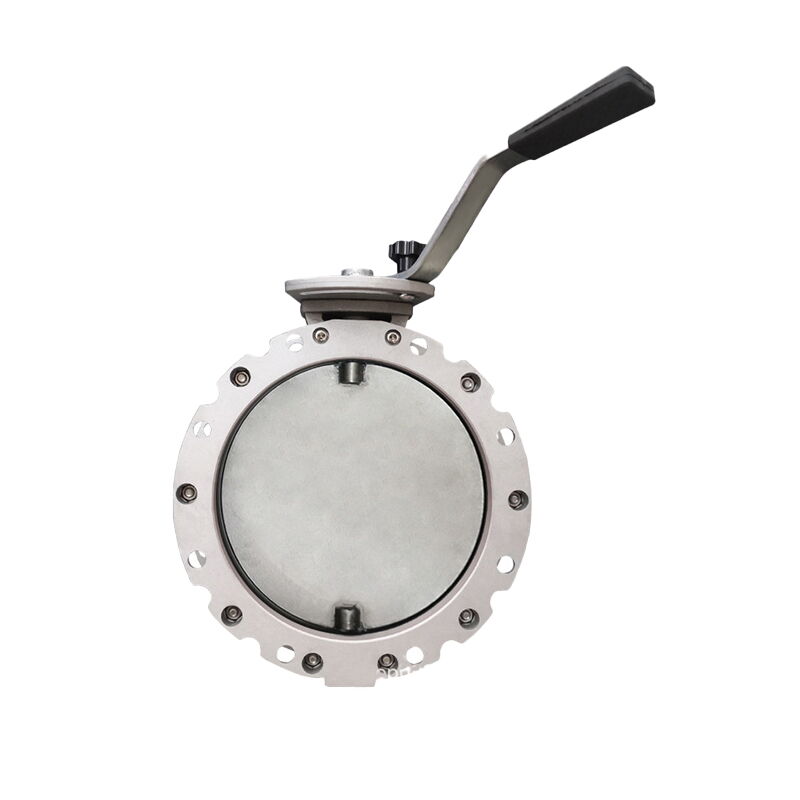

Operation: Manual, Pneumatic, Electric
Seal Type: Soft Sealing
End Connection: Flanged
Temperature Range: -40°C to 120°C
Medium: Cement, Powder

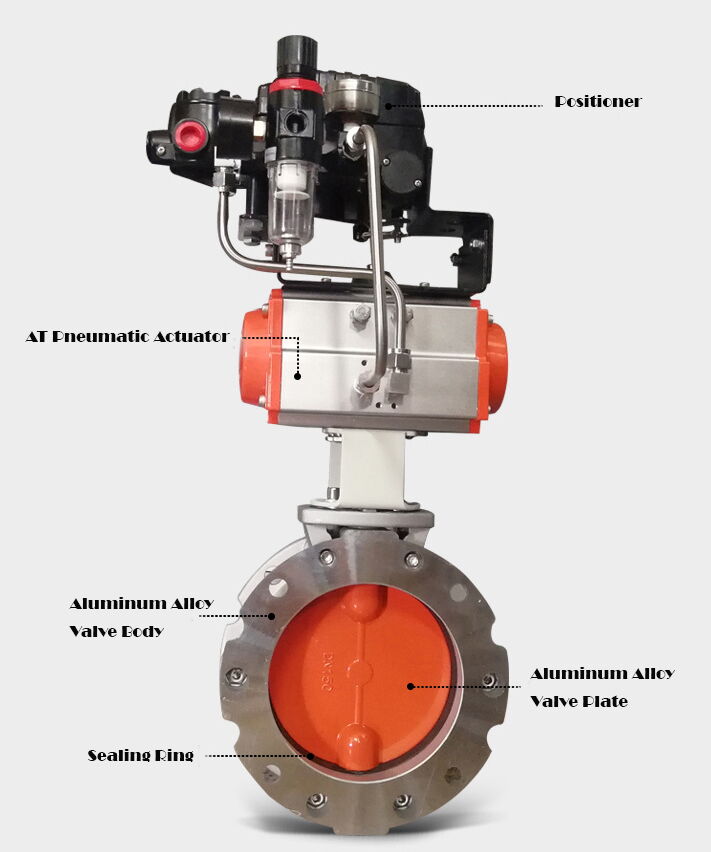

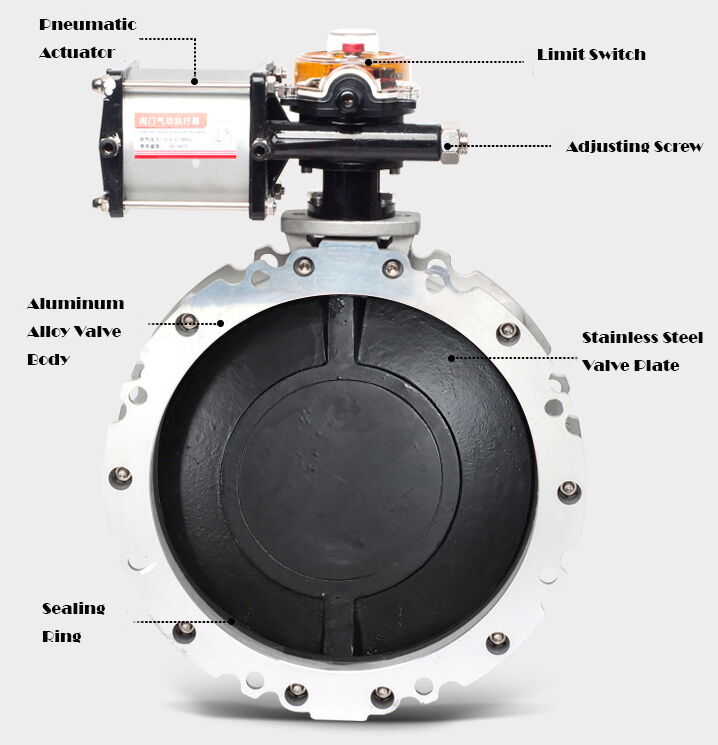

The dust butterfly valve is a unique design crafted by our company to operate with a cylinder and an aluminum alloy butterfly valve. The valve body is made from high-pressure aluminum alloy, and it features wear-resistant polymer composite butterfly plates. This valve is perfect for sealing hoppers and silos containing powdery or granular materials. It's commonly utilized in cement and concrete mixing stations, as well as in the transportation of steel gravity dust. Due to its special structural design and the use of engineering materials, it remains an economical and efficient choice.
