Rubber Lined Butterfly Valve, DI, CS, SS, 1.5 - 32 IN, CL150

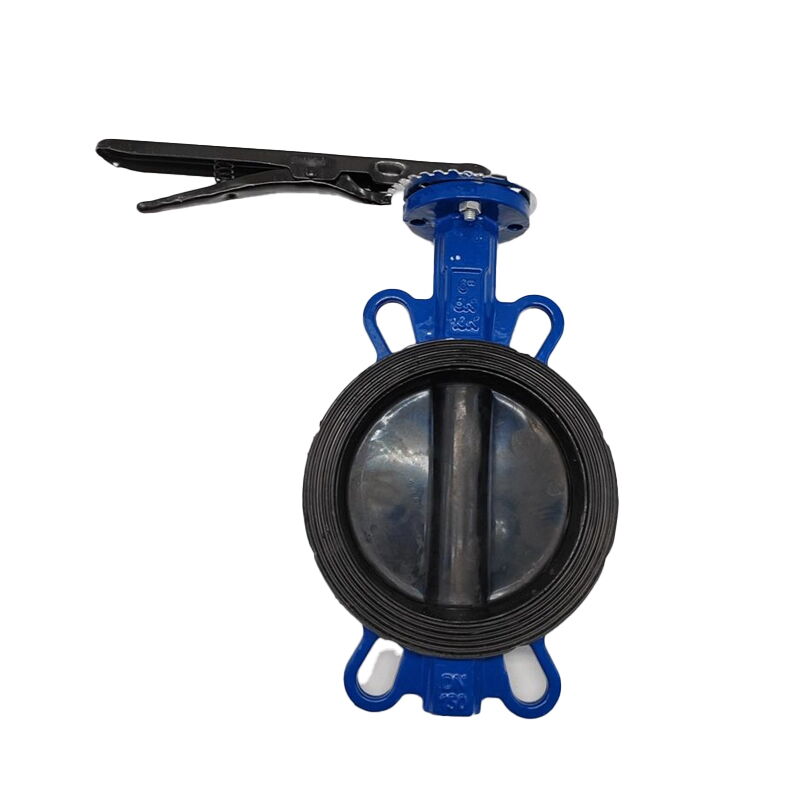

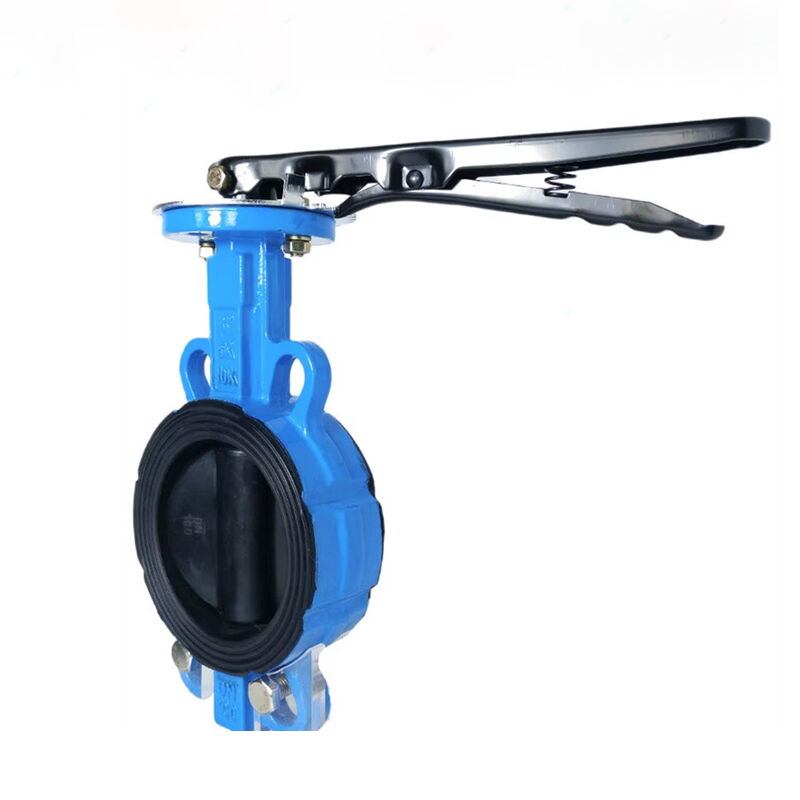

Product Name: Full Rubber Lined Wafer Butterfly Valve
Body Material: Ductile Iron, Carbon Steel, Stainless Steel
Nominal Diameter: DN40-DN800, 1-1/2 - 32 Inches
Pressure Range: 1.0-1.6MPa, PN10-PN16, Class 150 LB
End Connection: Wafer

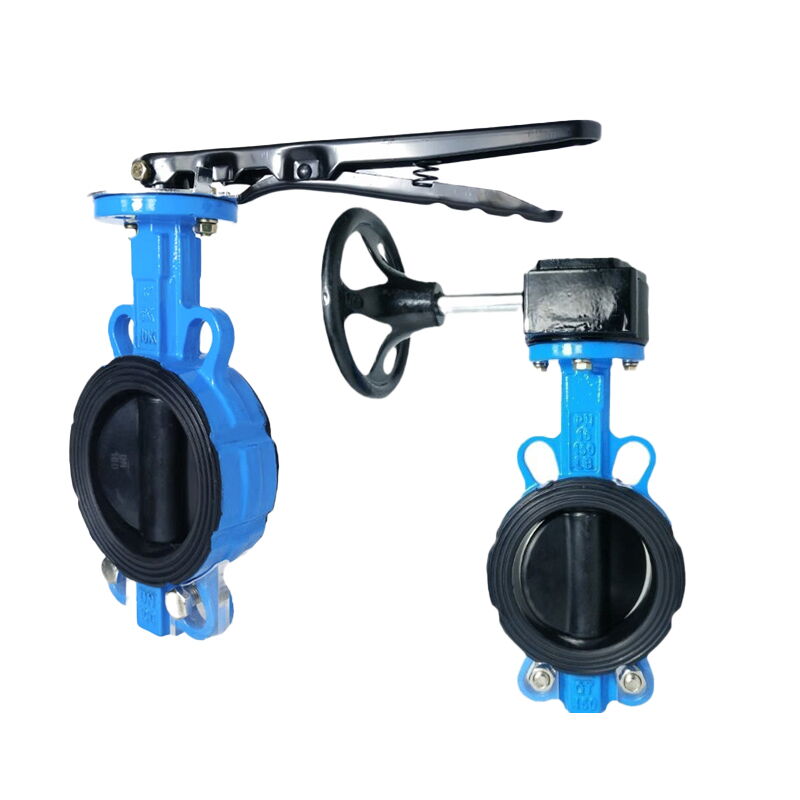

Actuation Method: Manual, Worm Gear Actuator, Pneumatic Actuator, Electric Actuator
Applicable Media: Air, water, sewage, steam, coal gas, oil, etc.

The full rubber lined butterfly valve is composed of a rubber sealed butterfly valve and carbon steel or stainless steel valve plate and stem. It is suitable for regulating flow and cutting off media in pipelines at temperatures 80°C to 120°C, such as in food, pharmaceutical, chemical, petroleum, electric power, light industry, papermaking, etc.

Main Features

1. Simple design, reasonable structure, light weight, and fast operation.

2. Small torque, convenient operation, and labor-saving.

3. Can be installed in any position for easy maintenance.

4. The sealing element can be replaced, and the sealing performance can achieve bidirectional sealing without leakage.

5. The sealing material is resistant to aging and has strong corrosion resistance, with a long service life.

Manufacturing Standards

Design Standard: GB/T 2238-1989
Structural Length Standard: GB/T 12221-1999
Structural Length Standard: GB/T 9113.1-2000, GB/T 9115.1-2000, JB/T 78
Pressure Test Standard: GB/T 13927-1992, JB/T 9092-1999

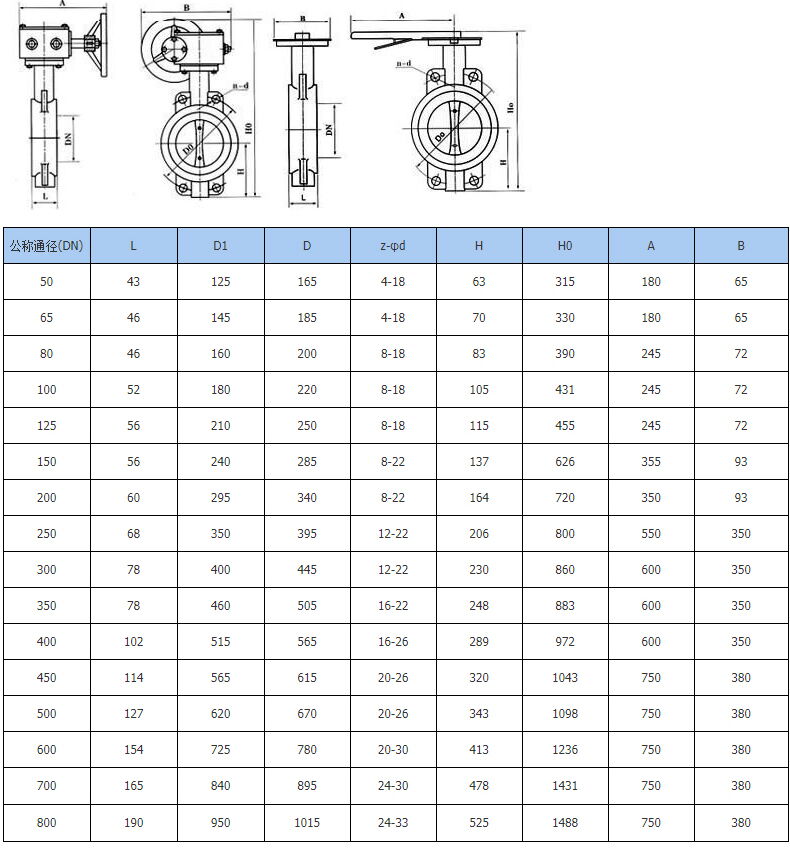

Main Technical Parameters

Sealing Material Selection and Applicable Temperature
